Warthog Armoured All Terrain Vehicles (ATV)

Ref: 50490

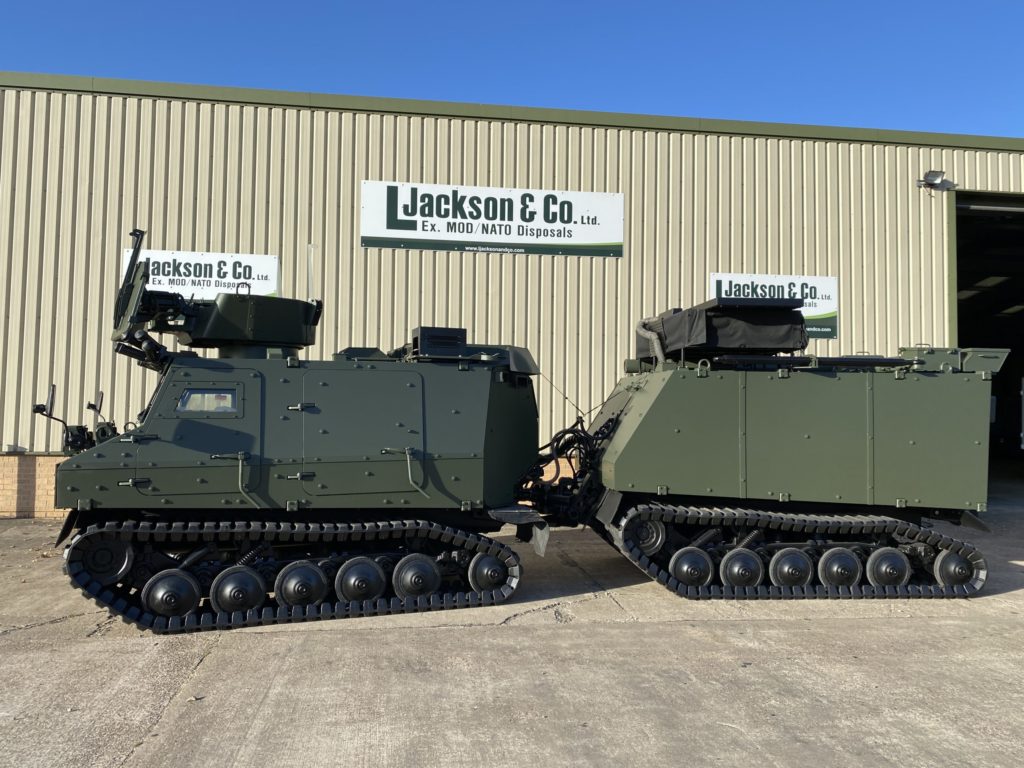

Warthog Armoured All Terrain Vehicles (ATV) Troop Carrying Variant (TCV)

Warthog is an all terrain amphibious twin module four track driven armoured vehicle that can be configured to meet a range of requirements.

The vehicle has been designed to give high protection, huge payload capacity and all terrain mobility. It has a capacity to carry a crew of 12.

The vehicle has the capacity to carry a payload of over 5t. its swimming features require it to be less prepared and the compact trim vane does not obstruct driver’s vision. In water it can travel at a speed of 5km/h.


Vehicle Specification:

Body design - Front and rear module, high strength steel with protection system


Cruising Range - 400 Km

Maximum road speed - 60 Km/hr

Fuel consumption - 1.10 litres/km

Maximum gradient - 60%

Maximum side slope - 30%

Maximum vertical obstacle - 0.8M

Trench - 1.5M

Steering Radius - 10M

Front towing attachment ( max towing load) 30 Tonnes

Rear towing pintle (max towing load) 30 Tonnes

Maximum fording depth 1.5M


Engine Type - Caterpillar C7 350 BHP, 6 cylinder, 4 stroke turbo charged

Transmission Type - Allison MD3500 fully Automatic 6 speed

Cooling system - Liquid and air cooled


Air conditioning is provided for the front and rear modules

A heating system is provided in the front and rear module designed to provide heating between 10-40 degrees


These vehicles are one of the latest tracked armoured all terrain vehicles on the market today and are in excellent condition with some vehicles been reserve having never been operated

Support, training and spare parts are available to offer the complete package

These are available and offered subject to export licence and end user criteria

A total of 75 units are available ex stock laying at the rocket site, misson Doncaster





QTY Available: 75


Category Armoured
Manufacturer ST Kinetics
Engine Caterpillar C7 350 BHP 6 Cylinder Turbo Charged
Gearbox Allison MD3500 fully automatic 6 speed
Steering Centre Articulation
Tyres Soucy Tracks and wheels
Max Load
Electrics 24 V
Length 8.6M
Height 2.9M
Width 2.3M
Date into service
Year of manufacture 2010-2011
Qty Available 75
Export requirements more SIEL Licence Required
