Mercedes Benz G Wagon 250 Soft Top

Ref: 50498

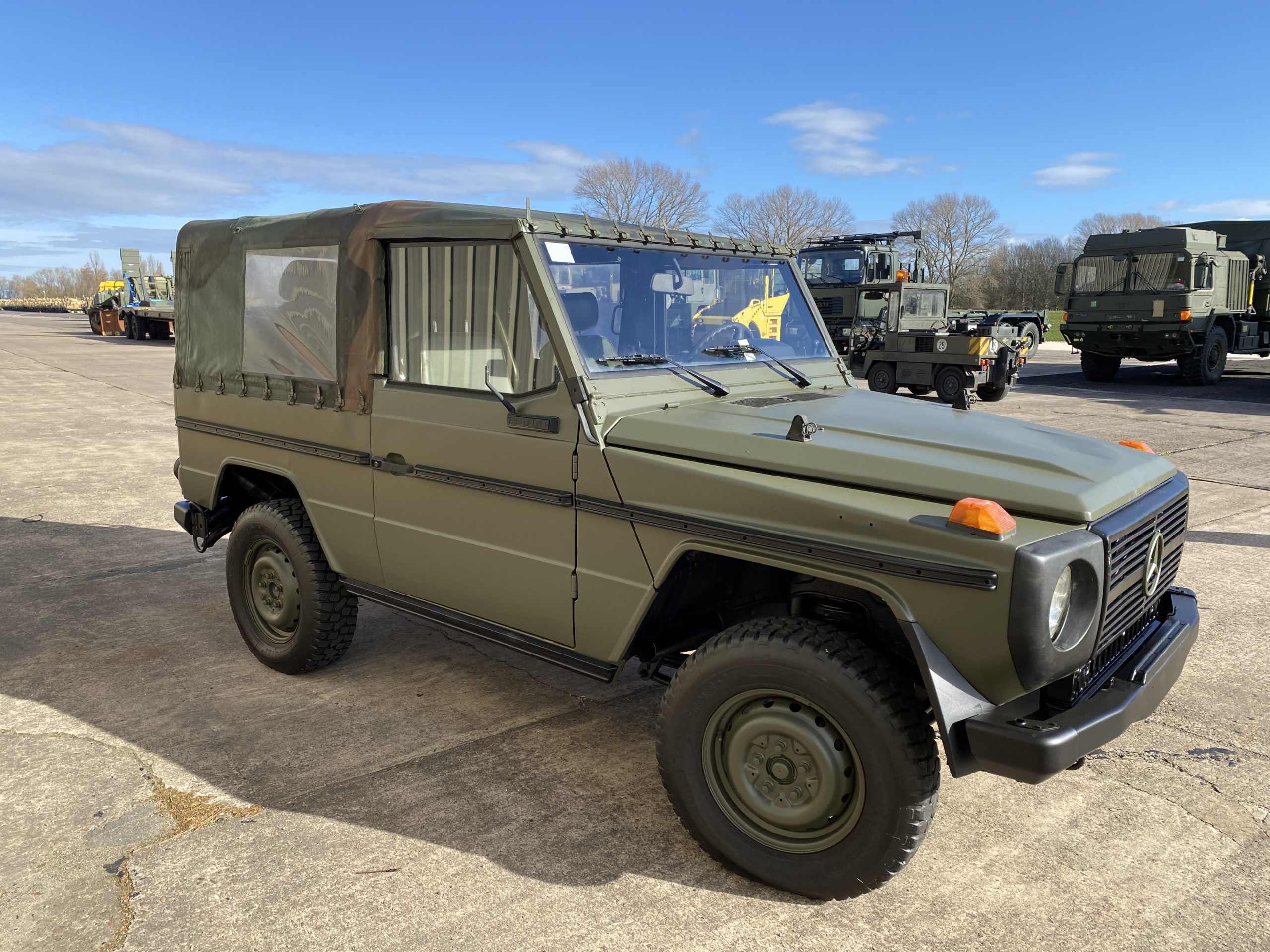

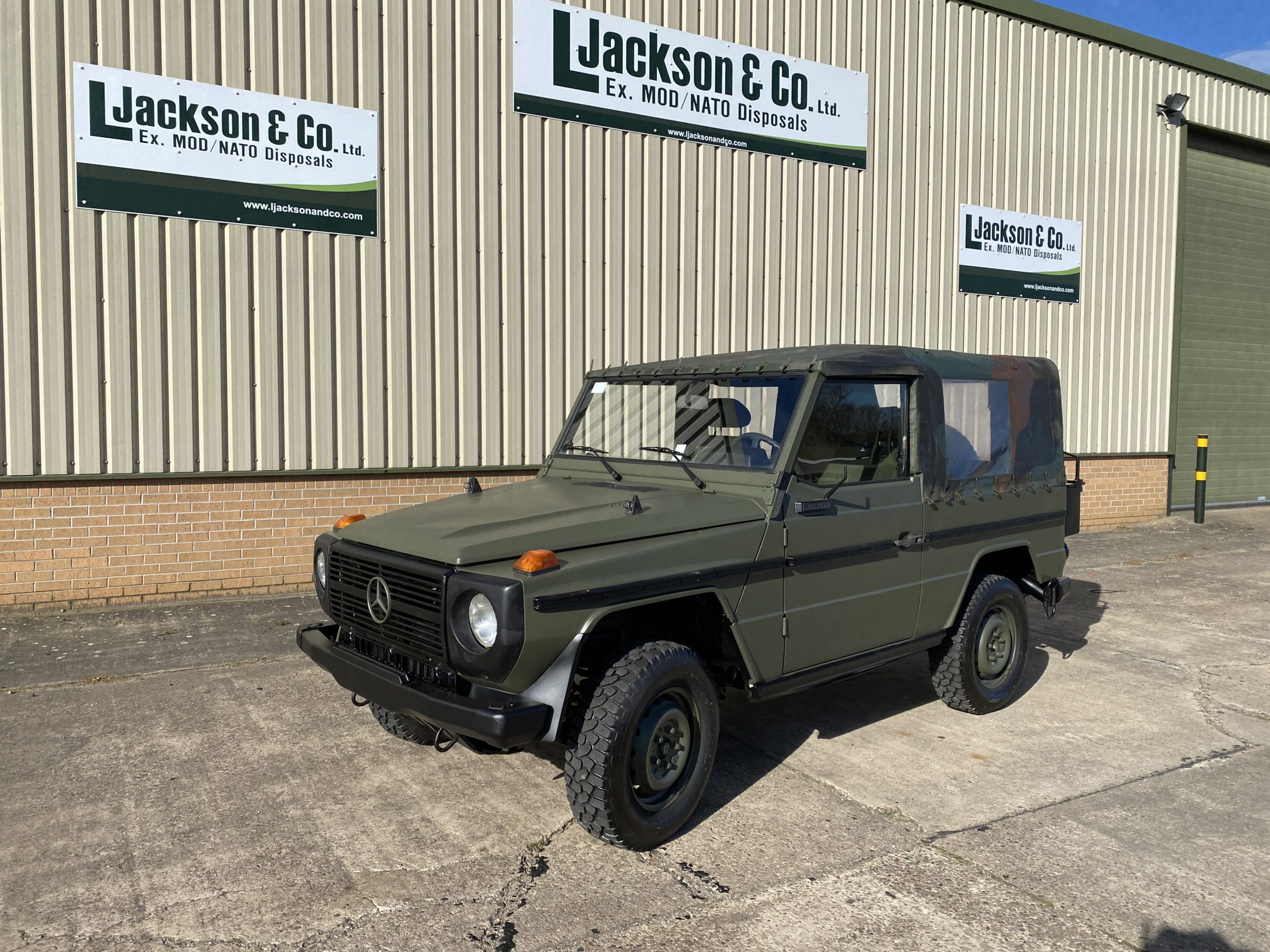

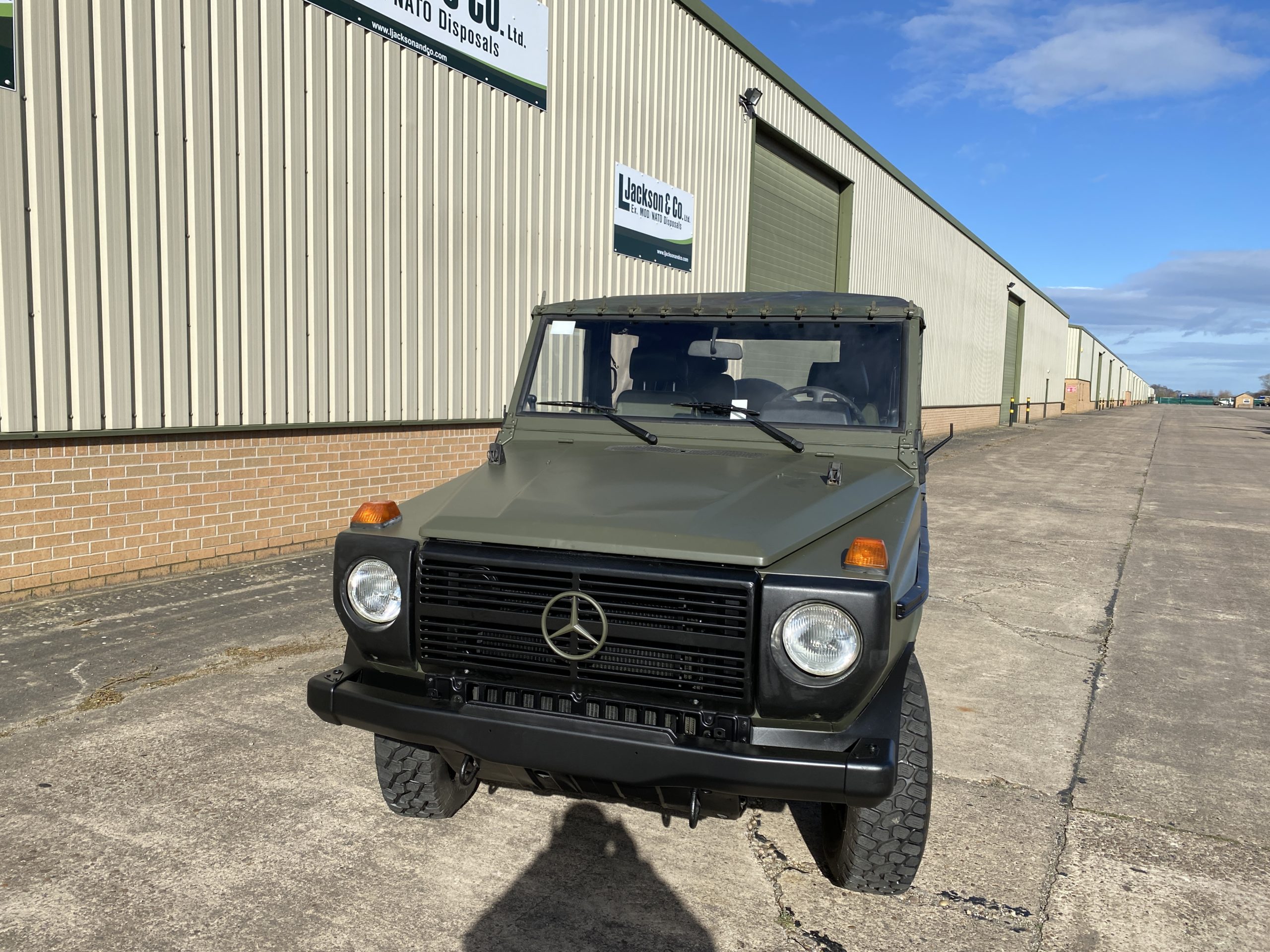

Mercedes Benz G Wagon 250 Soft Top

This vehicle is available direct from the military in excellent condition. The vehicle has been prepared through our workshops and repainted

The G is the name is short for Gelandewagen (or cross-country vehicle / tough terrain vehicle) and was Mercedes first venture into general four-wheel drives

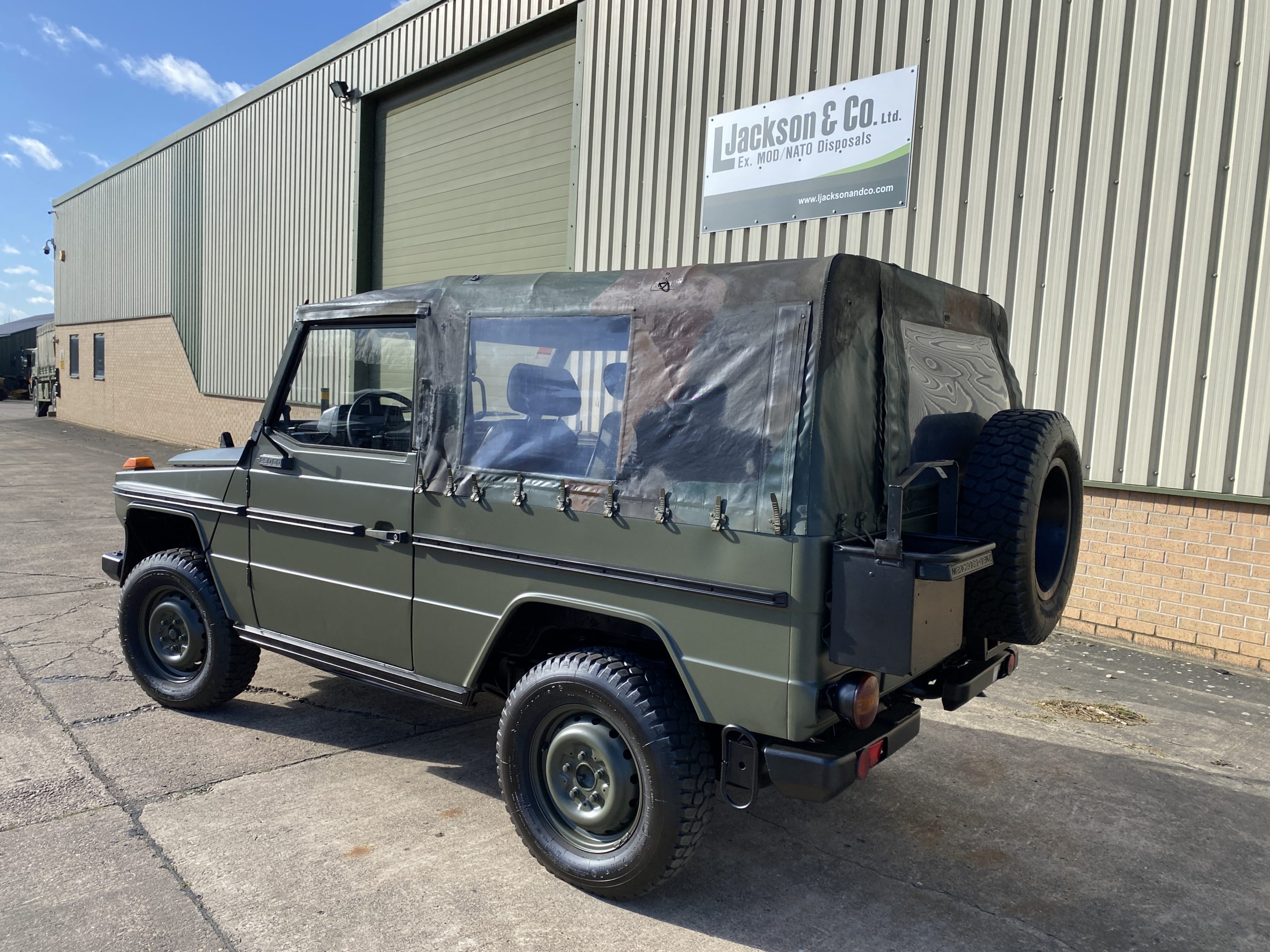

The vehicle canopy can be removed or folded along with a folding windscreen.

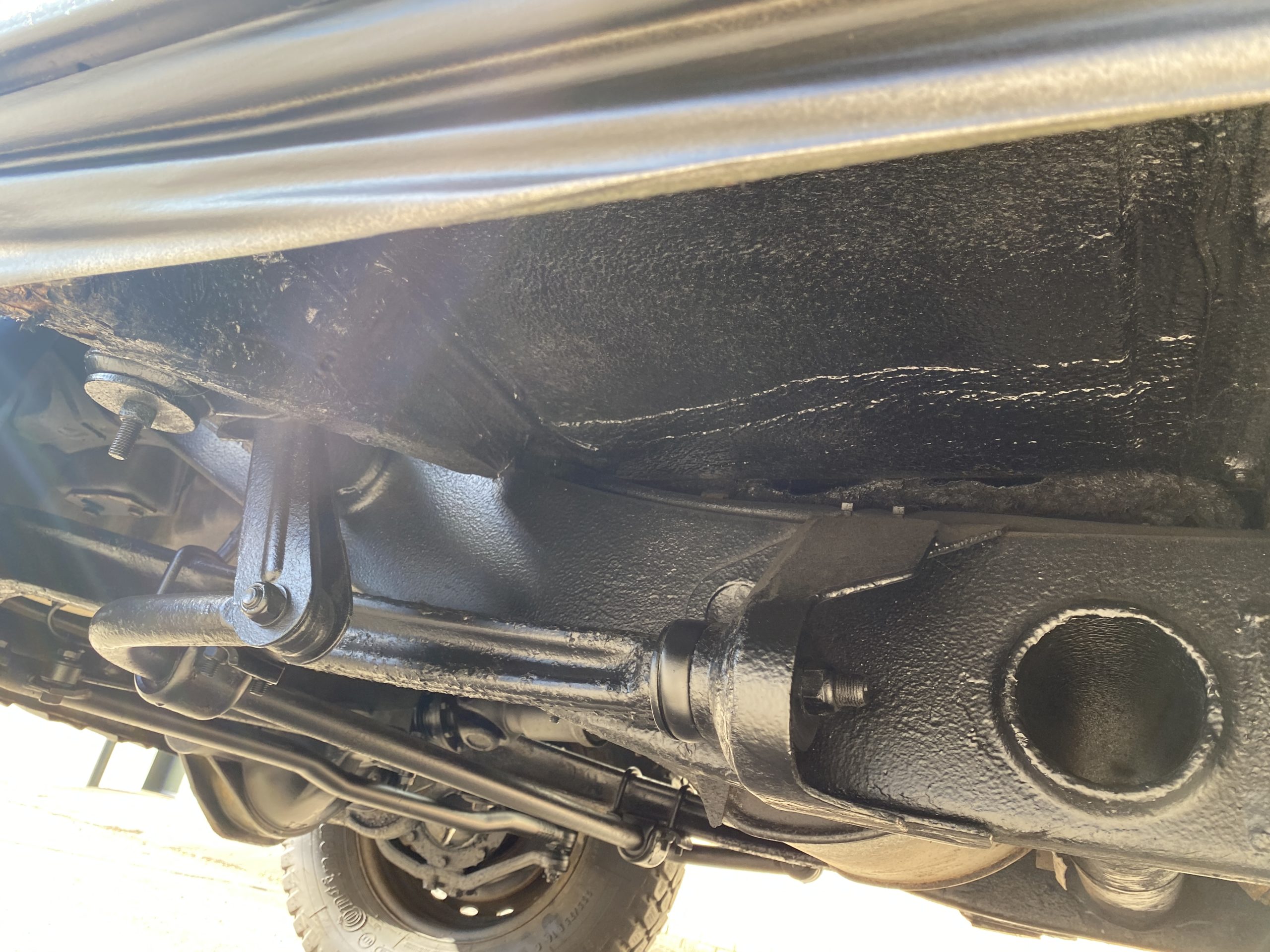

The same chassis frame design is used for both short and long wheelbase versions. They have closed box shaped side members in conjunction with tubular cross members, providing high bending and torsional stiffness in a ladder type frame to which the noise insulated bodywork is attached by rubber mountings. The frame is corrosion protected and is also waxed and sealed.

Engine output is transmitted to the wheels using an all synchromesh five speed manual gearbox and a two shaft transfer case. The four wheel drive can be engaged when the vehicle is either stationary or moving. The cross country ratio can be engaged and disengaged when driving, to double the power to the wheels and reduce speed by half. The 100 per cent locking differentials on the front and rear axles can be engaged and disengaged individually during travel.

Payload for the 250GD version is 700 Kg's

Wheelbase; 2.4 M

Ground Clearance: 0.24 M

Fuel capacity: approx 96 litres

Max gradient: 80%

Fording: 0.6 M

Power assisted steering



QTY Available: 1

£ POA

Category 4x4's
Manufacturer Mercedes

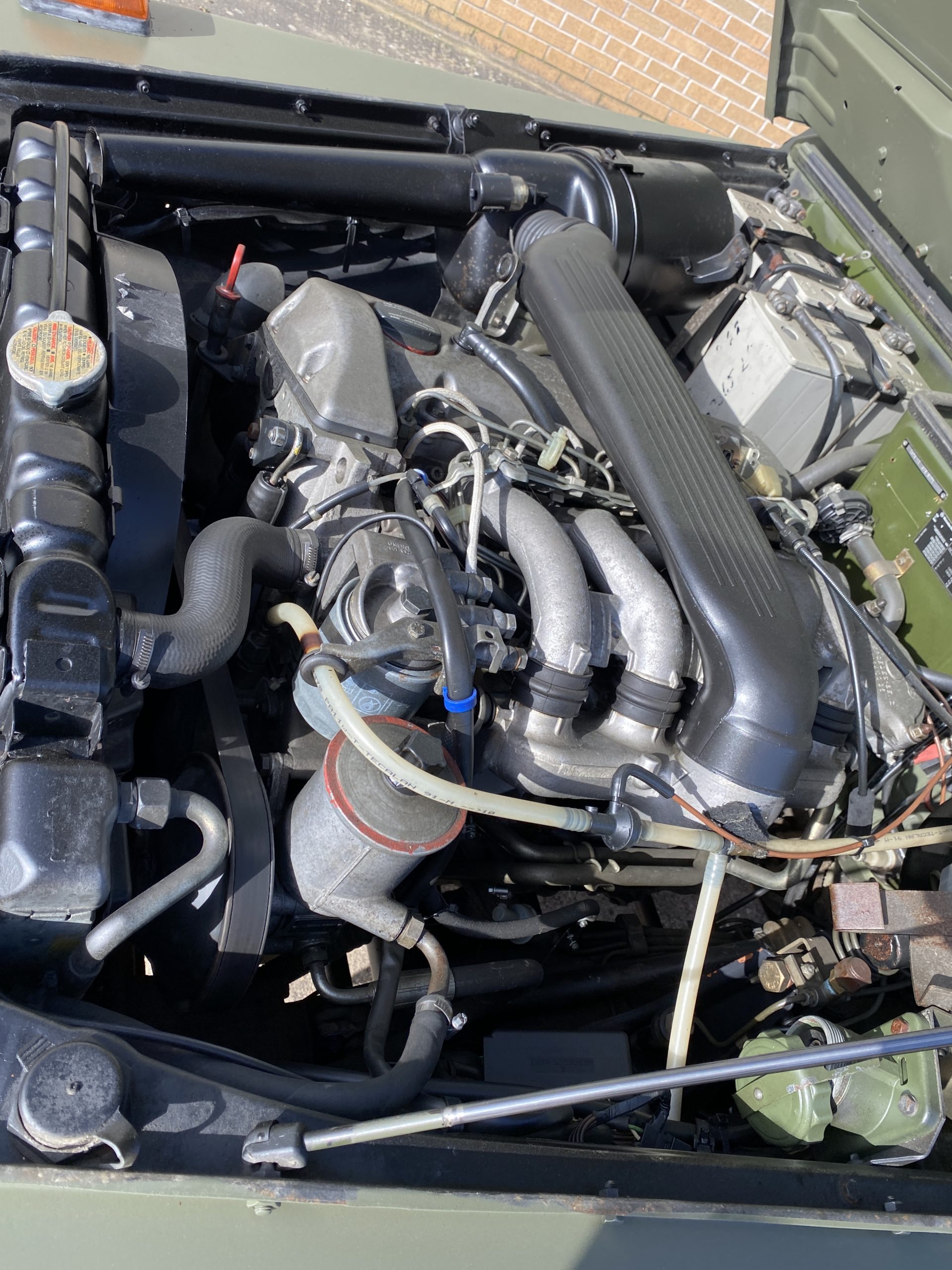

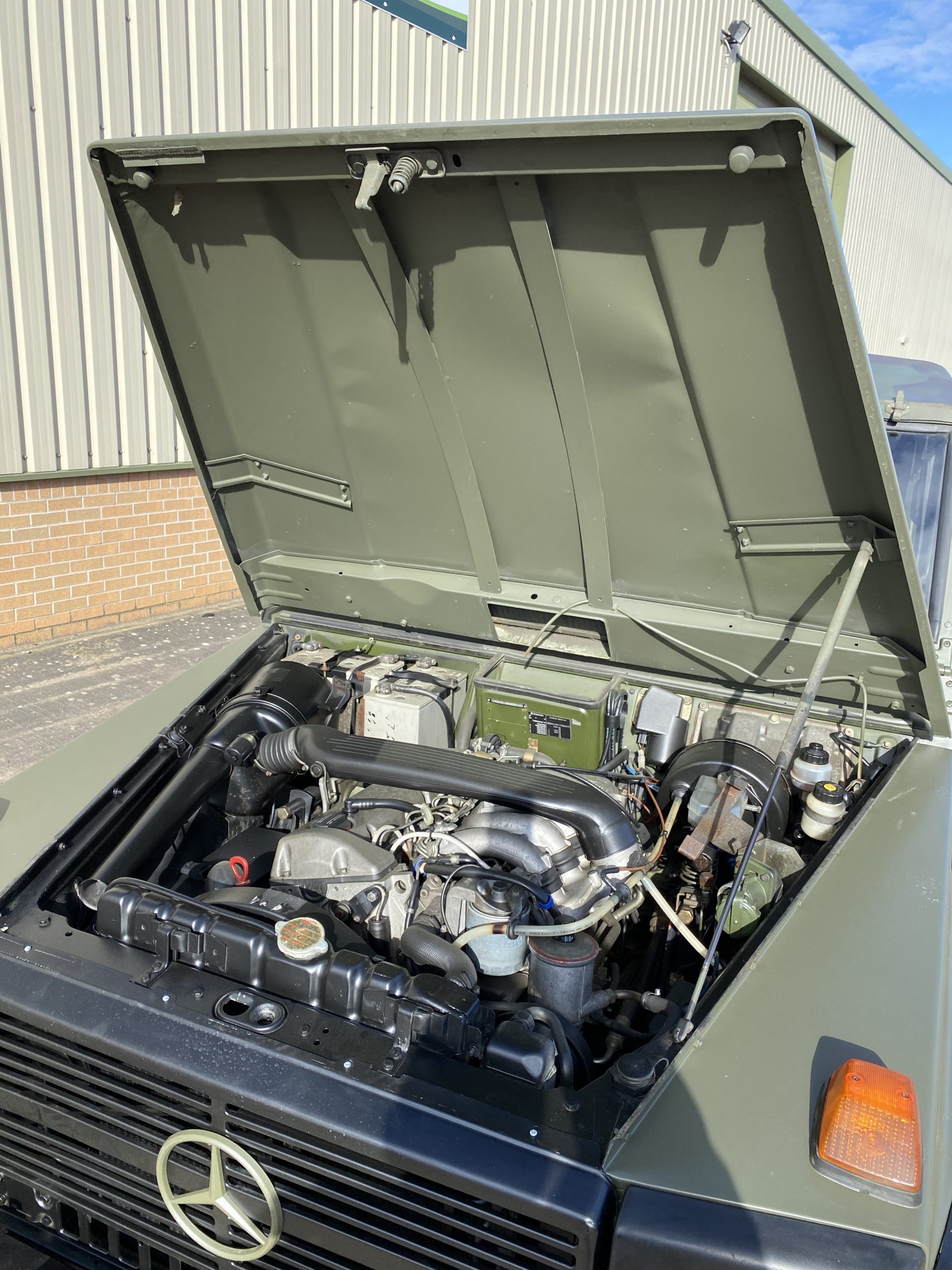

Engine OM602 92 HP 2.5 litre diesel
Gearbox 5 speed manual
Brakes Drum brakes

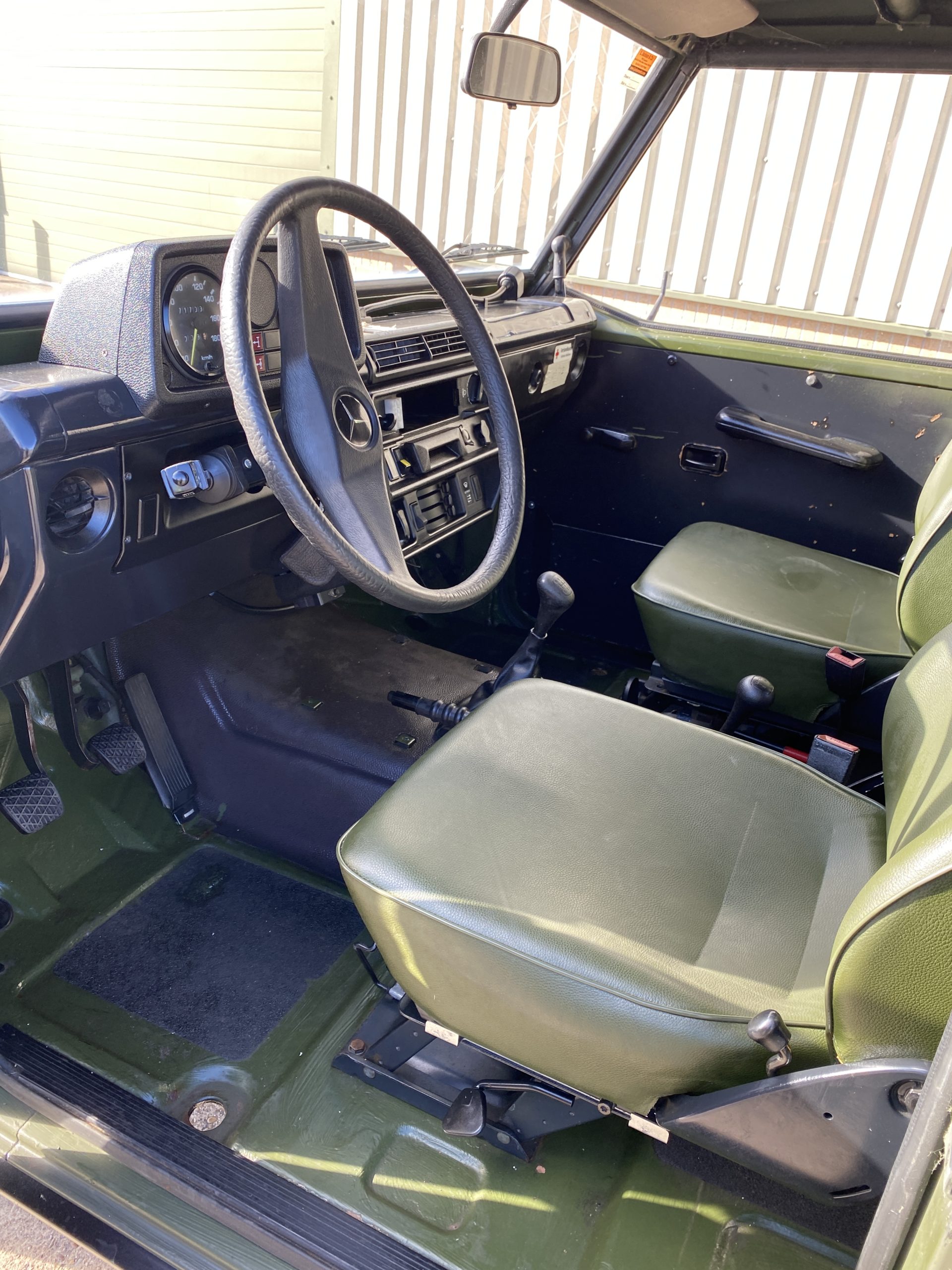

Steering Power steering LHD
Tyres 225/75R16
Max Load 700 kg's
Electrics 24 volts
Length 4.5M
Height 1.85M
Width 1.7M
GVW 2,950 Kg
Hrs_Kms
Date into service
Year of manufacture 1992
Qty Available 1
Export requirements more SIEL Licence Required
