MAN HX60 18.330 4×4 Cargo Winch Truck

Ref: 50329

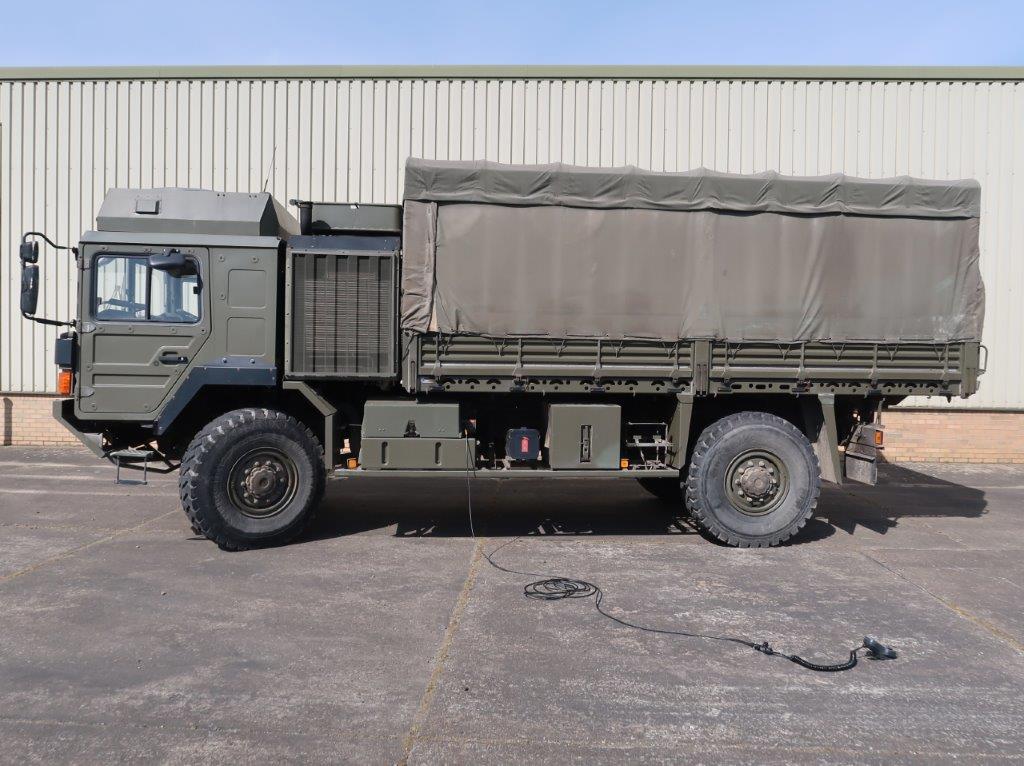

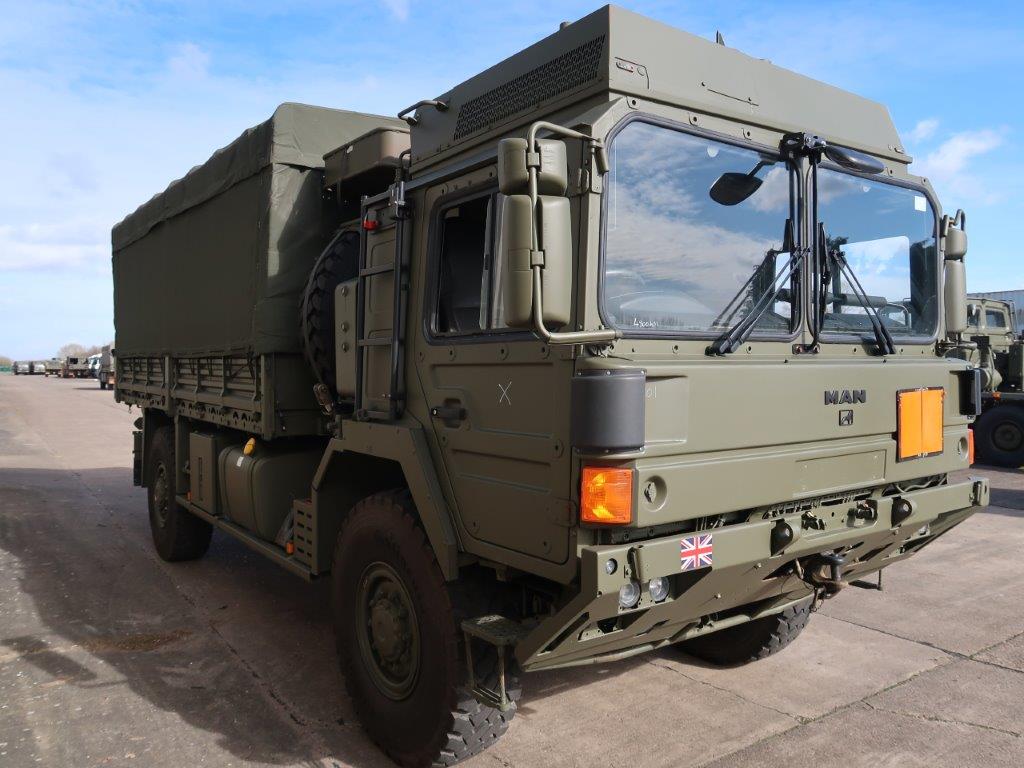

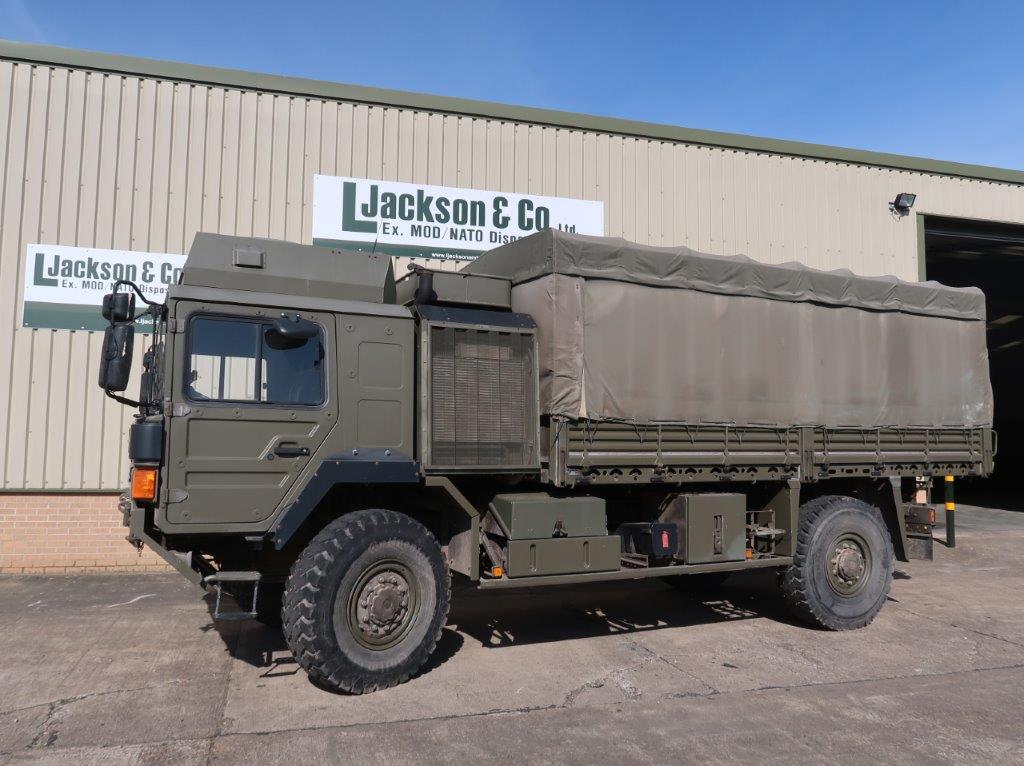

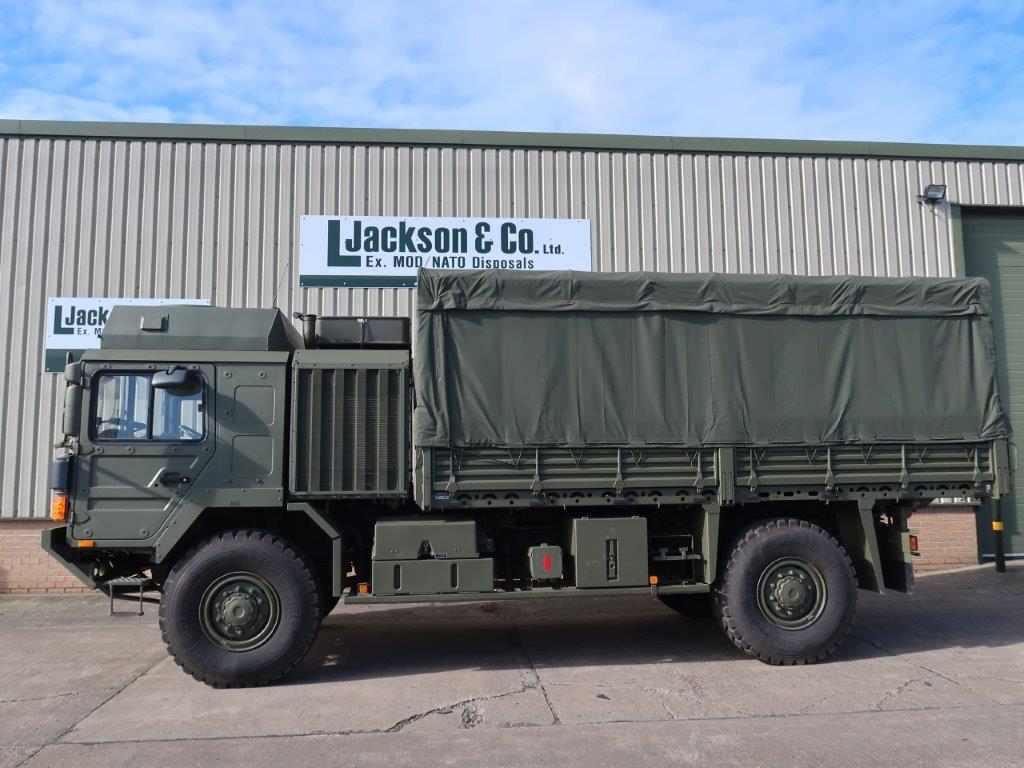

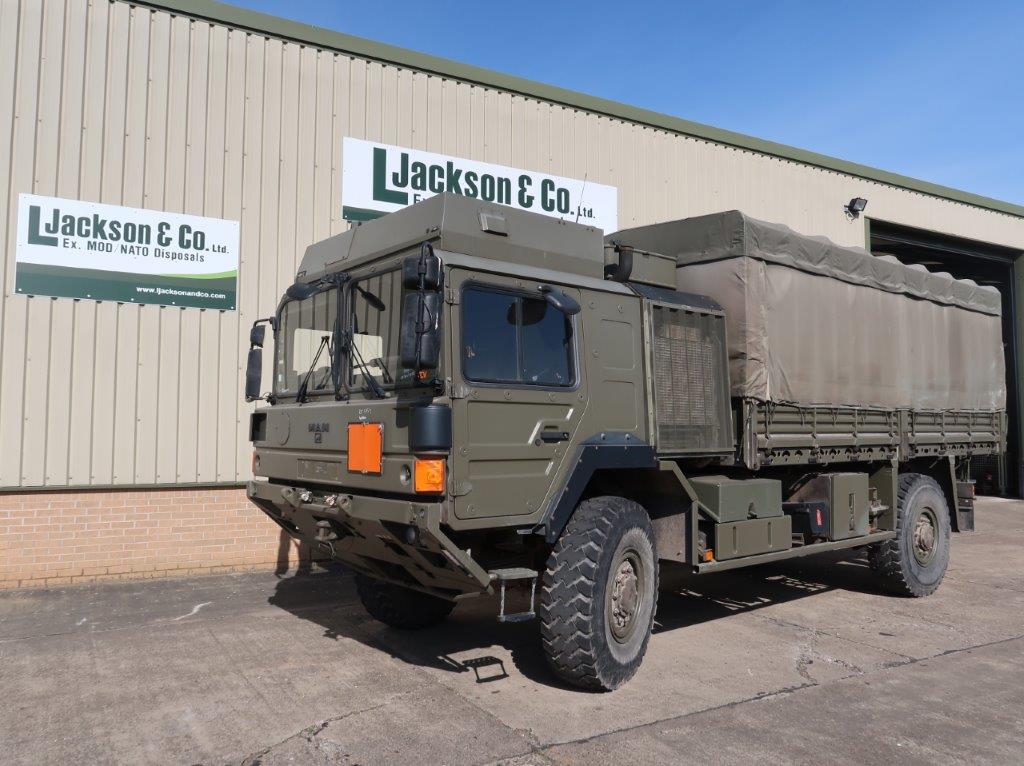

MAN HX60 18.330 4x4 Cargo Winch Truck

Direct from the military these are the latest current in service cargo vehicles used by the military today

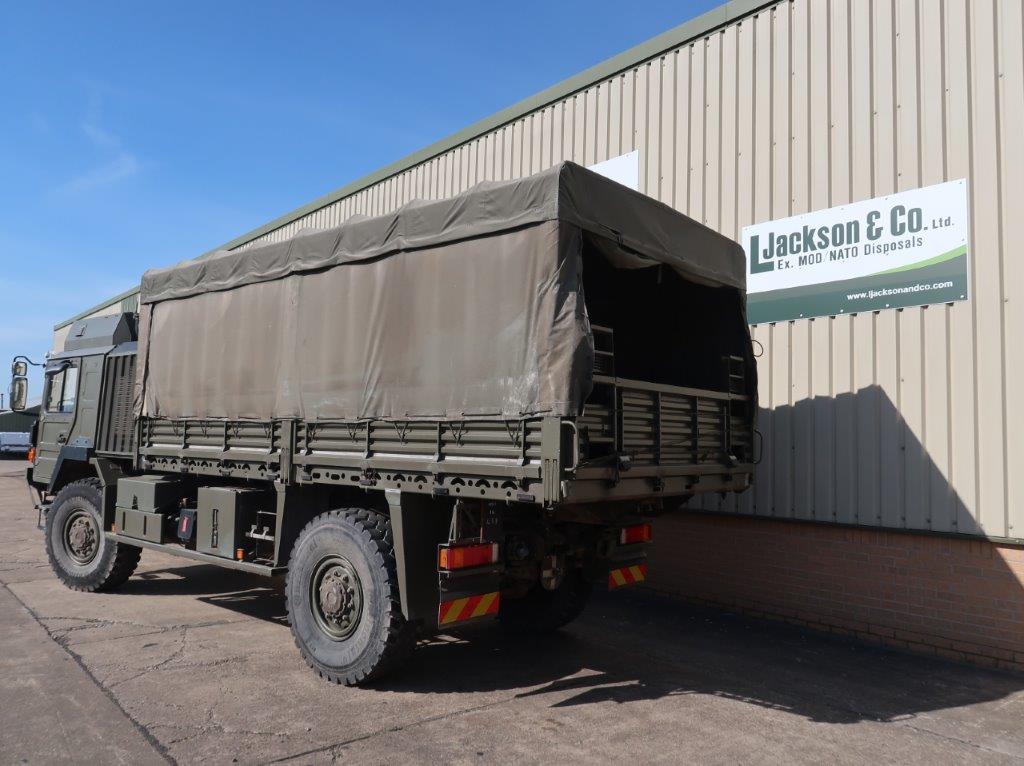

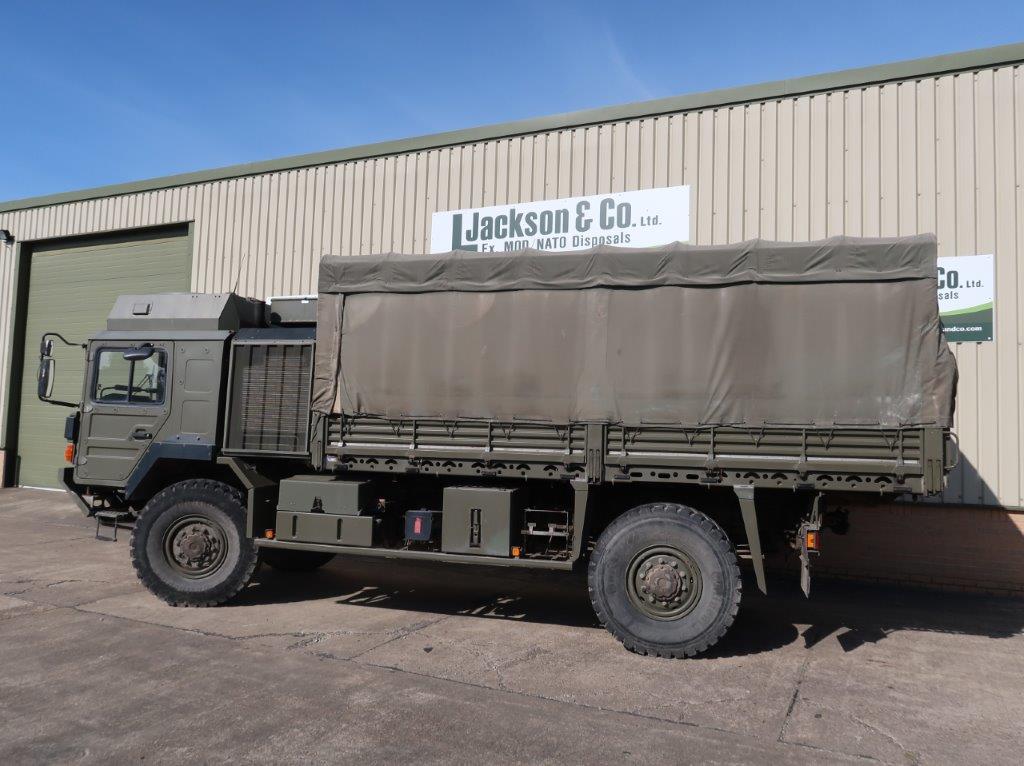

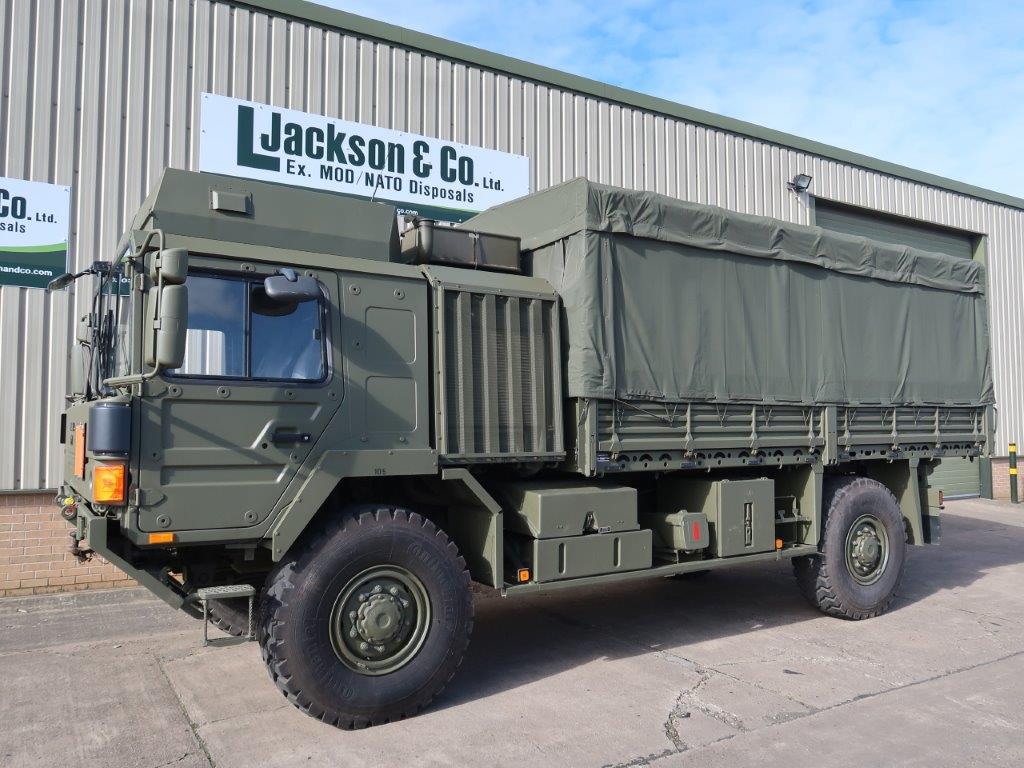

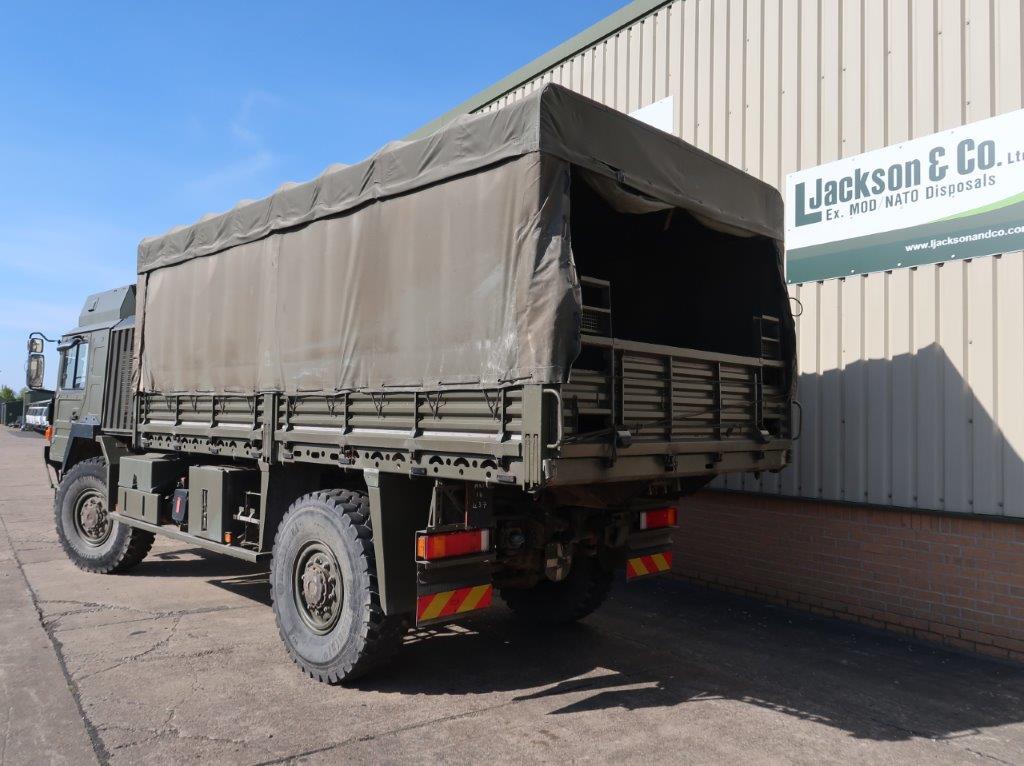

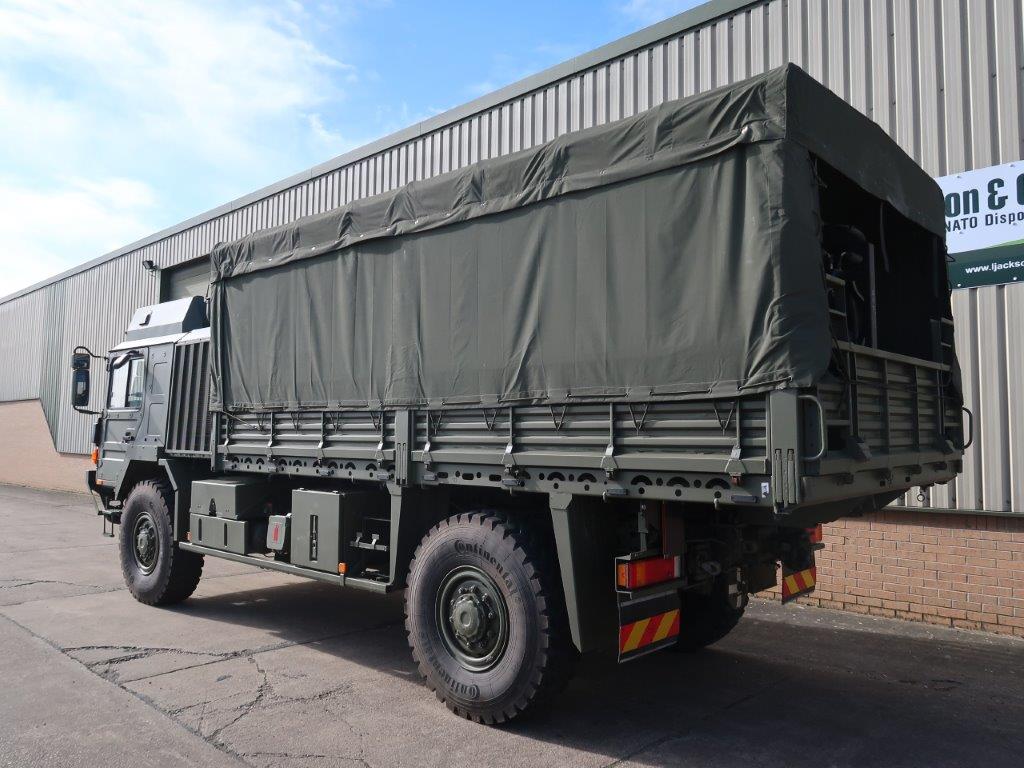

Drop side cargo body with canopy

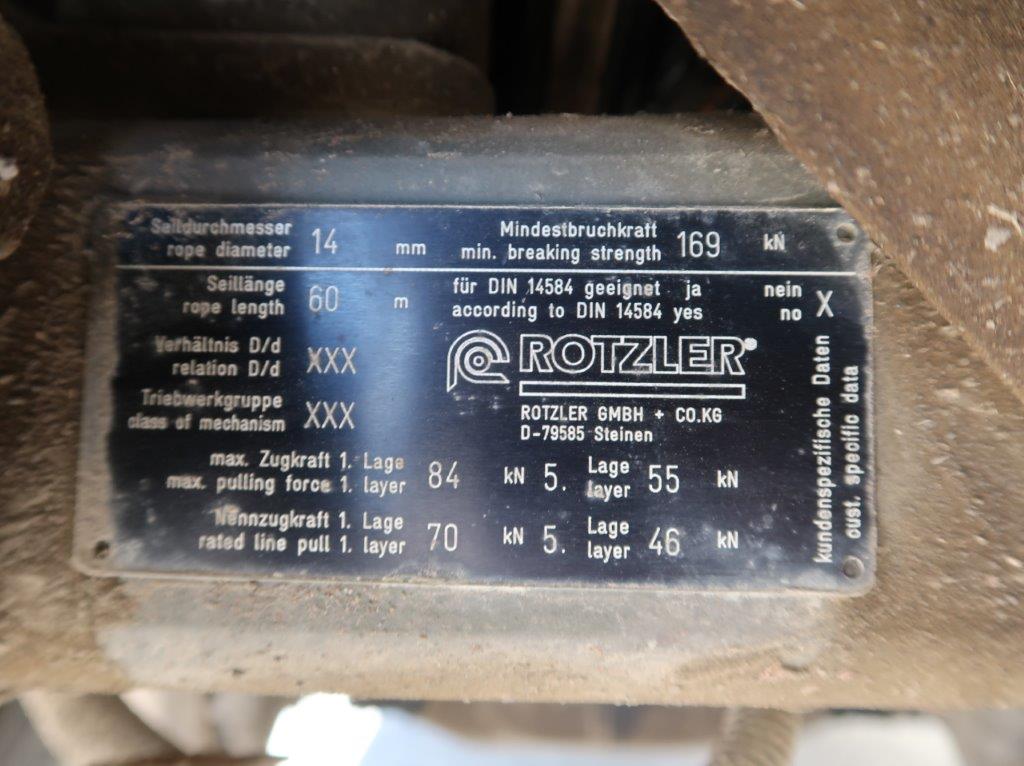

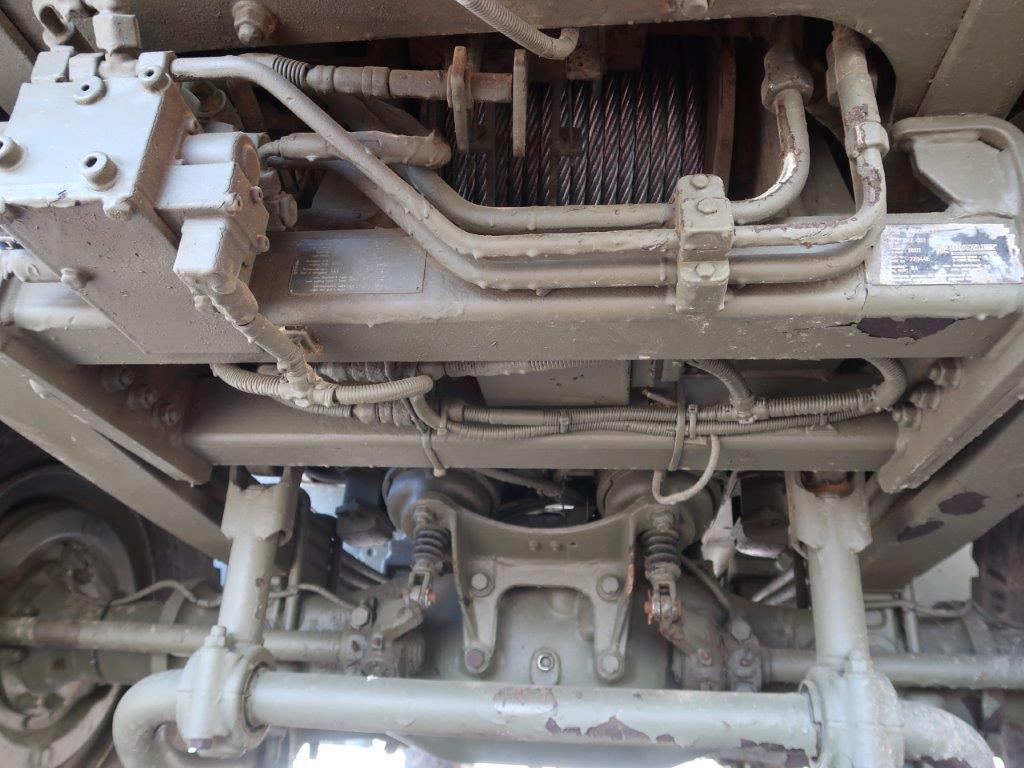

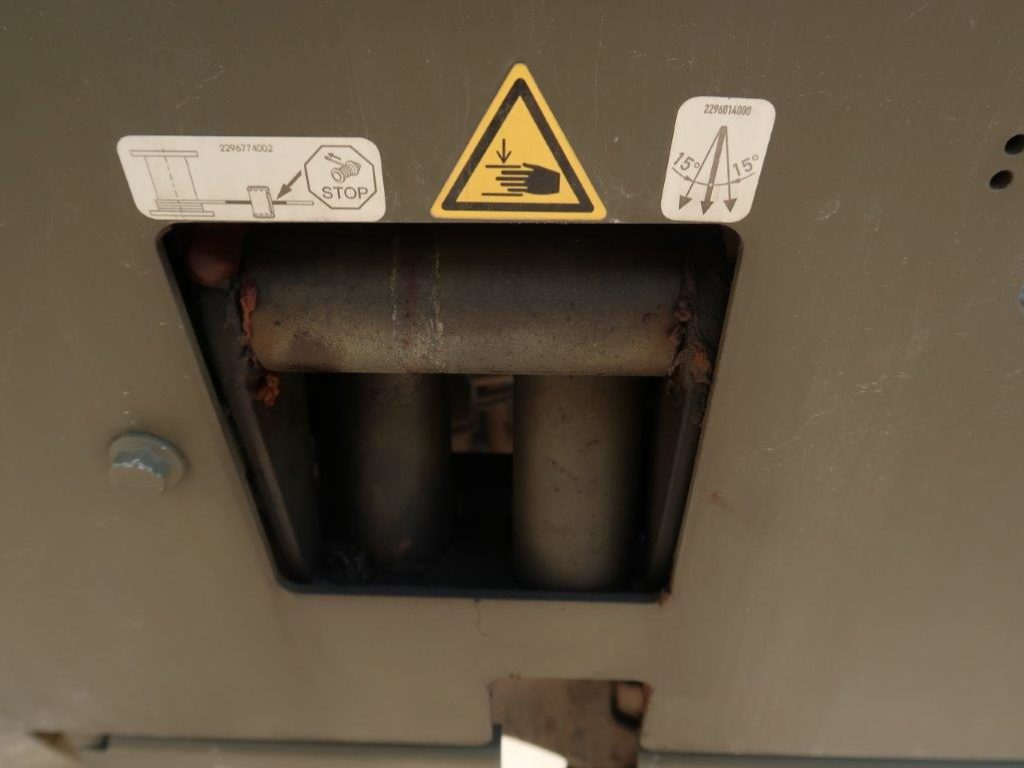

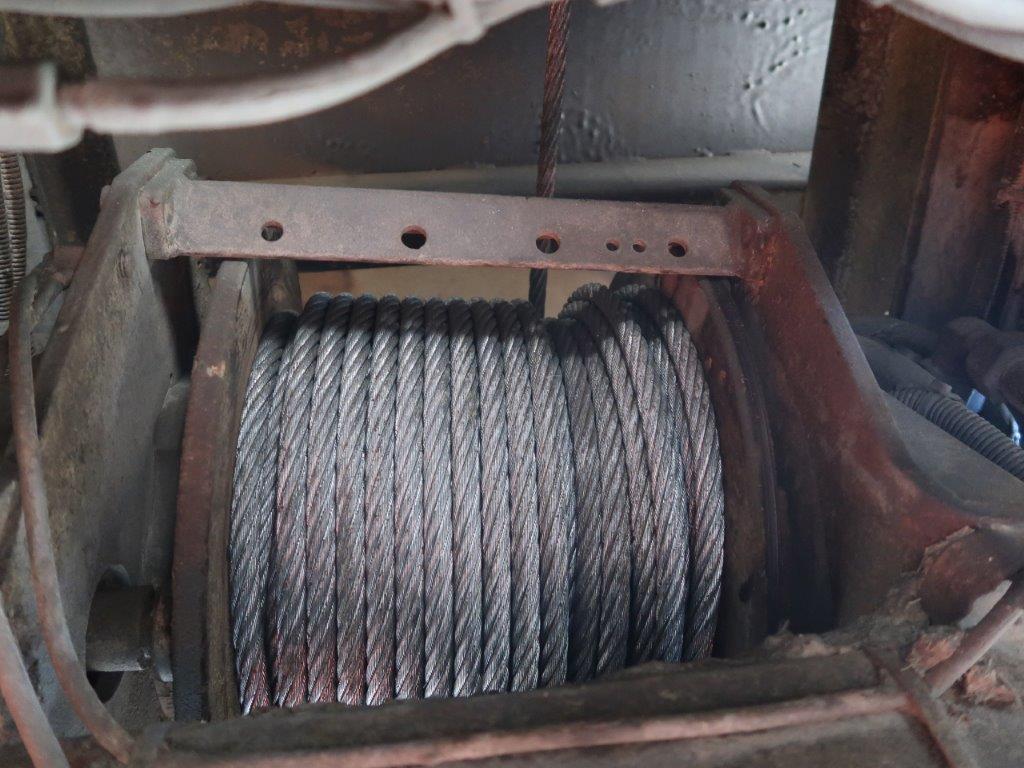

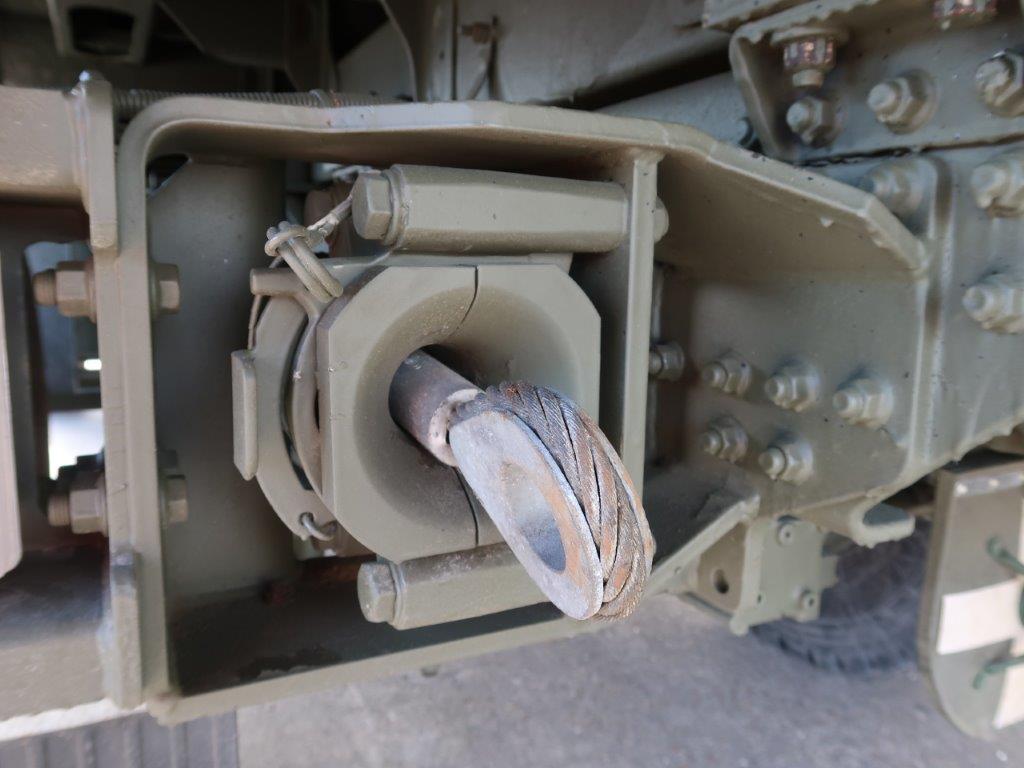

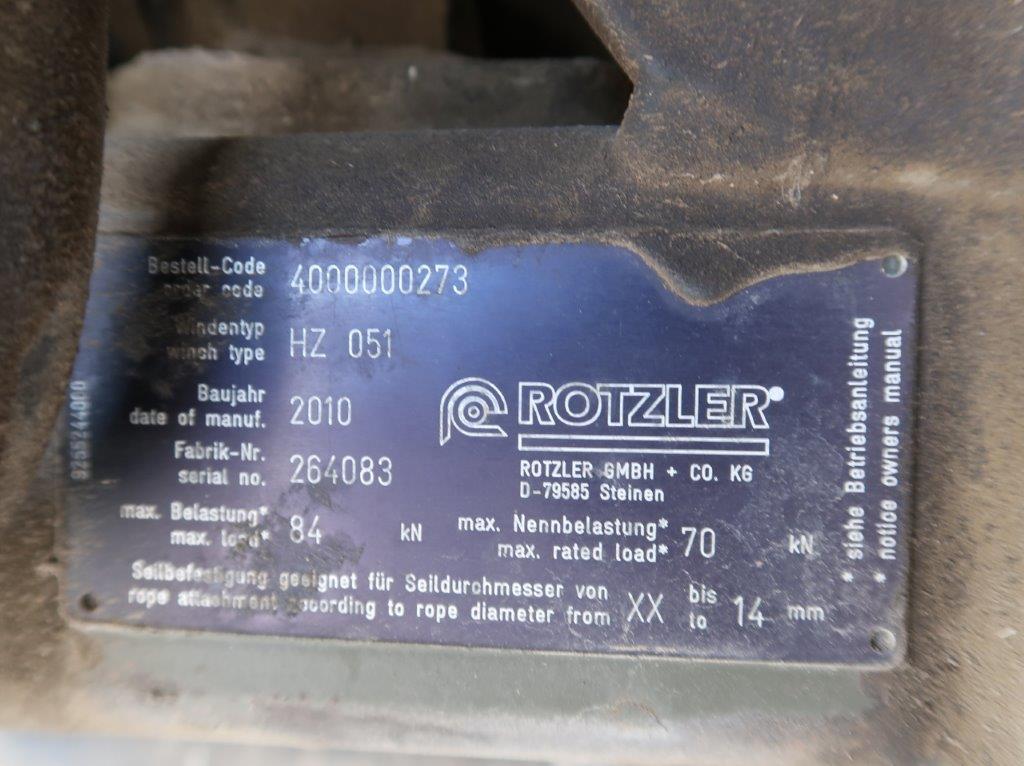

Fitted with a Rotzler HZ051 Hydraulic winch

Puling force 70Kn (7,100 Kg)

Rope diameter 14mm

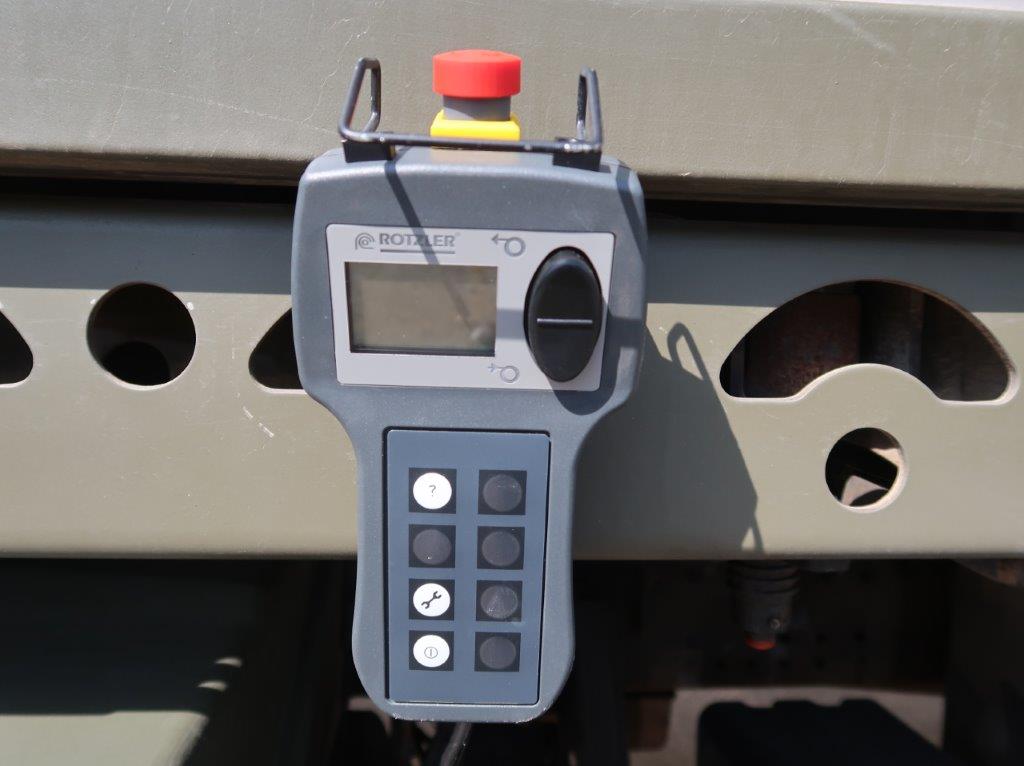

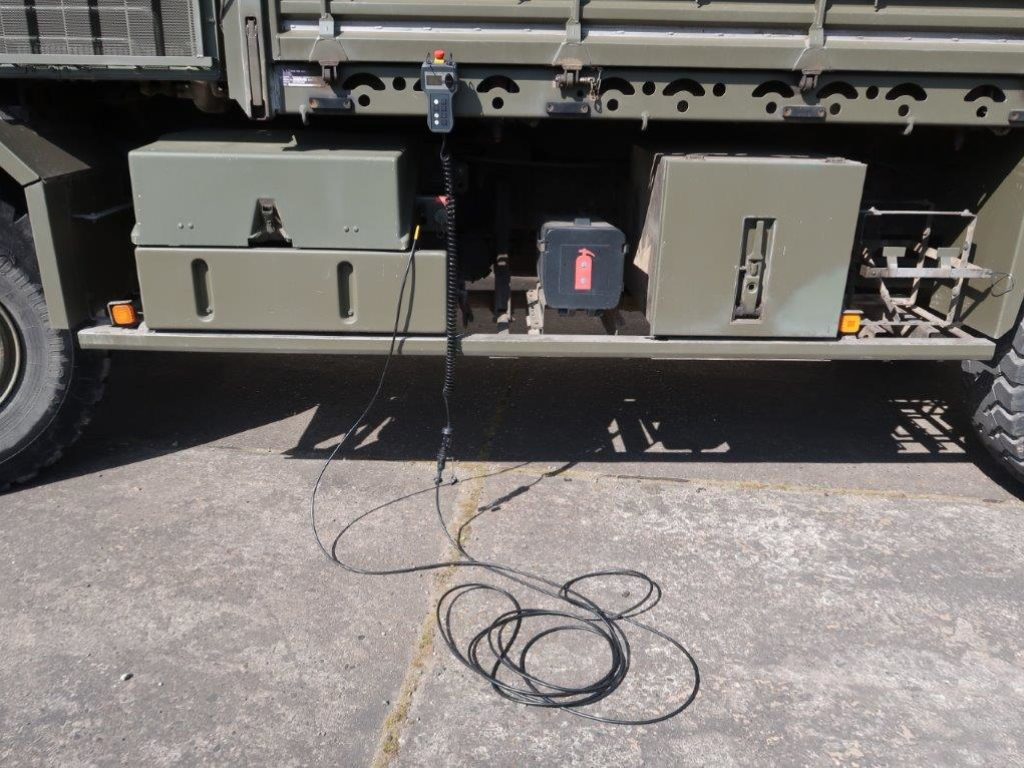

Operated by a hand held control unit

Can be used from the front or rear of the vehicle


Specification: -

Configuration: 4x4

Payload: 6 Tons

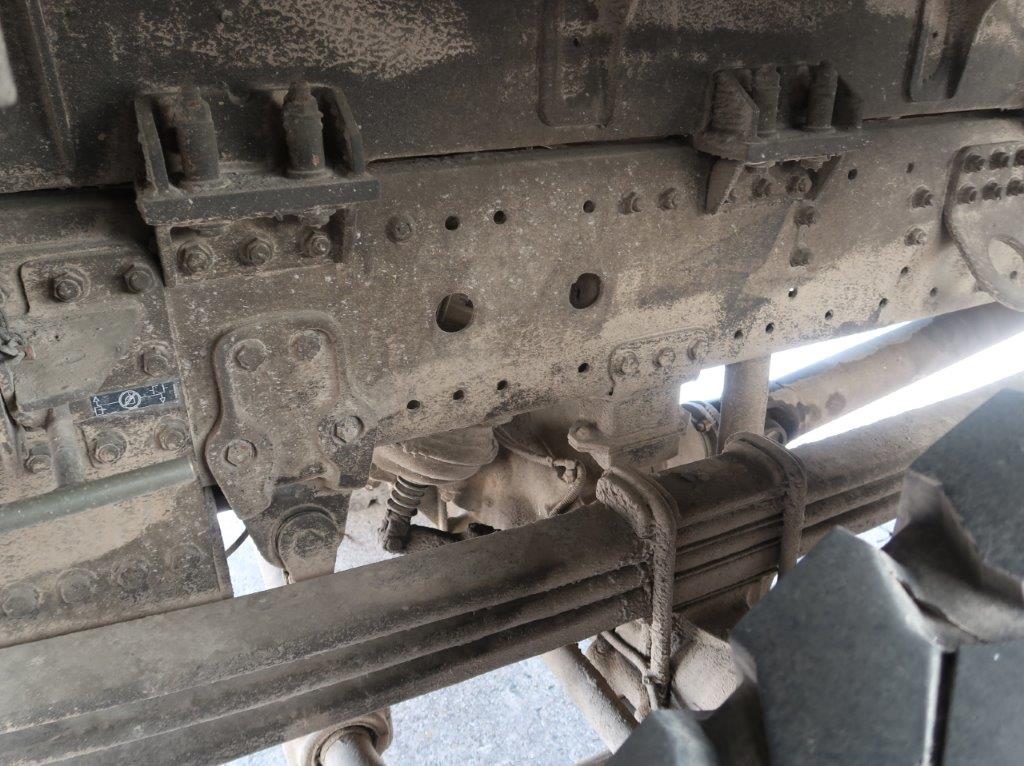

Steel leaf spring suspension

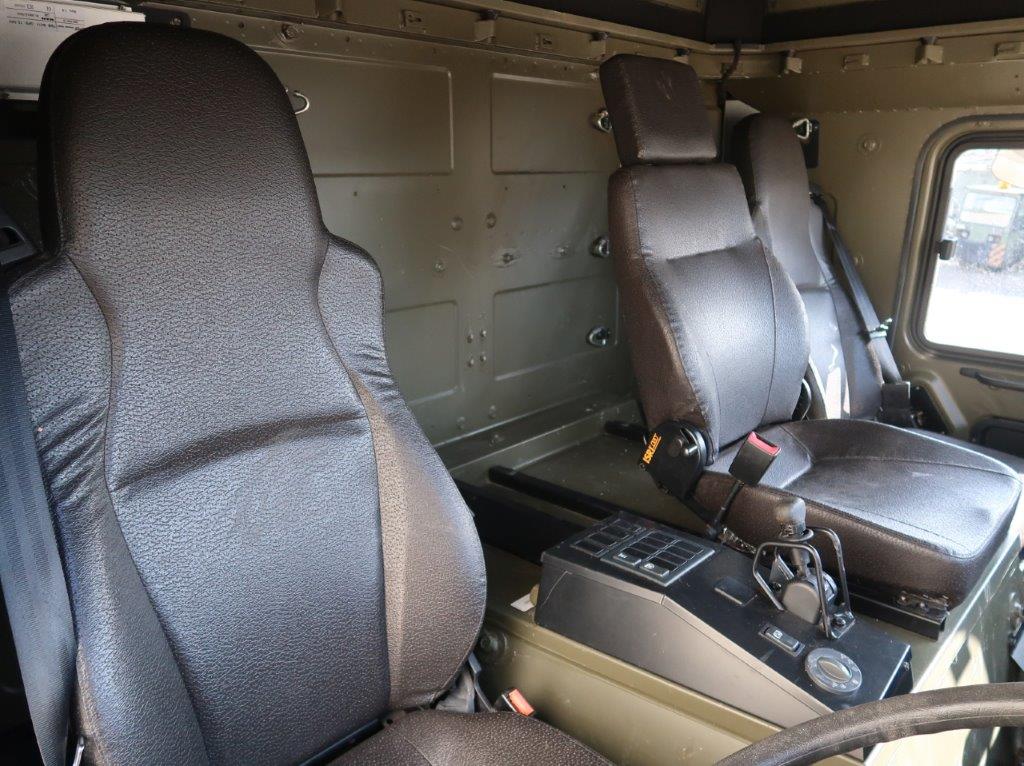

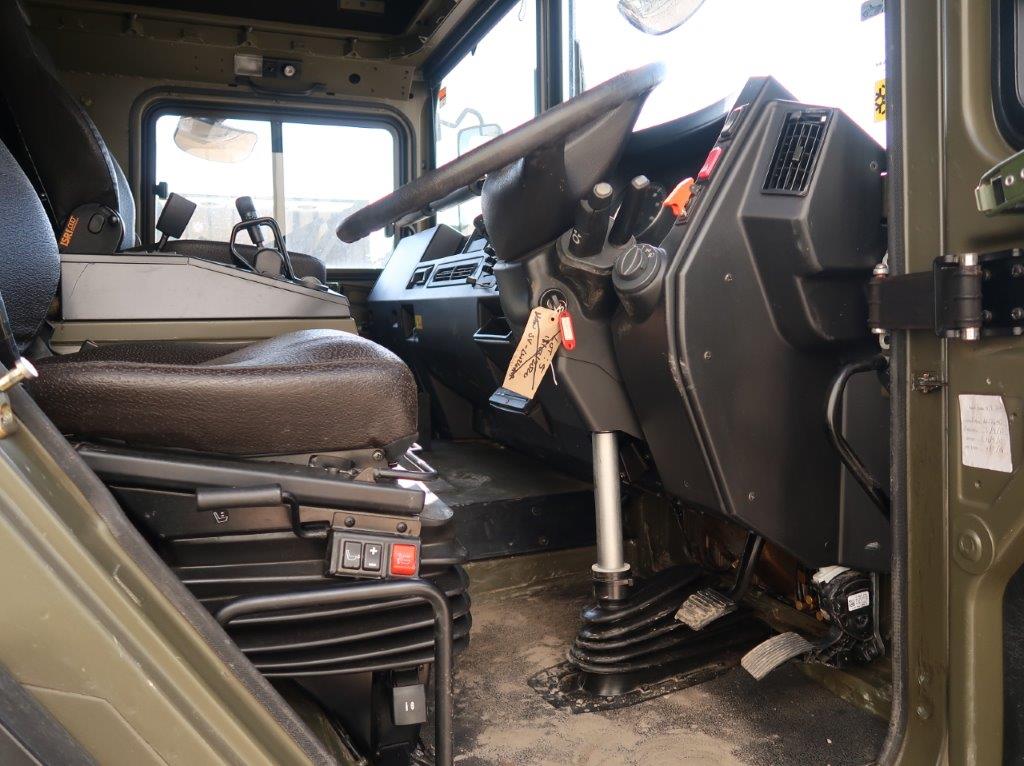

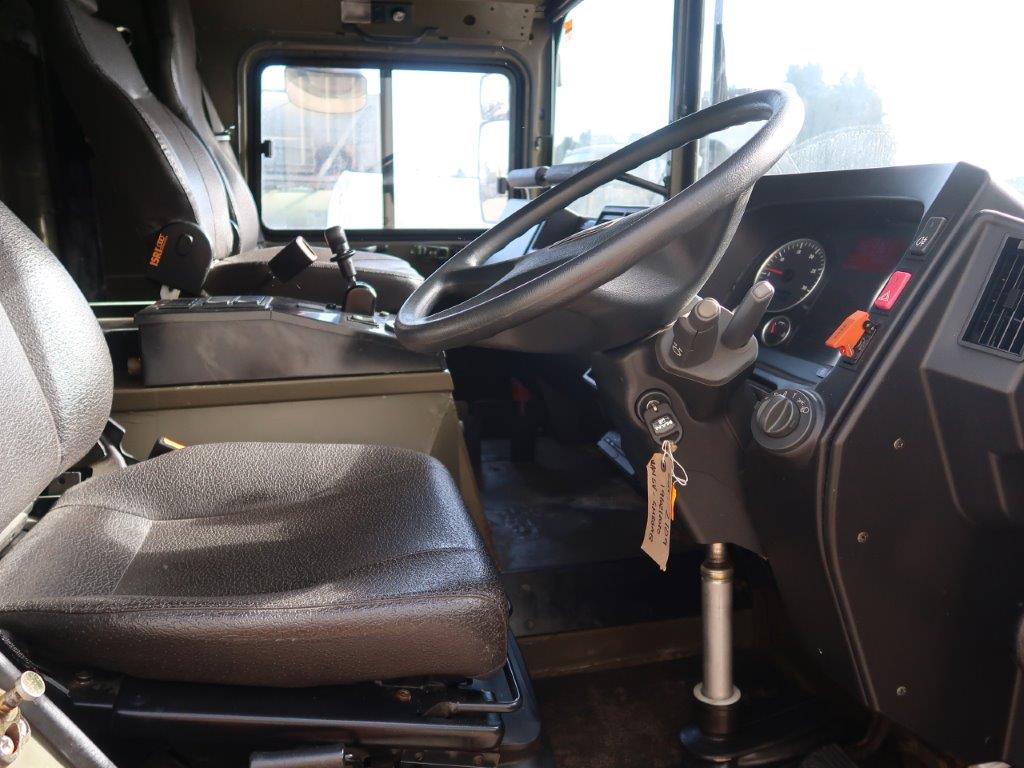

Seats: Driver and two crew air operated

Air Conditioned Cabin

Cab roof hatch

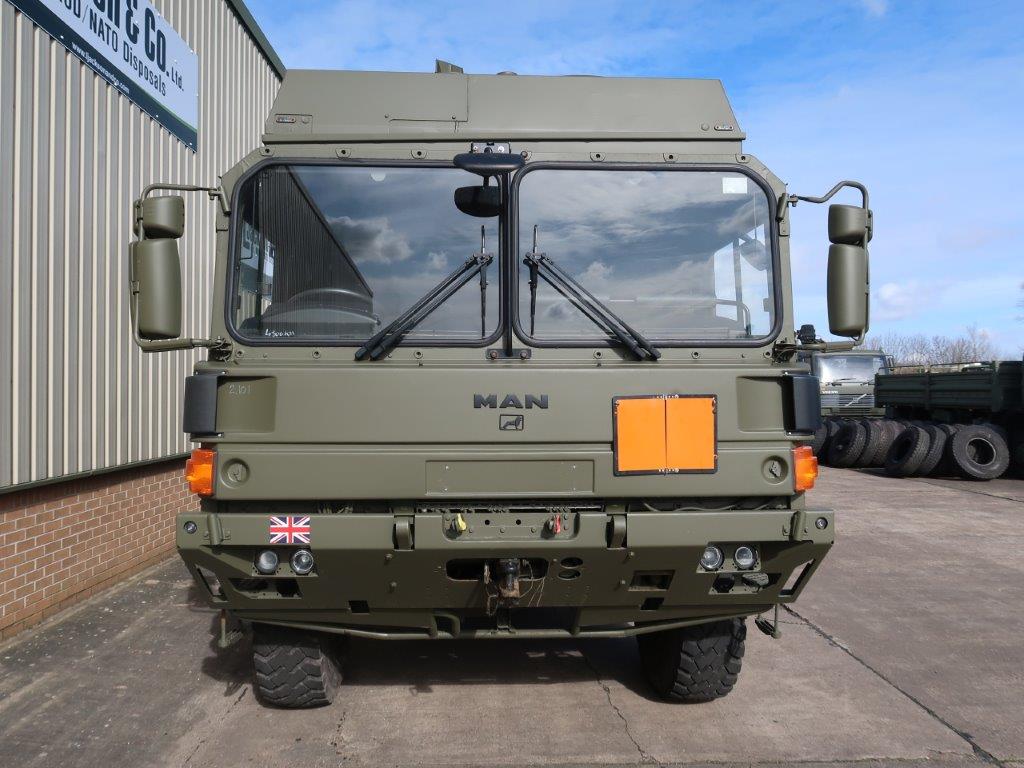

Tilt cab

Heated mirrors

Cruise control

EBS & ABS braking system

(EVB) Exhaust valve brake

Hill start brake

Temperature and time display

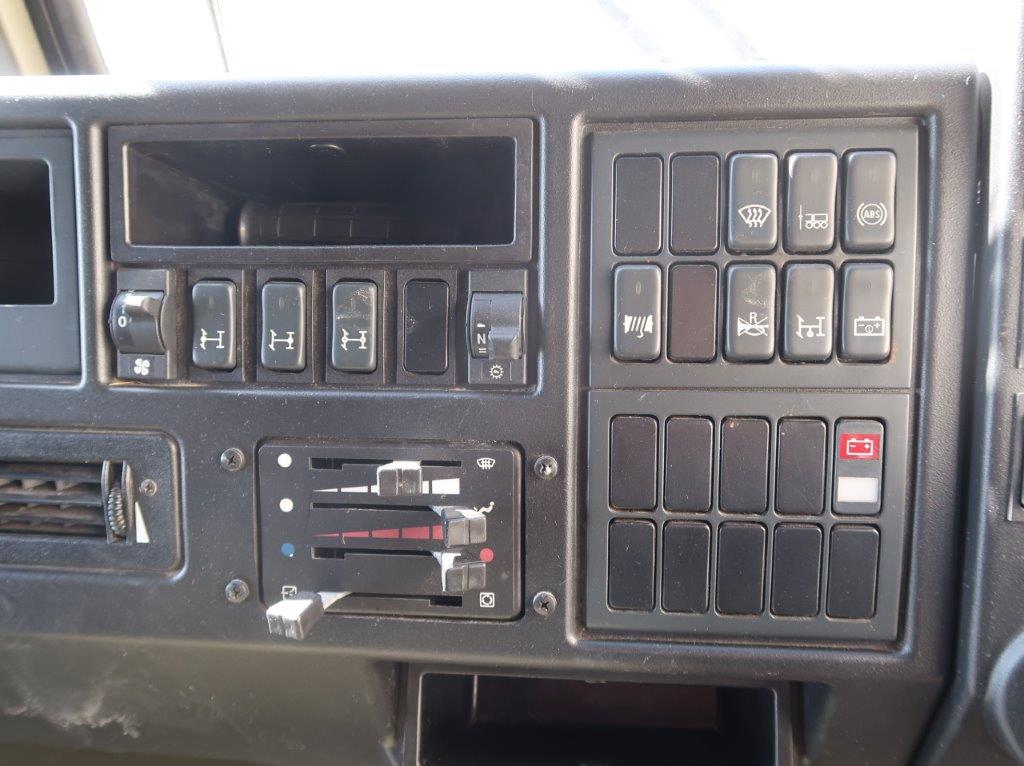

Front and rear diff locks and interaxle lock

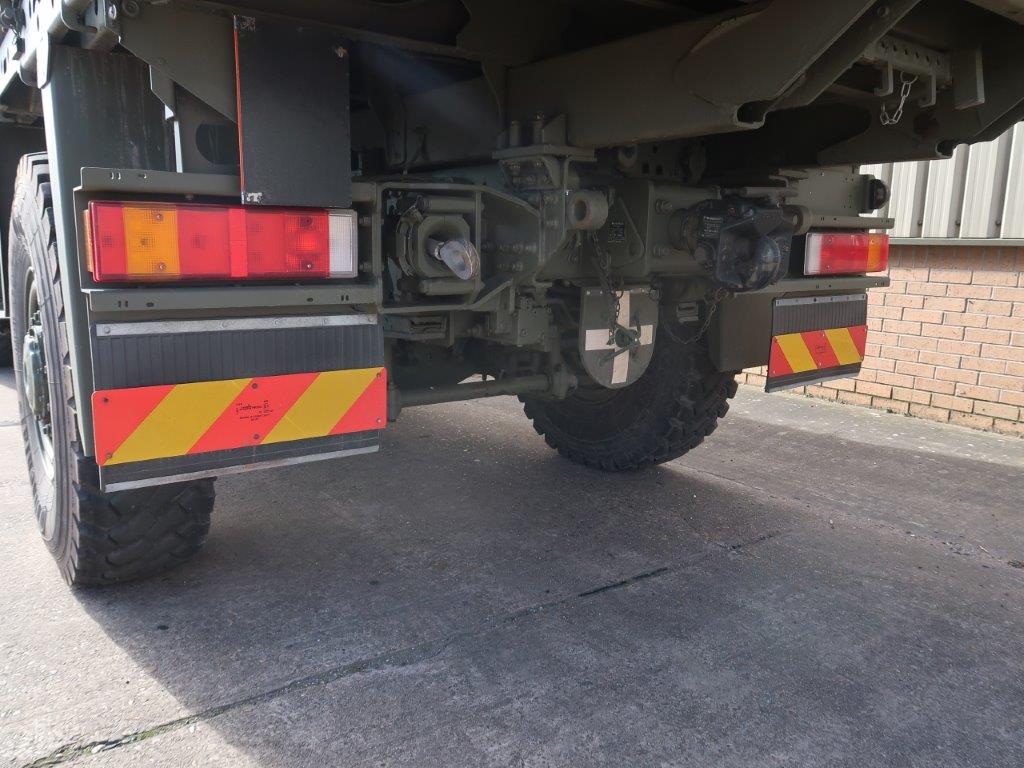

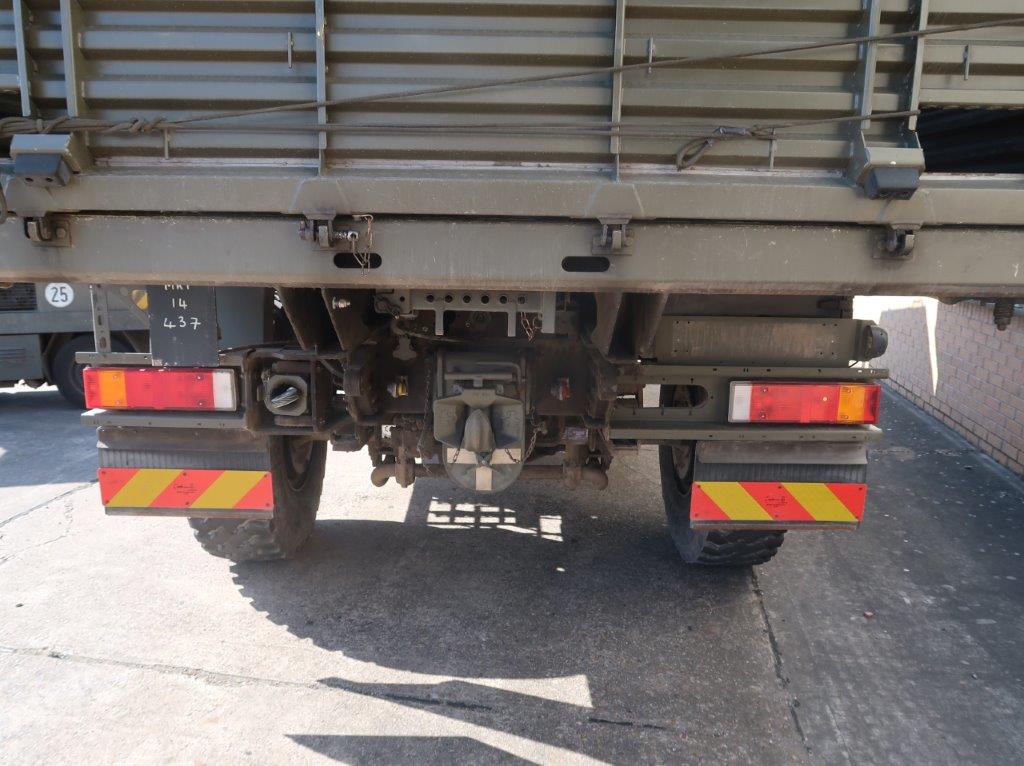

Rear Nato tow hitch, air fittings and lighting socket

New Spare wheel

Heavy duty steel body fitted with lashing tie down points as well as a ISO container twist locks. Length 14' width 7'5"

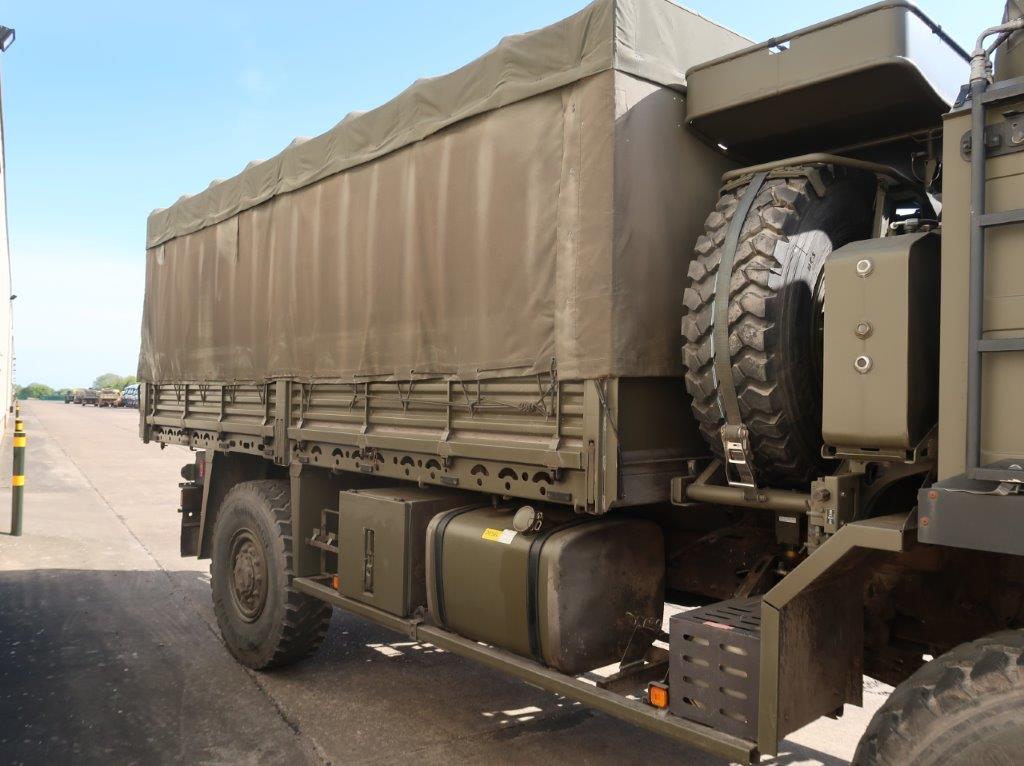

2x Side stowage tool boxes

2x Fire extinguisher boxes

GVW: 18,000Kg

Axle 1: 9,100Kg

Axle 2: 10,250Kg

Unladen weight: 9,200Kg

Body length: 5.1M

Fully wax oiled chassis

These vehicles have been built to the highest standard and are available today from our stock.

We also have other models of the MAN HX60 in stock to include drop side cargo models with canopy, troop carriers, flat bed, and crane trucks

QTY Available: 10


Category Trucks
Manufacturer MAN
Engine MAN D0836 LFG50 Euro 4 6 cylinder 326HP
Gearbox ZF AS 1210 MAN TipMatic
Brakes Electronically controlled, dual circuit, air operated
Steering ZF 8098 Servocom
Tyres Continental 14.00R20 22 Ply
Max Load 6,000 Kg
Electrics 24 volts
Length 8.1M
Height 3.5M
Width 2.5M
Hrs_Kms 10,000-40,000 Kilometres
Date into service
Year of manufacture 2010
Qty Available 10
Export requirements more SIEL Licence Required
