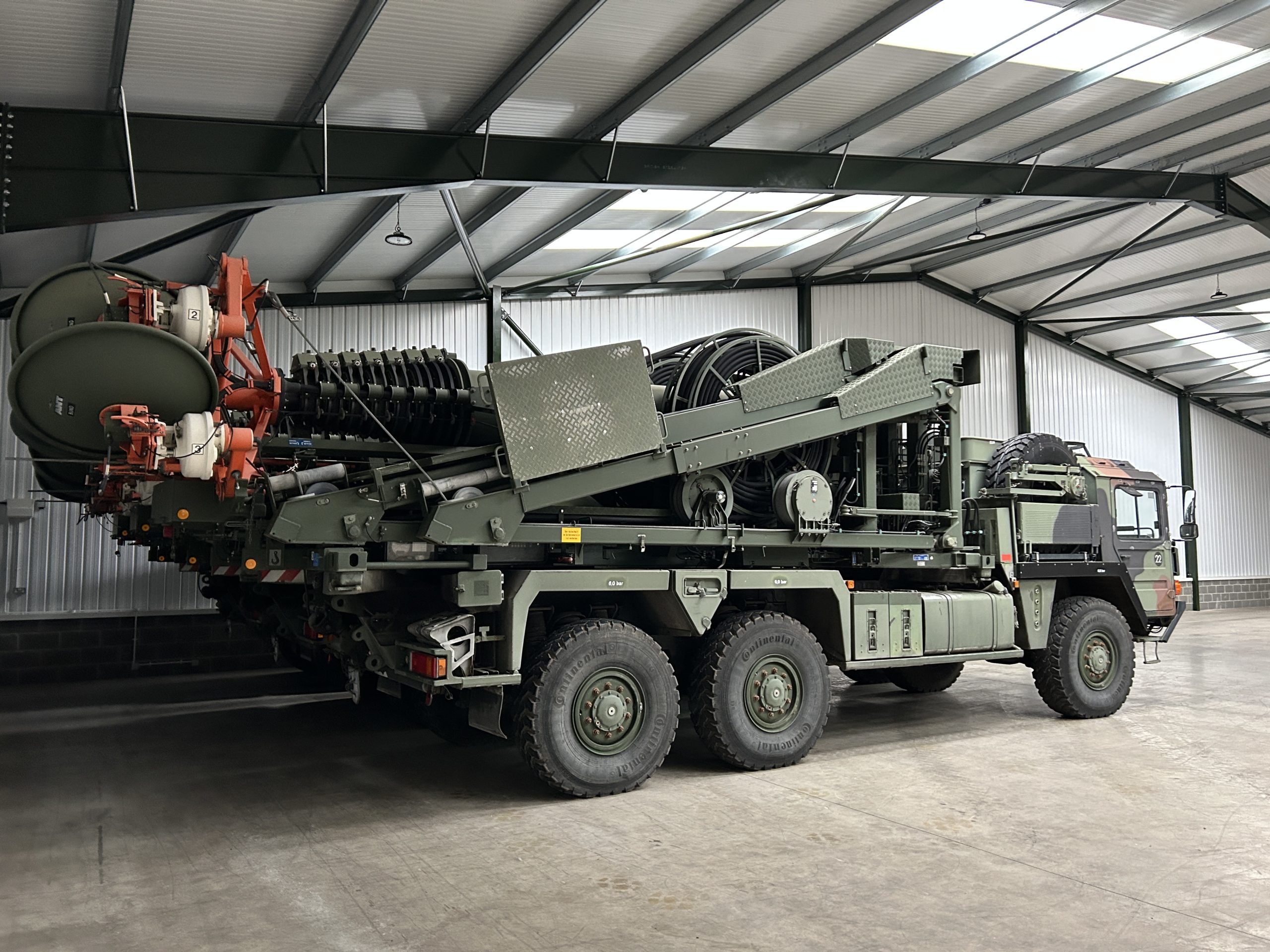

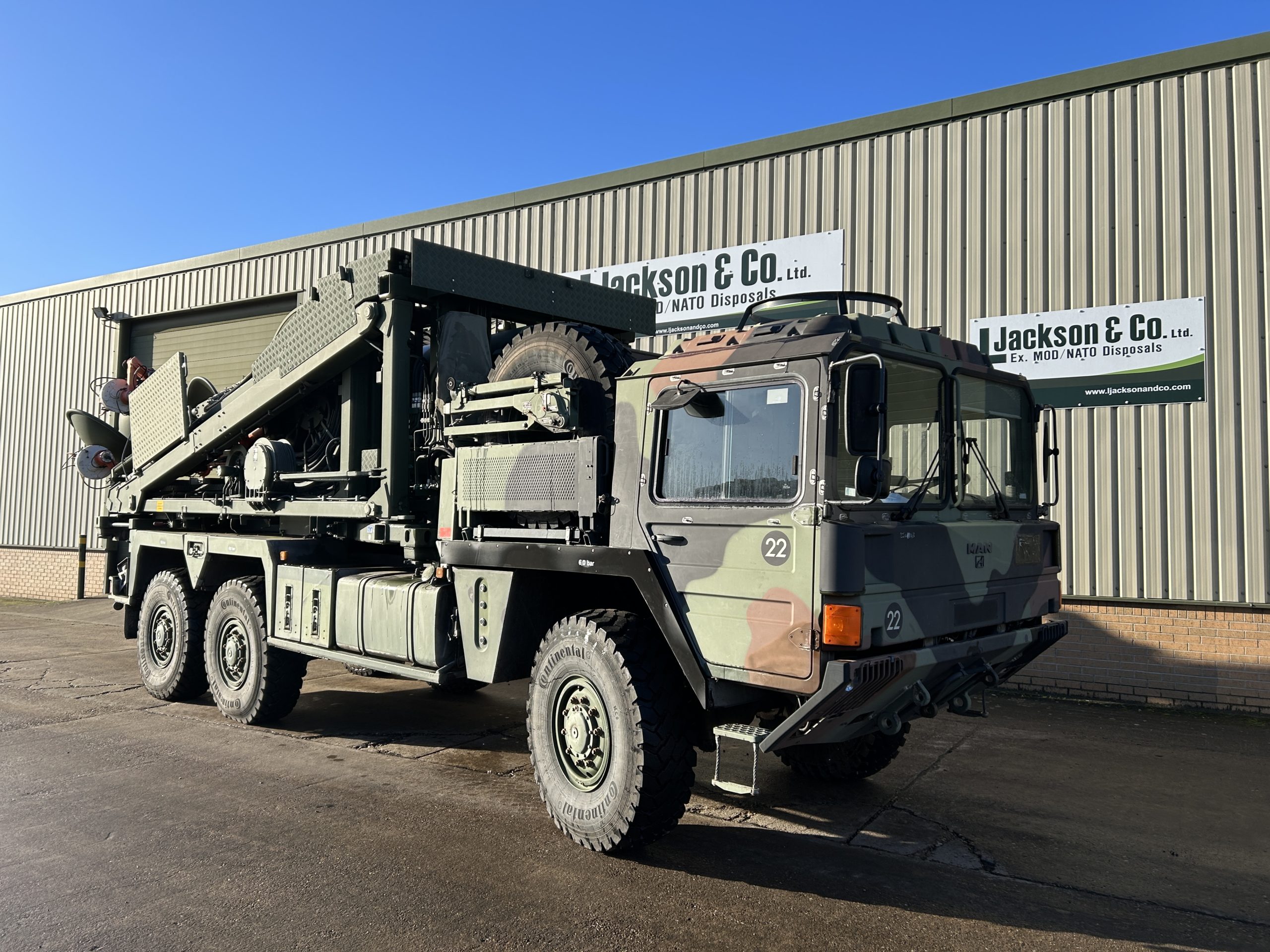

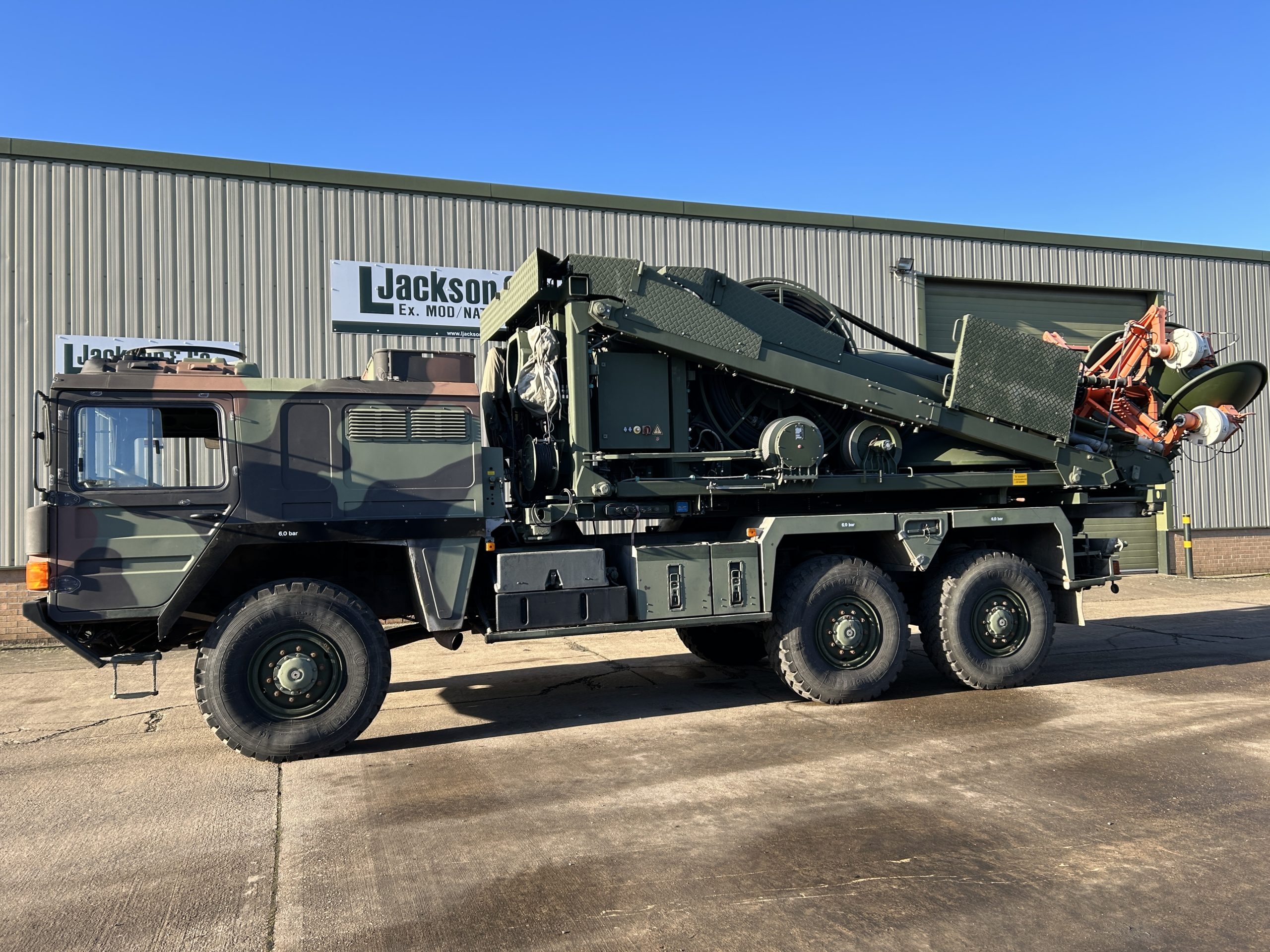

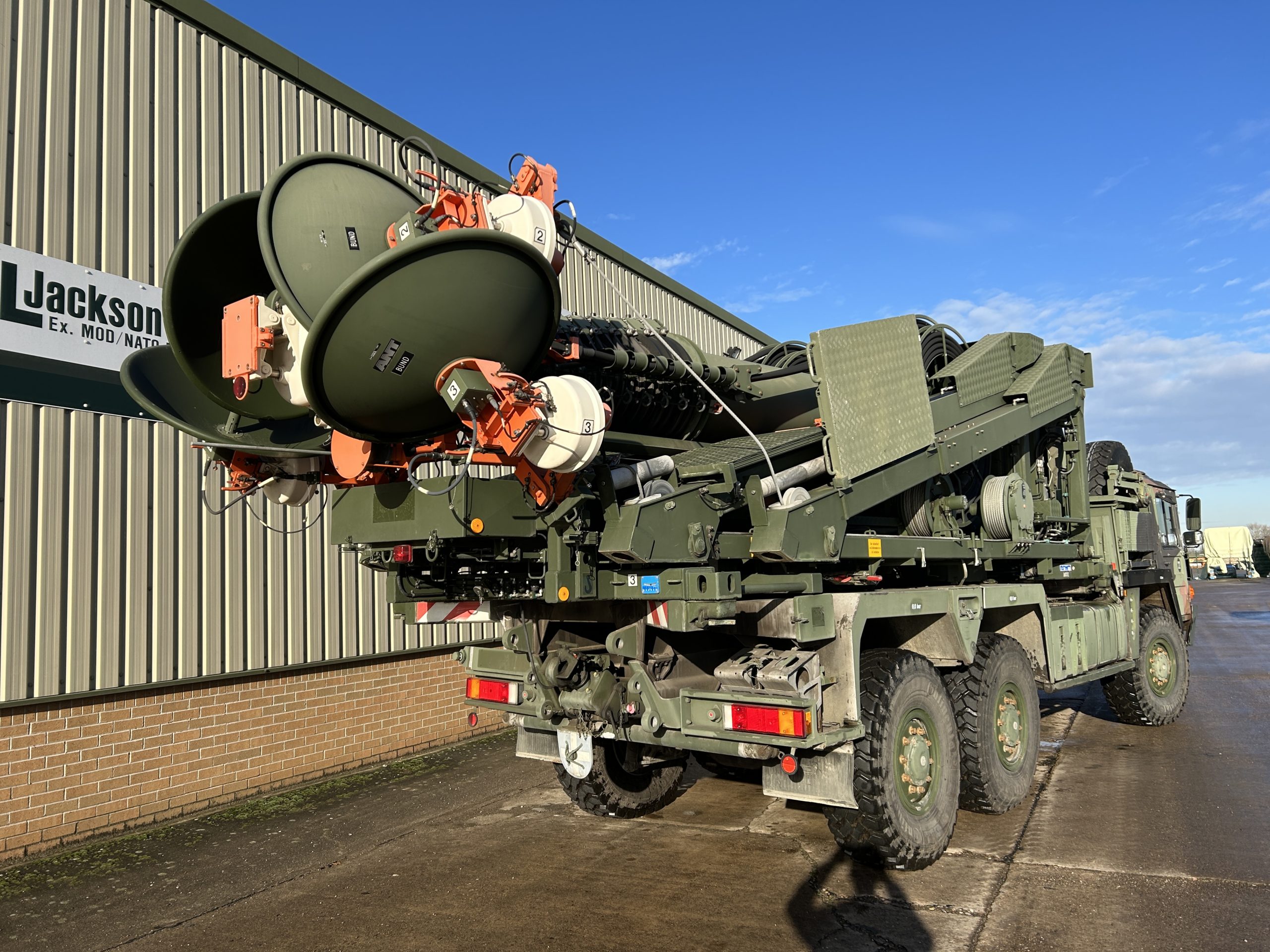

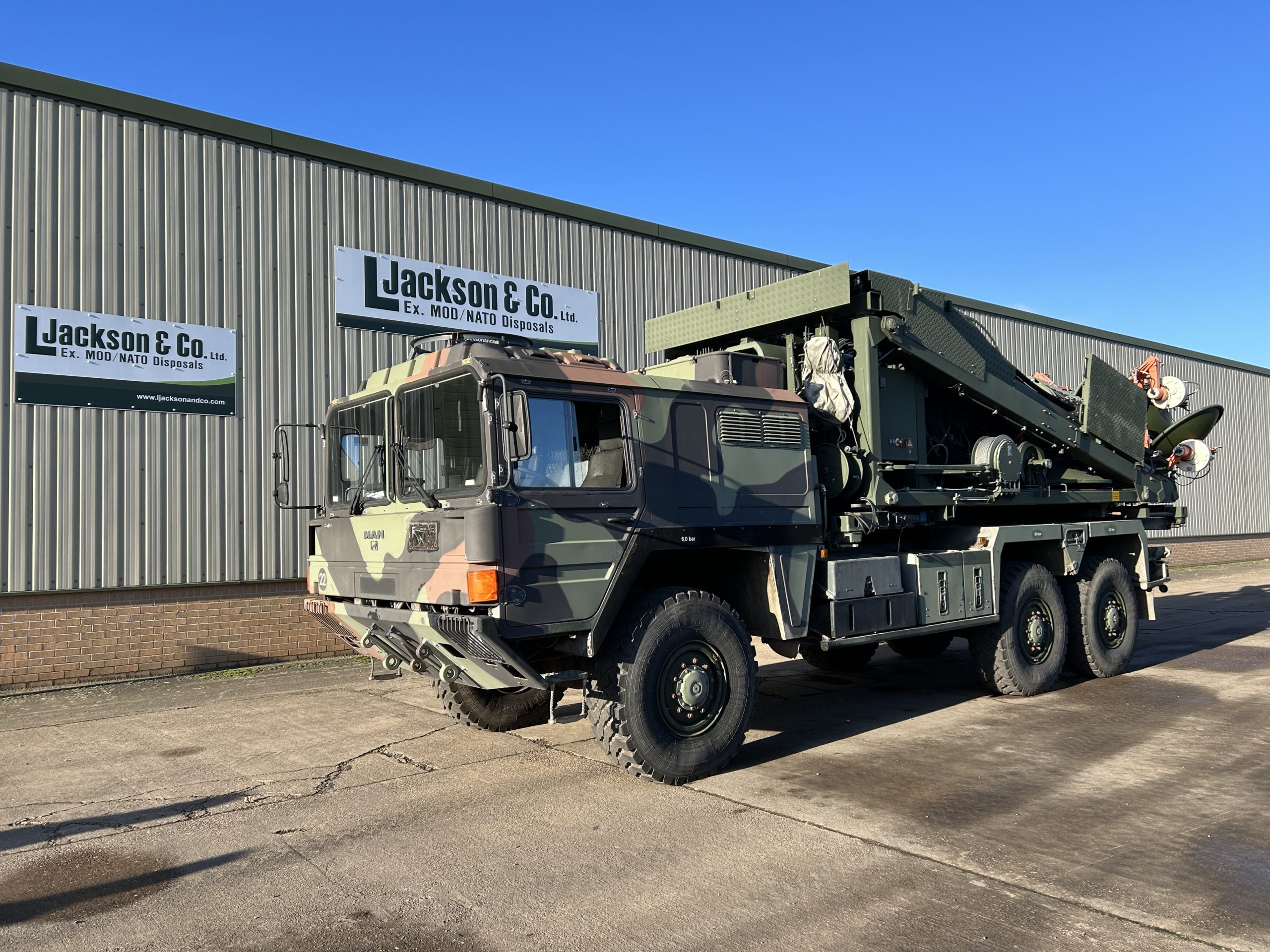

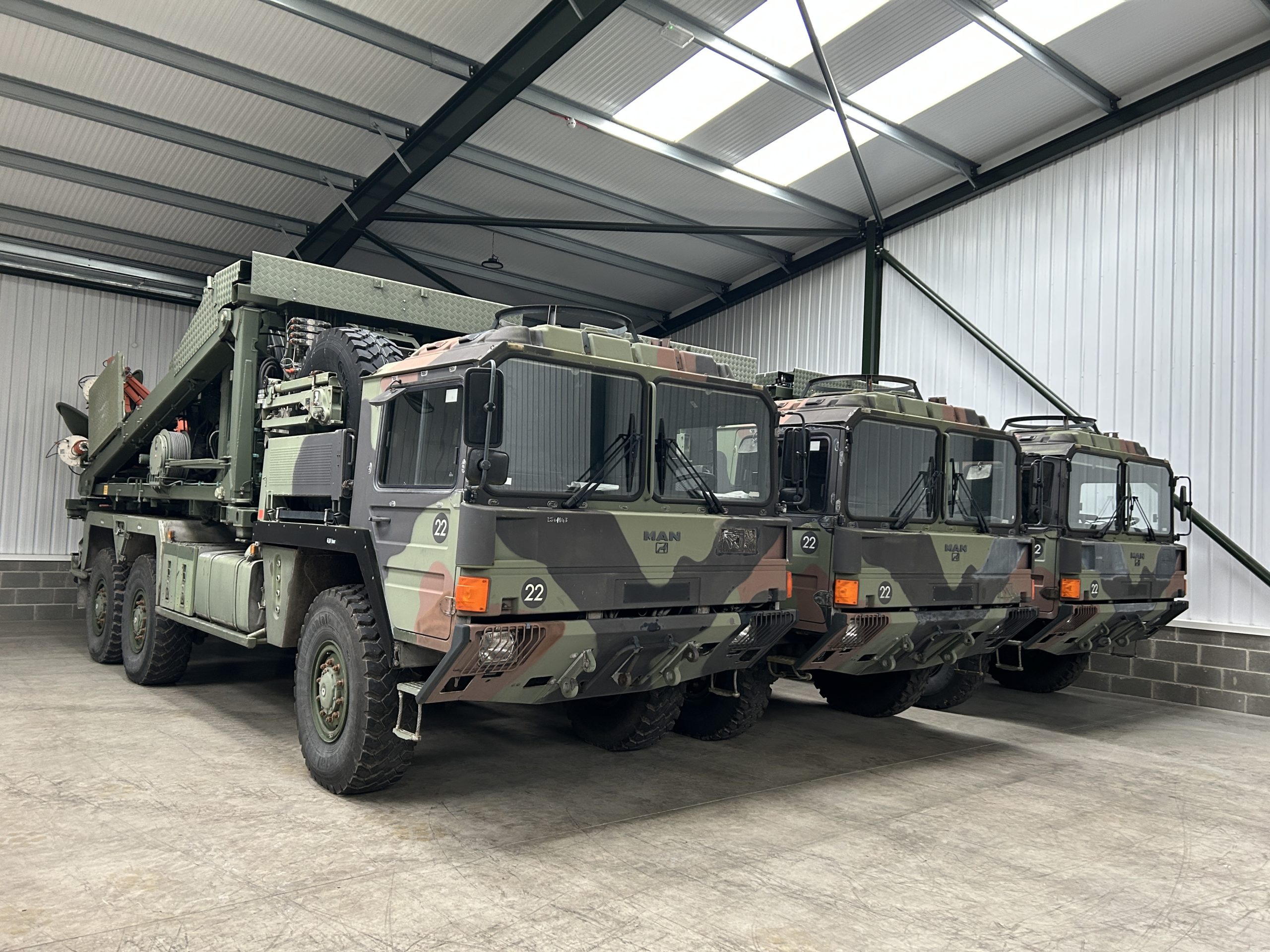

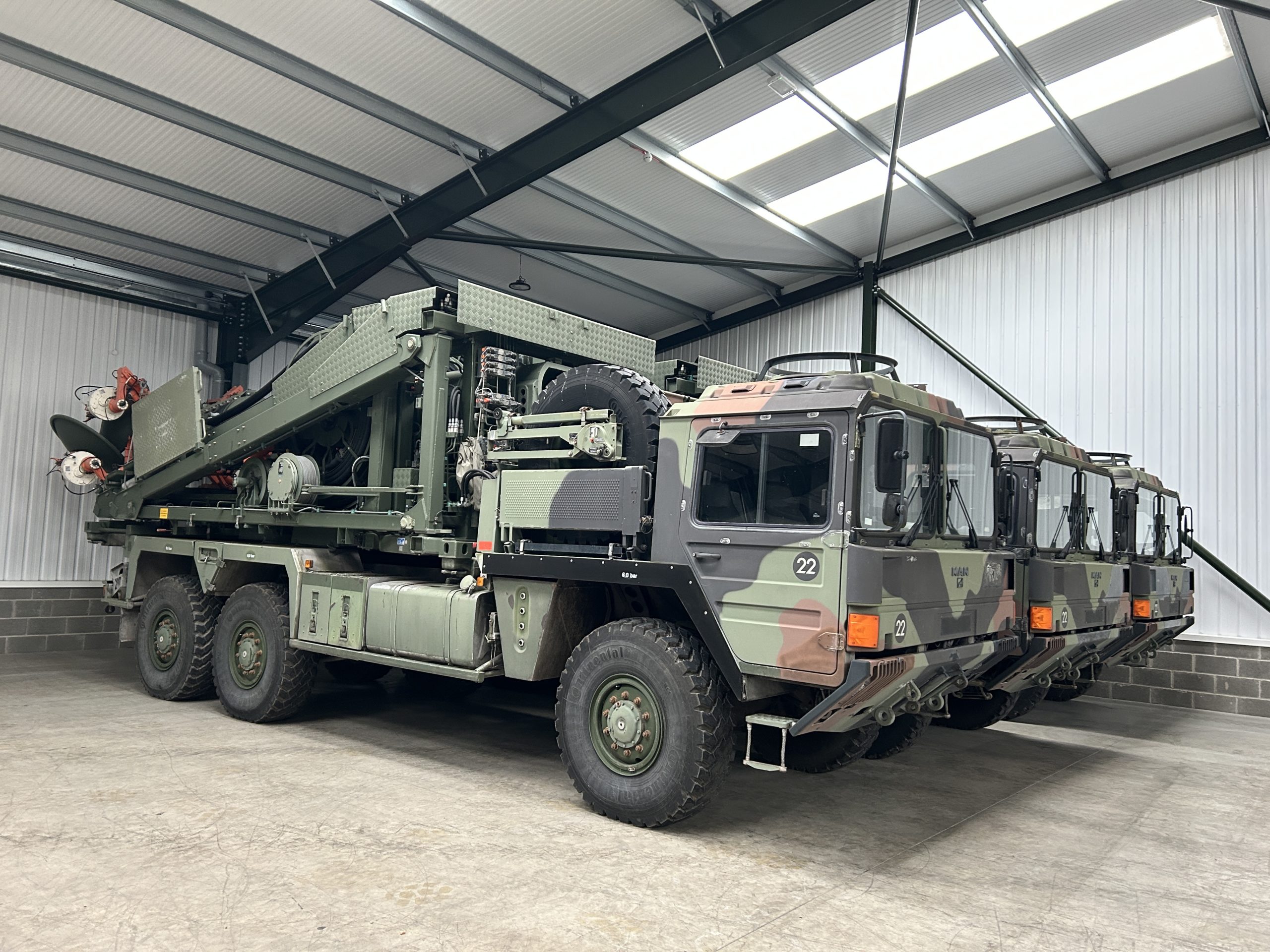

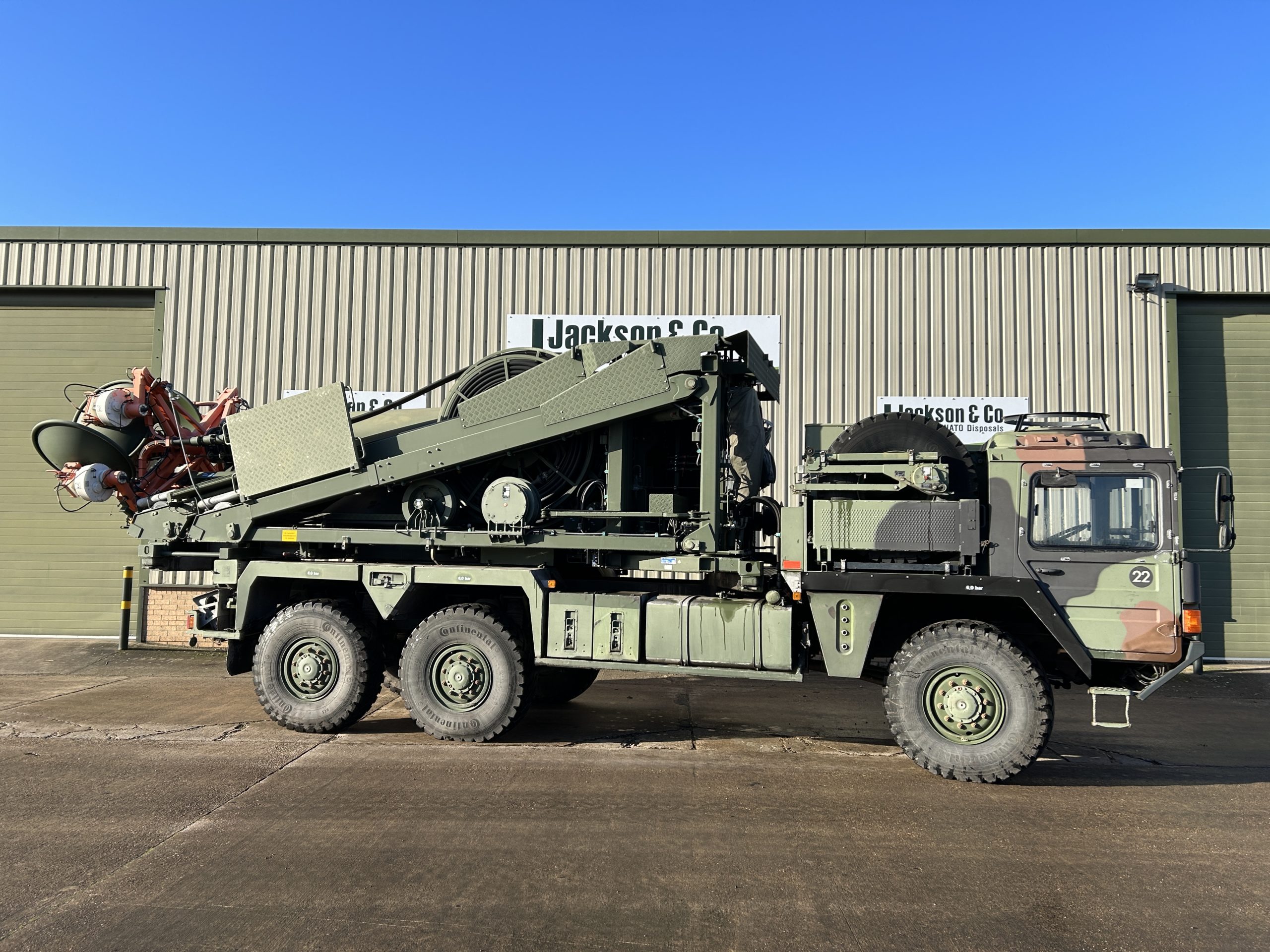

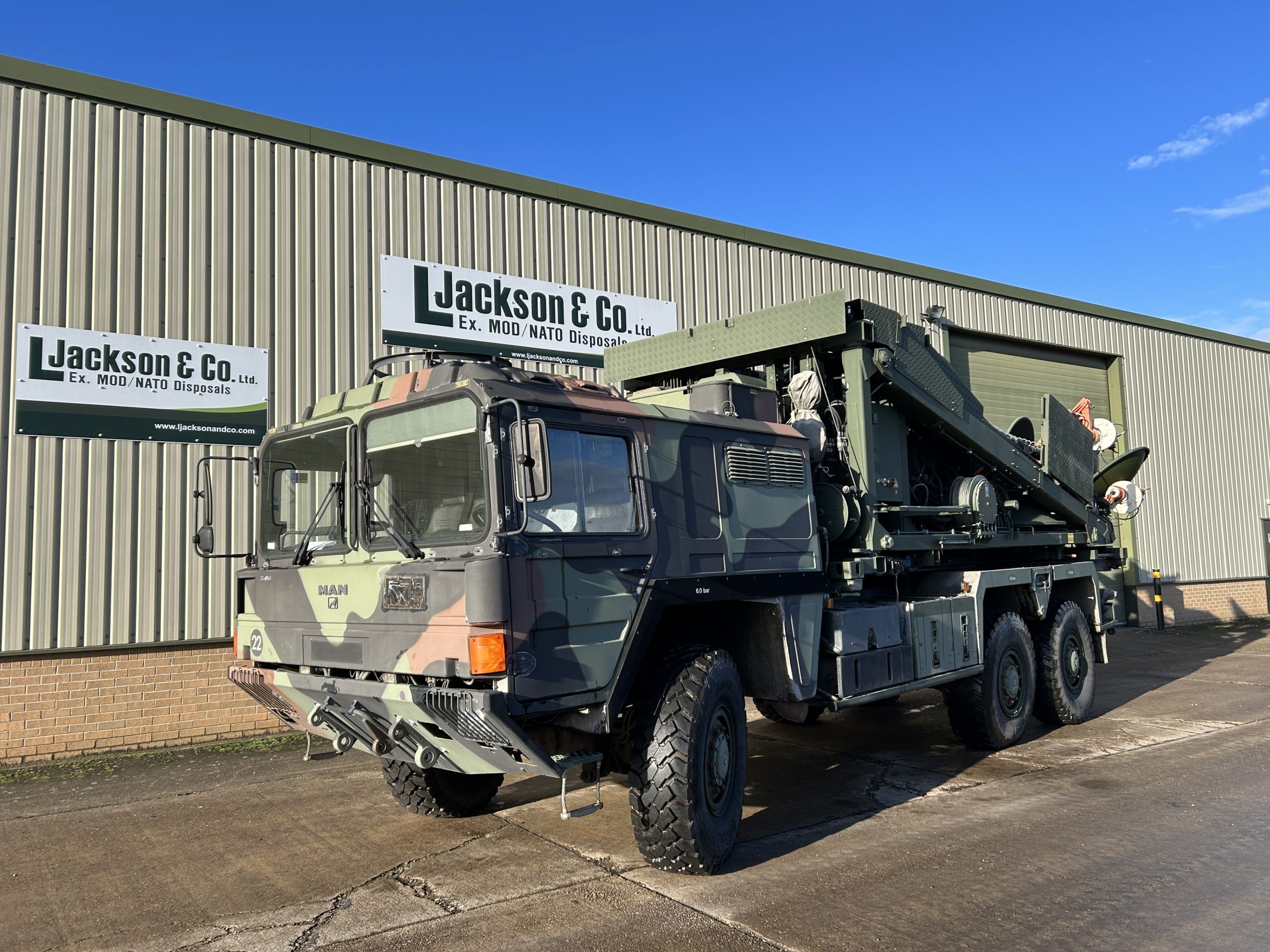

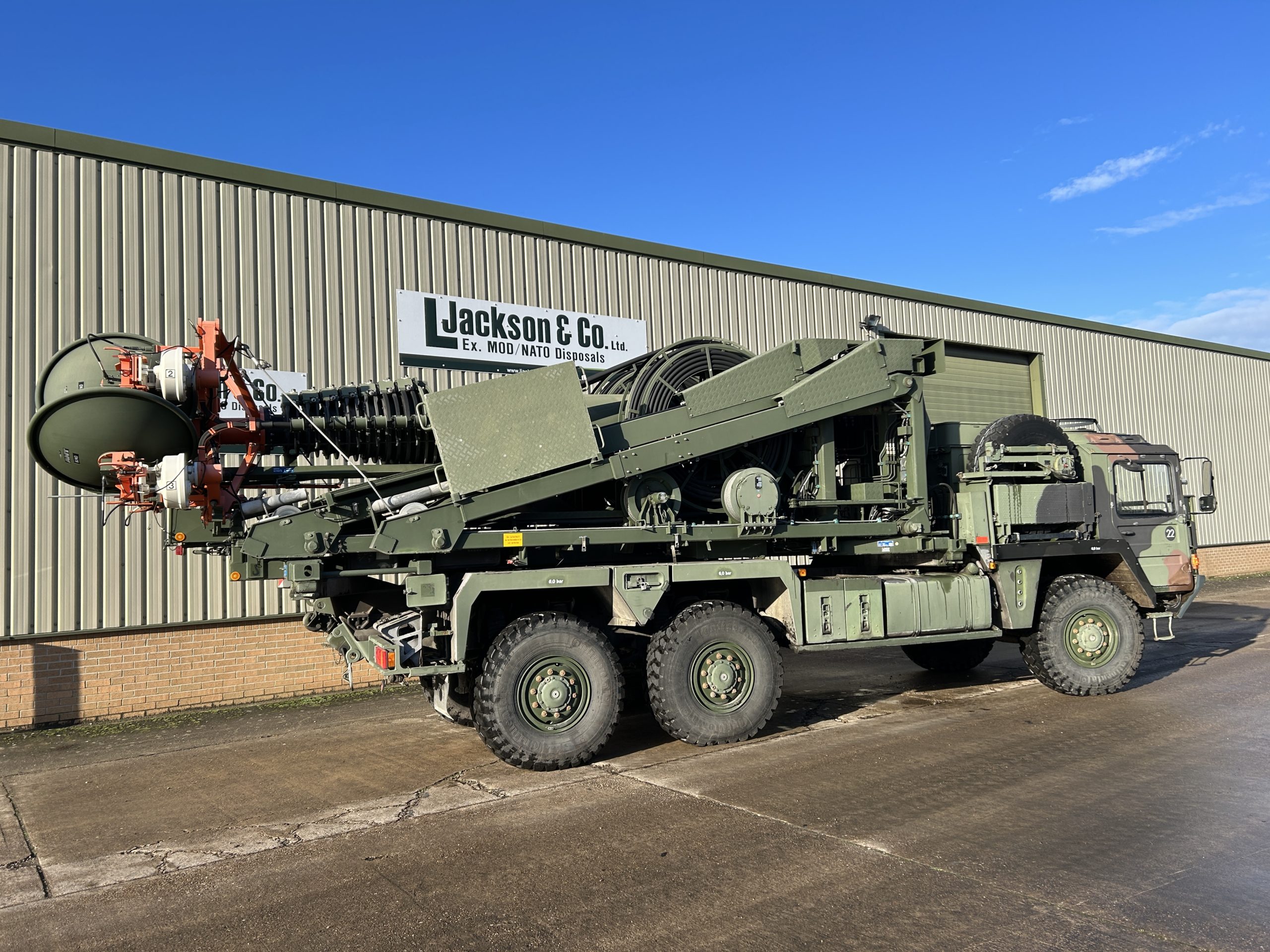

MAN KAT A1 25.422 6x6 with Aerial Mast
Direct from the military this model of vehicle is the later current in service vehicle used today

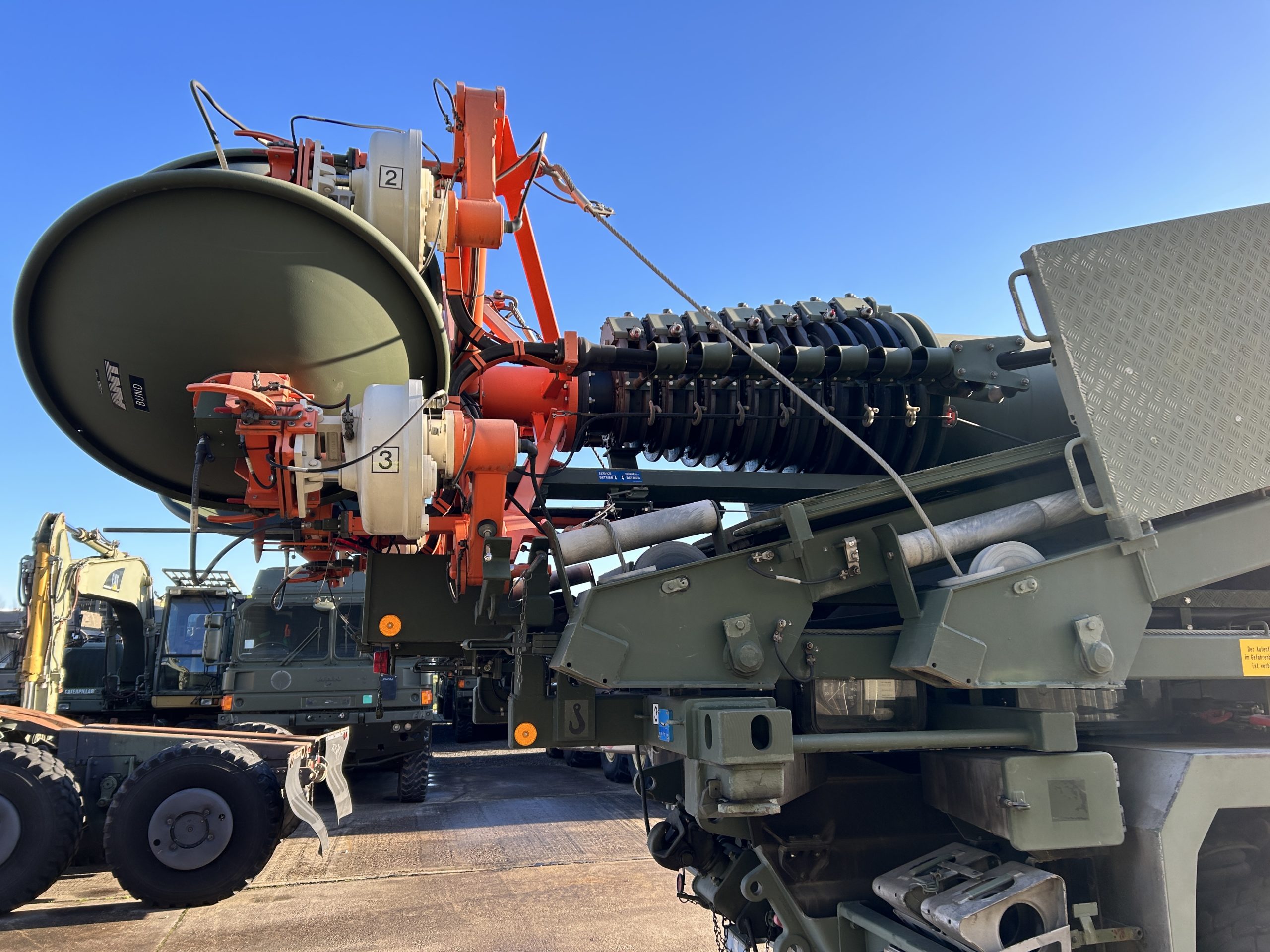

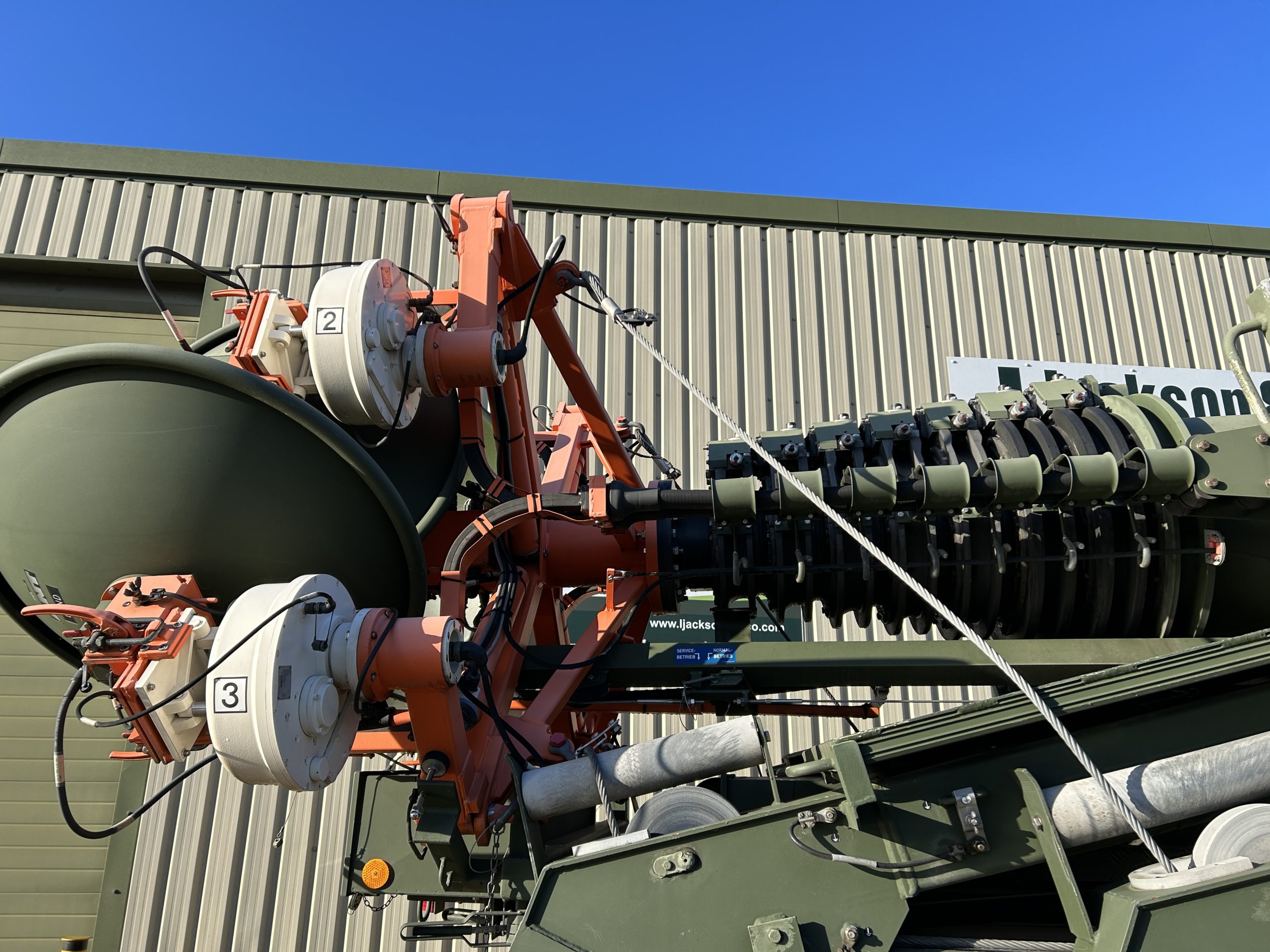

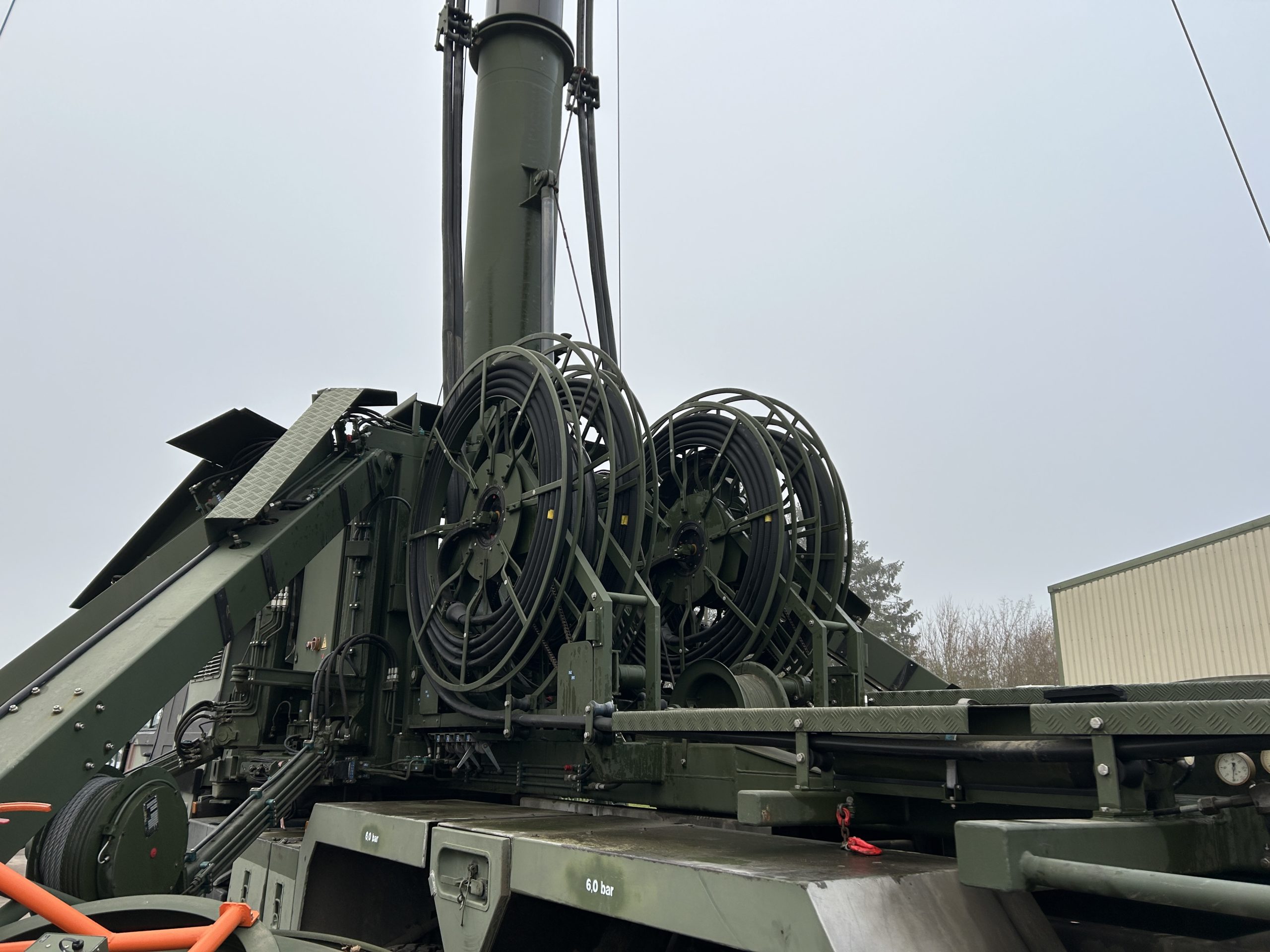

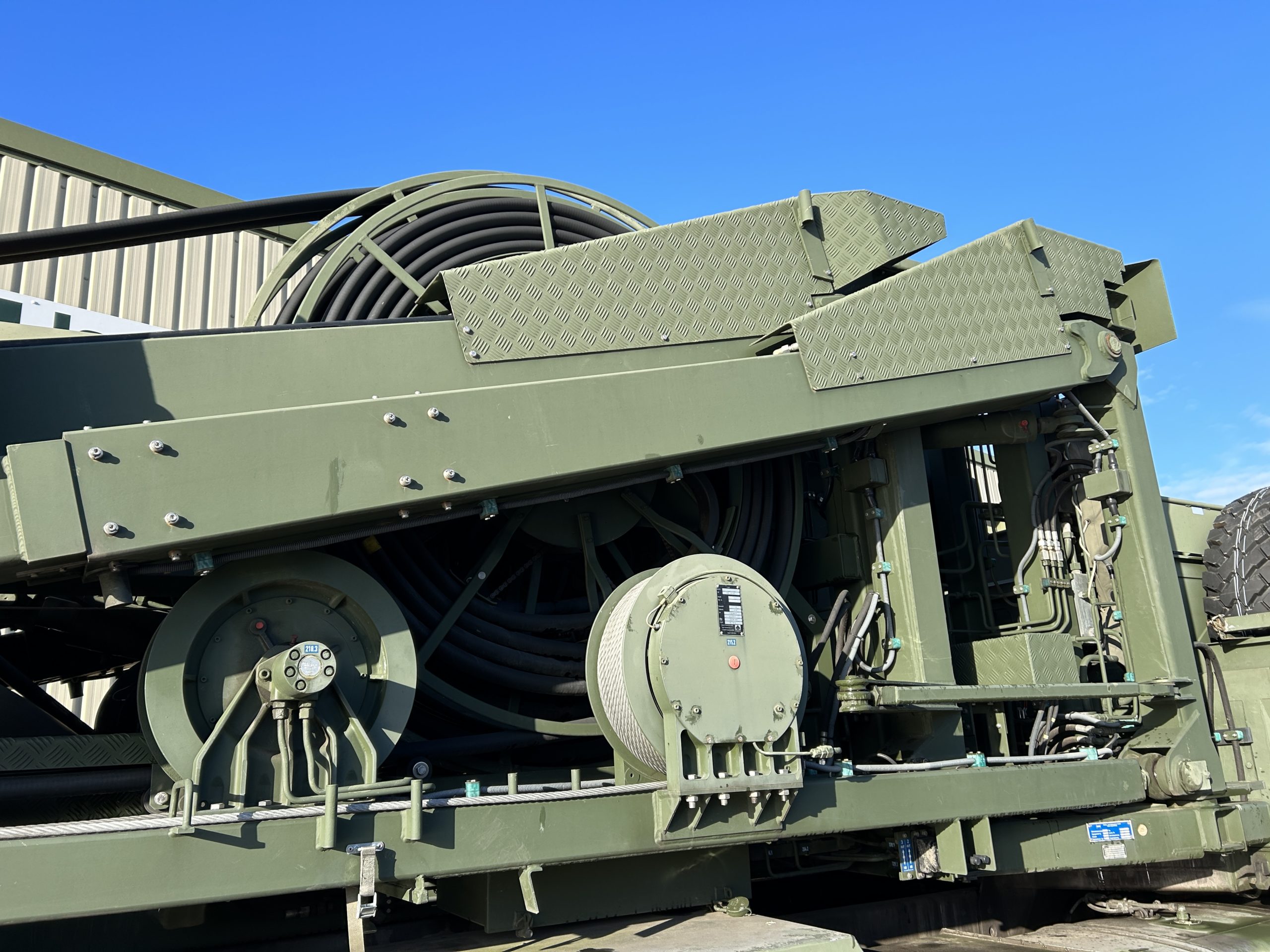

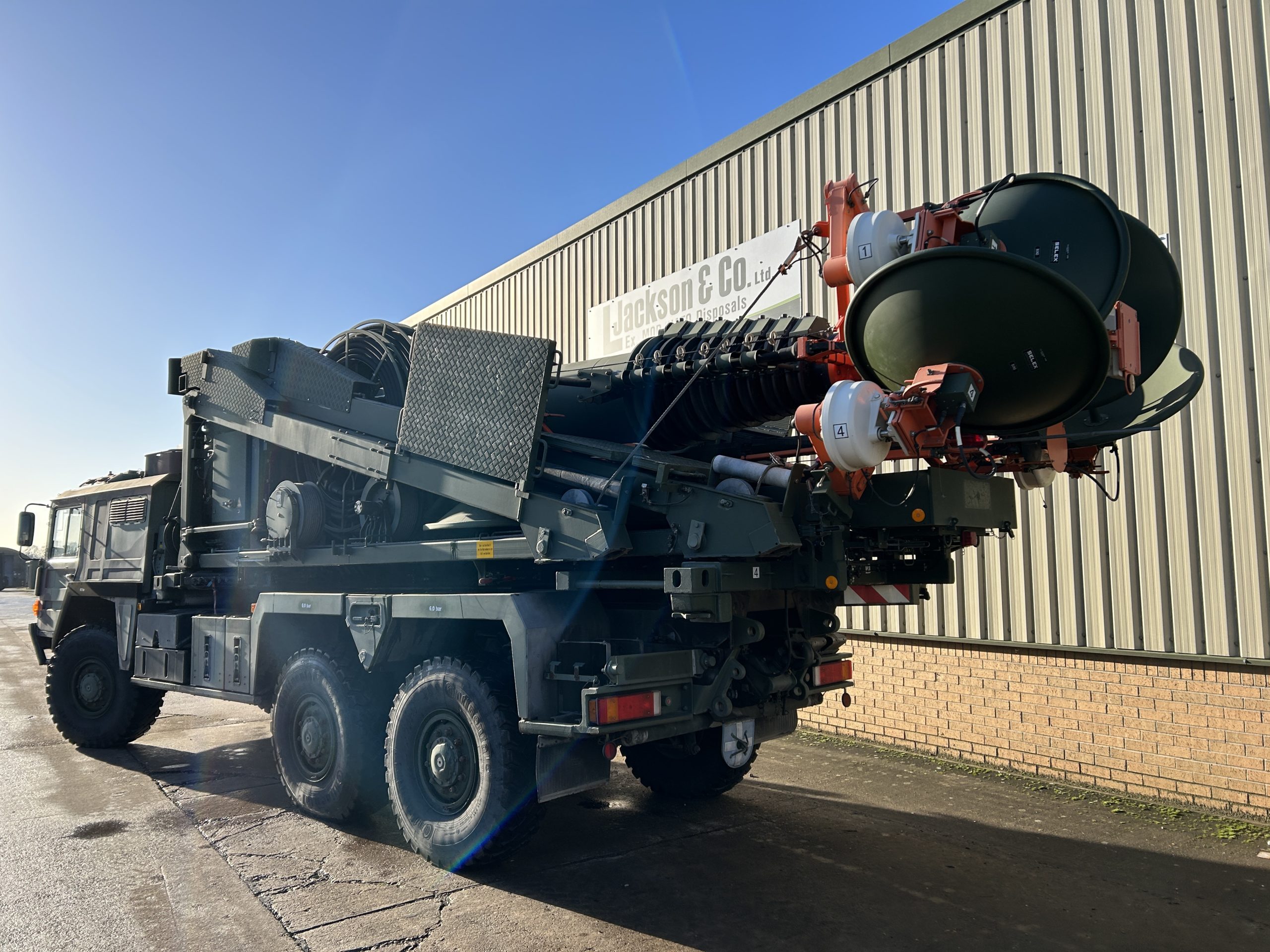

Fitted with a AMA 34 metre antenna mast system

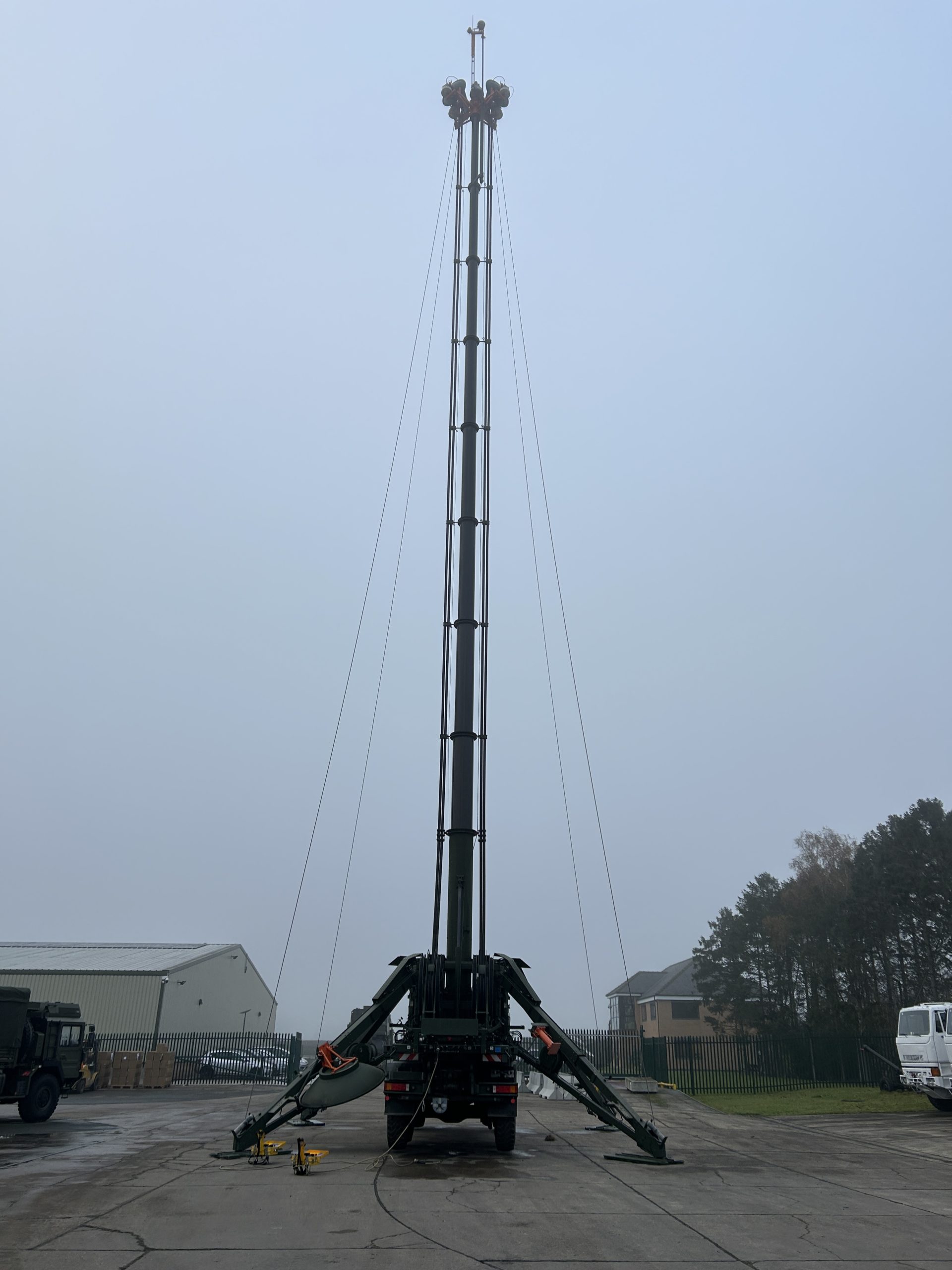

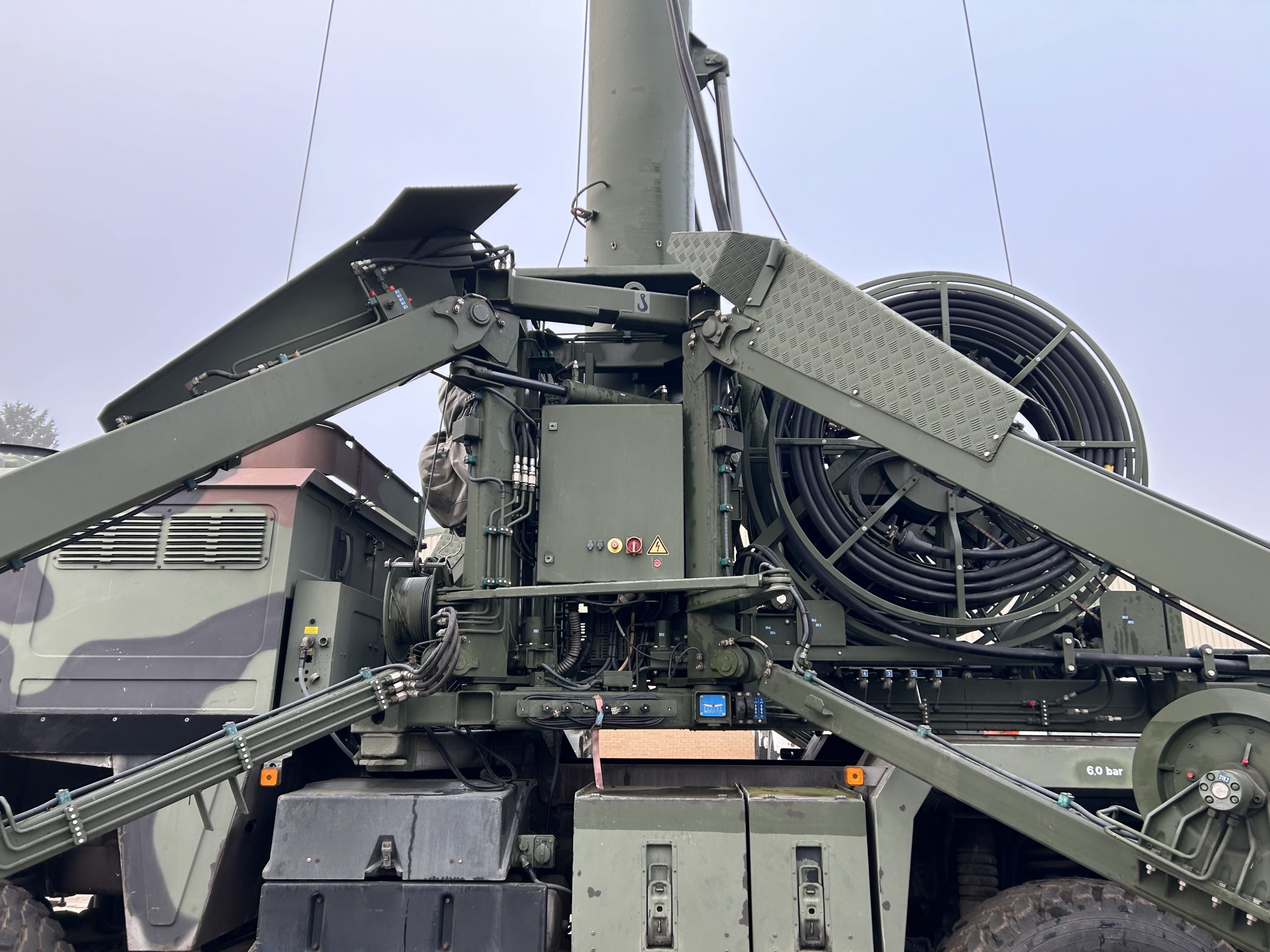

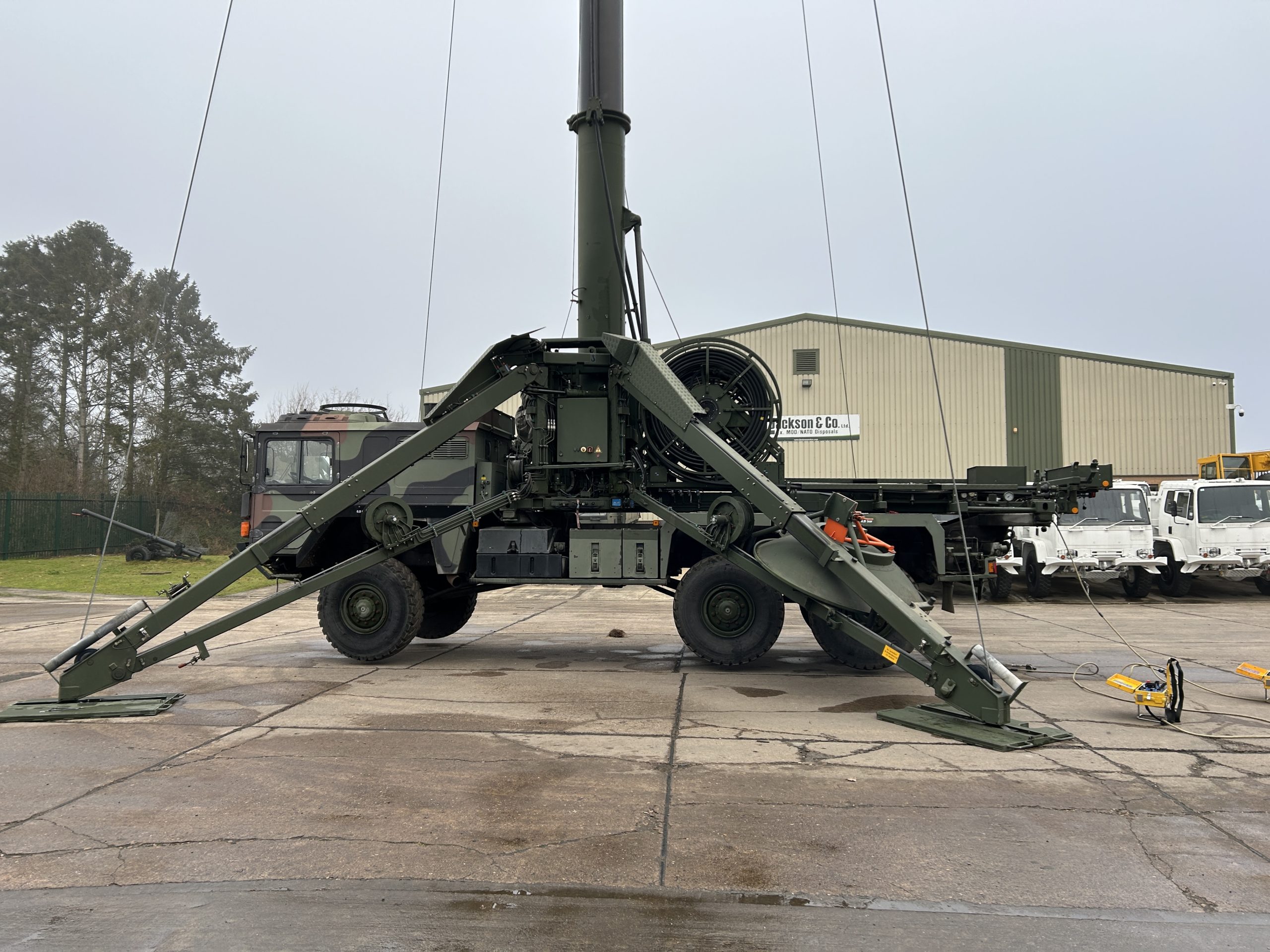

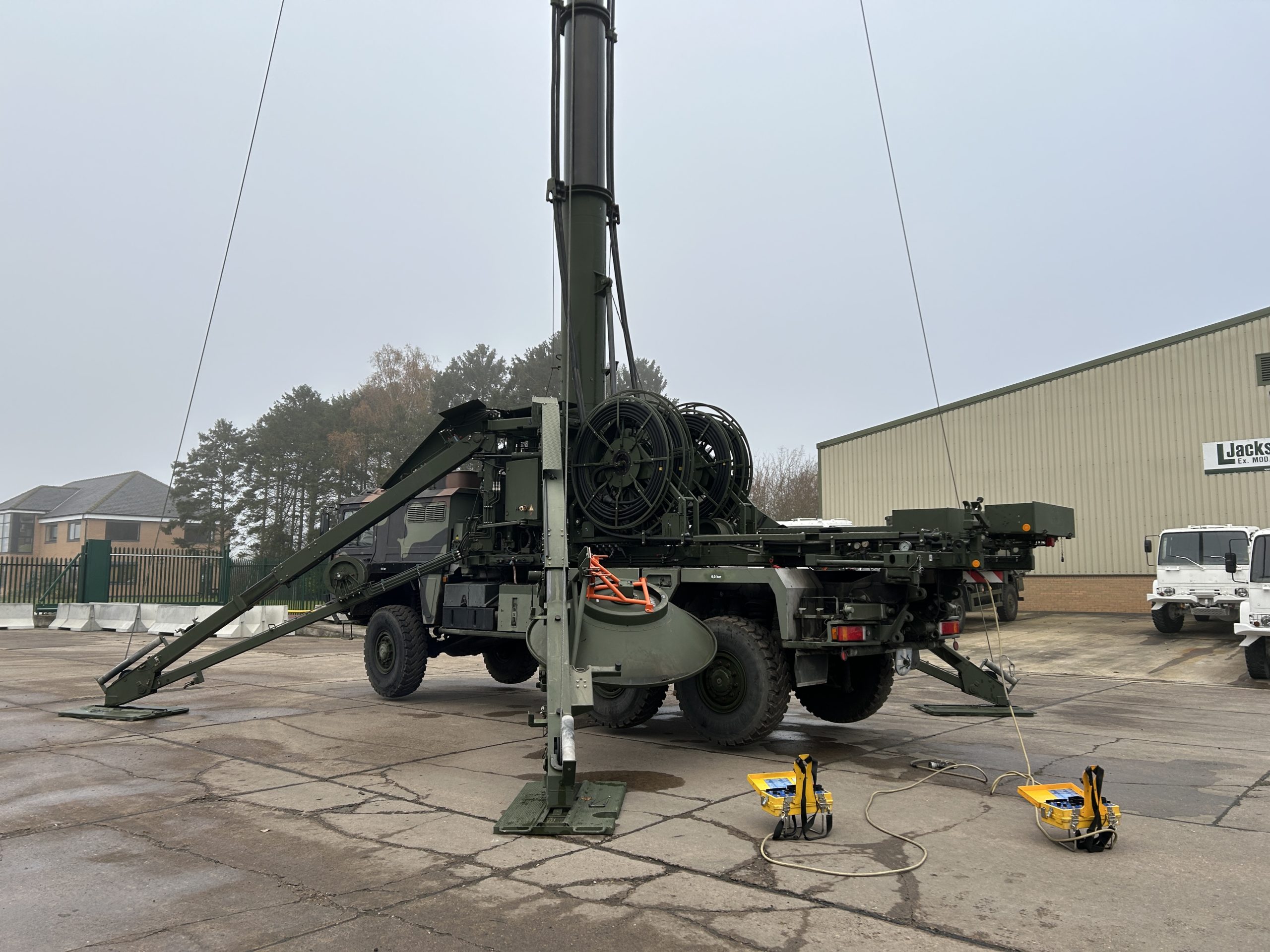

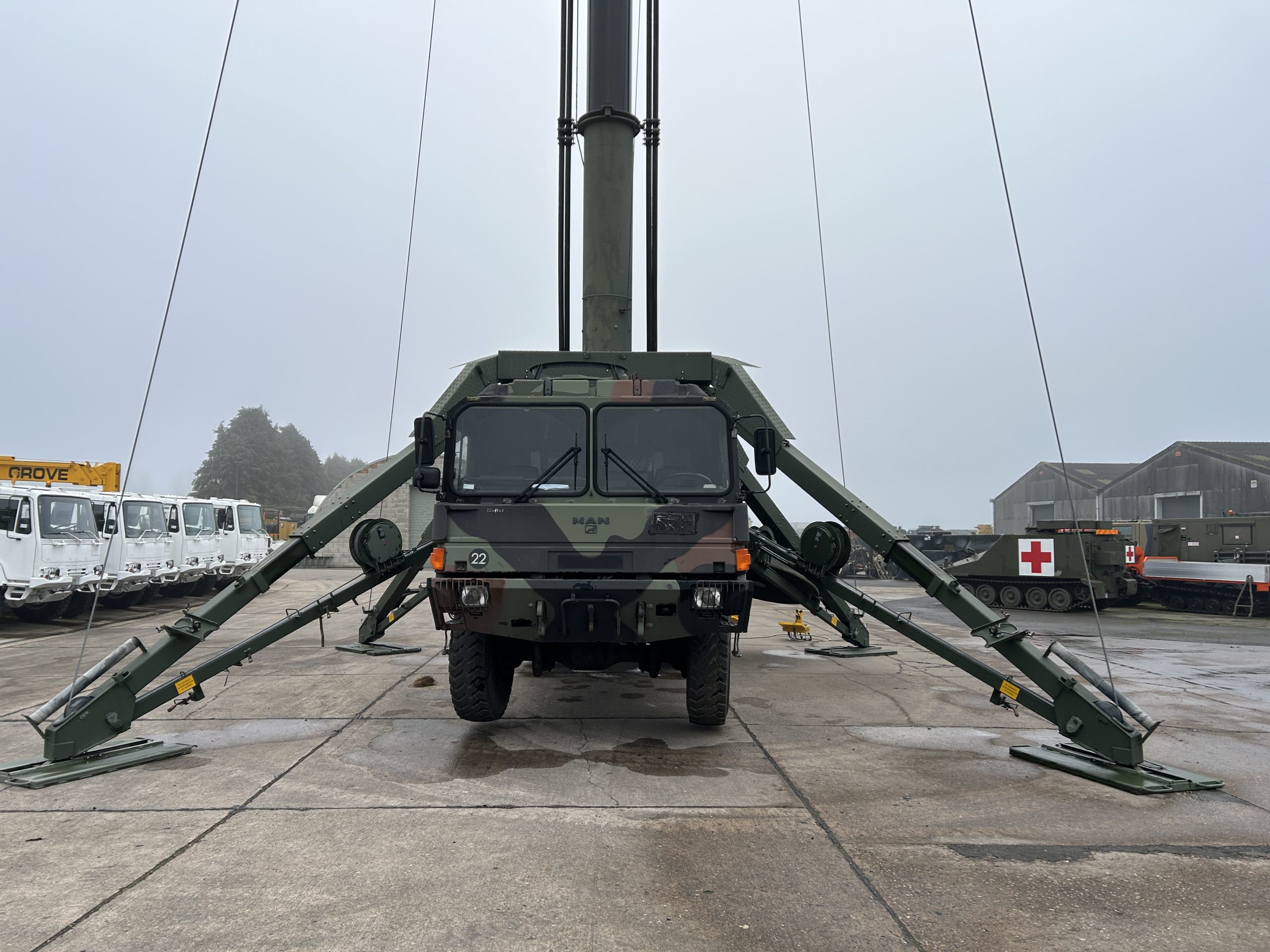

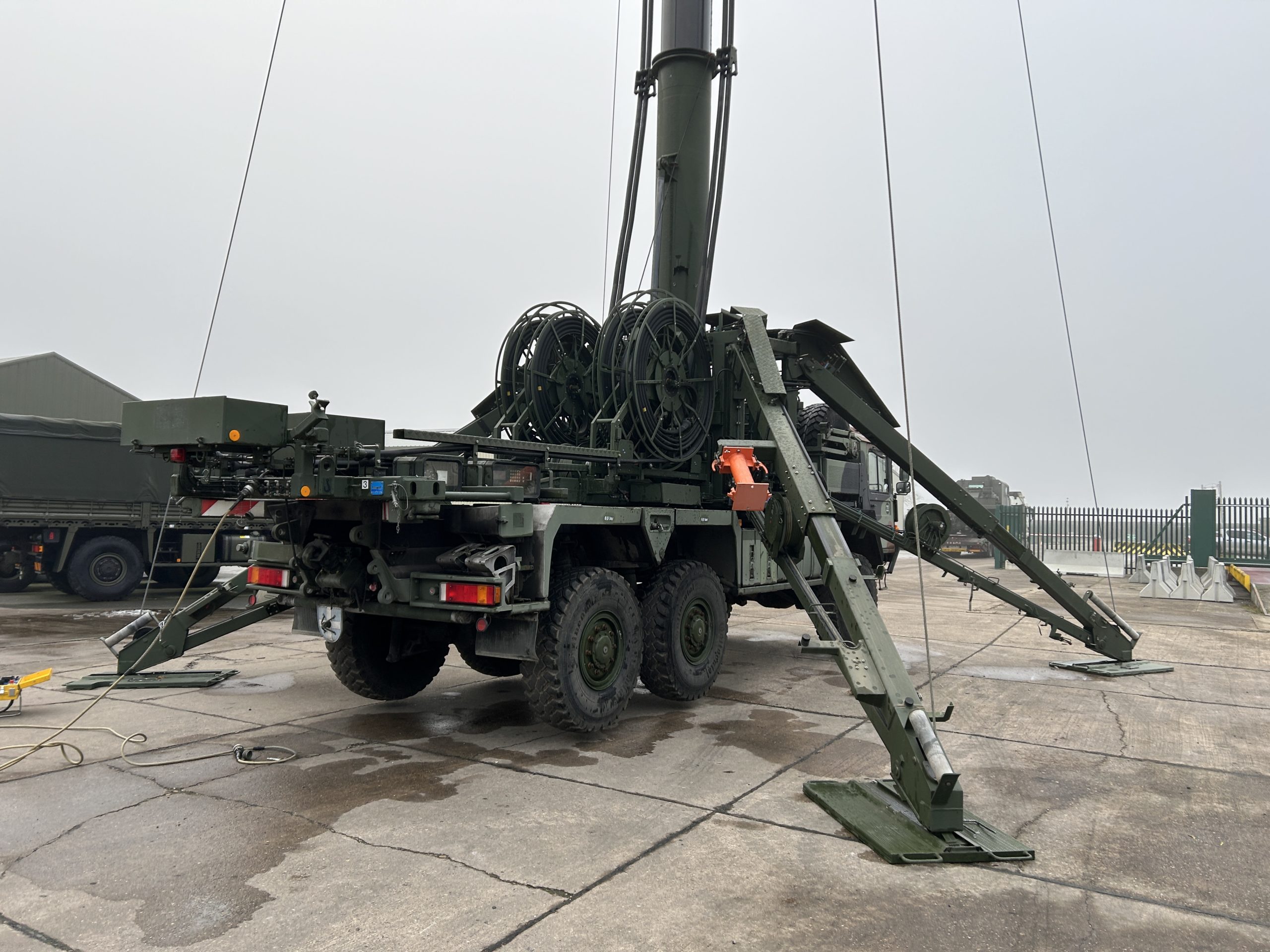

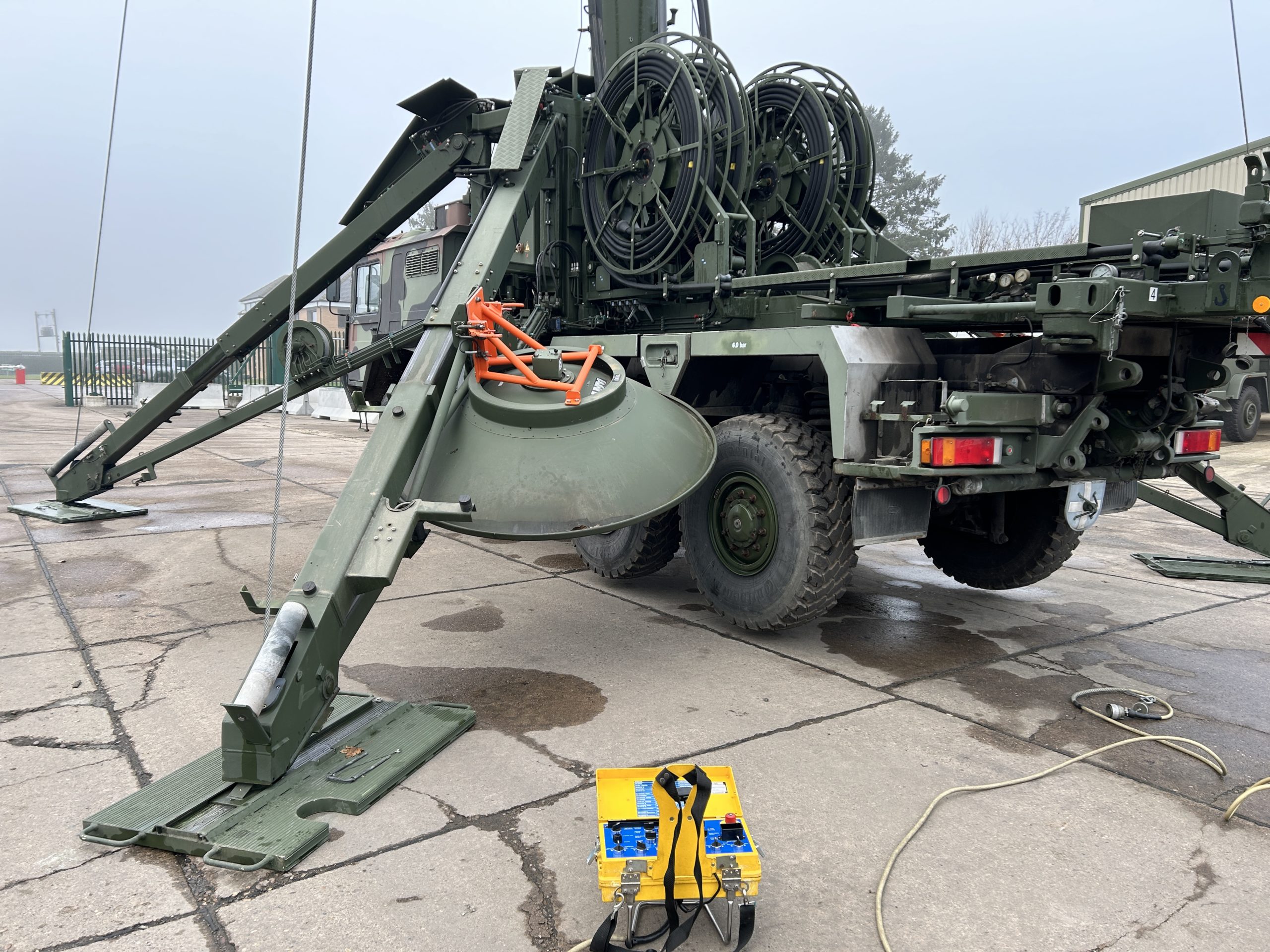

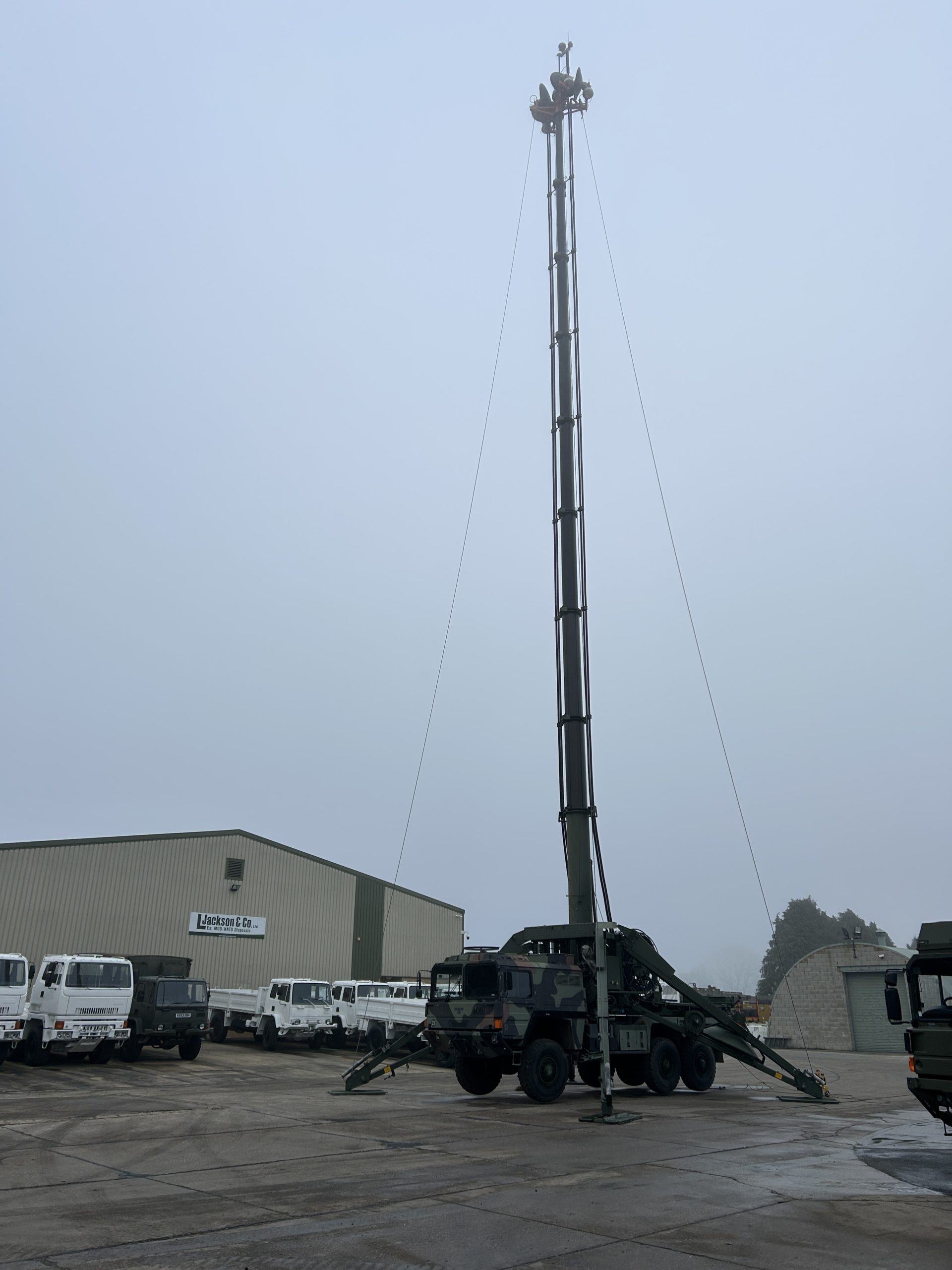

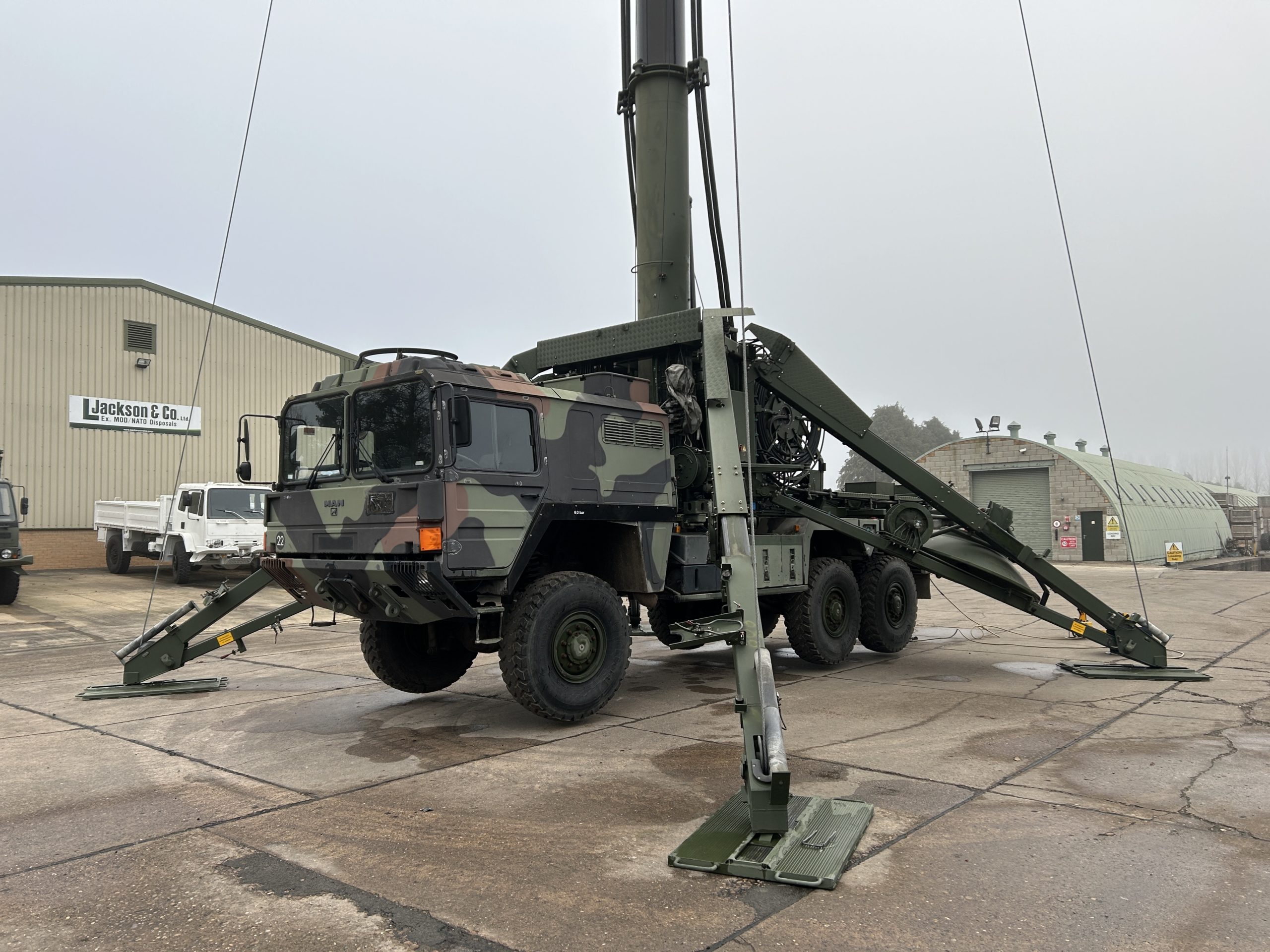

A self-propelled antenna mast system is suitable for mobile and quick use. A MAN truck converted for the military serves as the carrier vehicle; the truck and mast system have a total weight of 22.5 tons. The telescopic mast can be continuously extended to heights between 9.5 and 34 meters. The space required for the structure is 10 x 6 m, the antenna mast system can be leveled up to a terrain inclination of 15° with its hydraulic extensions. The setup requires 3 men who can set up a radio link within 30 minutes.
Assembly and dismantling is possible even under the most difficult conditions with wind speeds of up to 70 km/h (wind force 8). With an antenna mast system installed, operation can be carried out at wind speeds of up to 100 km/h (wind force 10).
