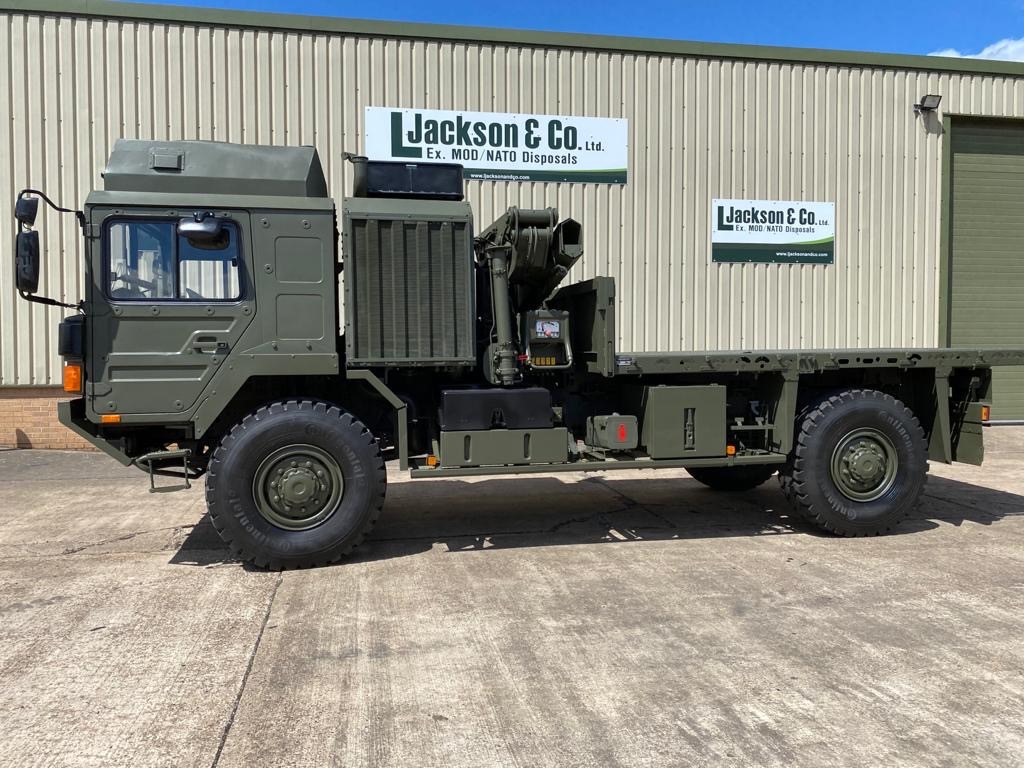

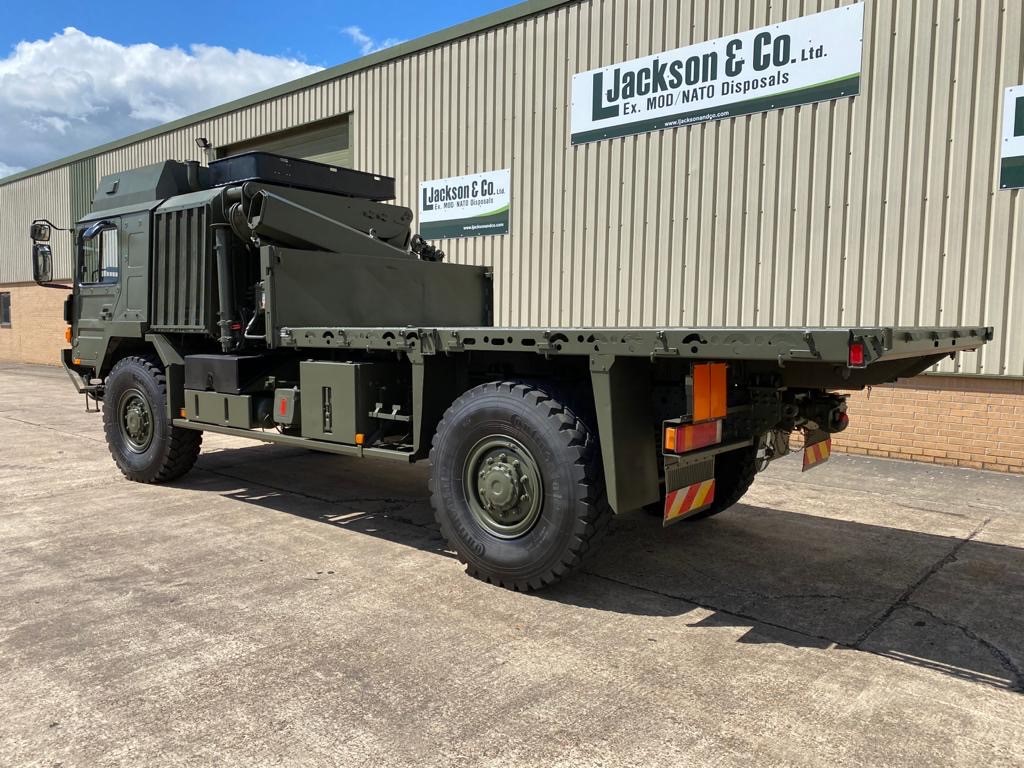

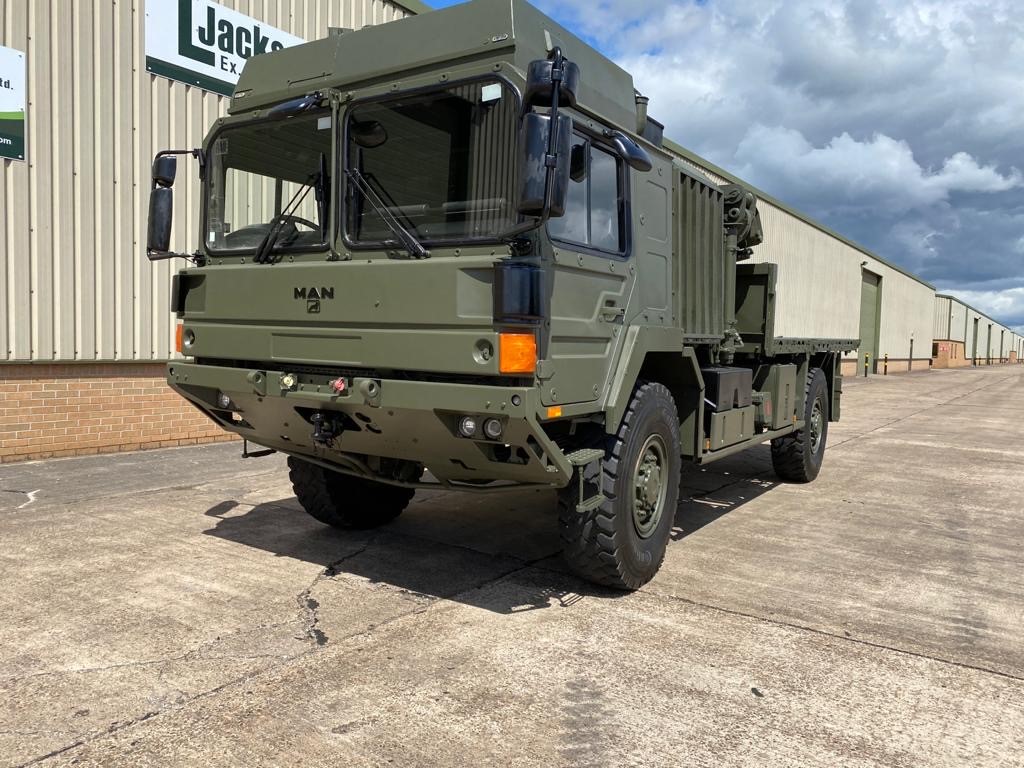

MAN 4×4 HX60 18.330 Crane Truck

Ref: 50322

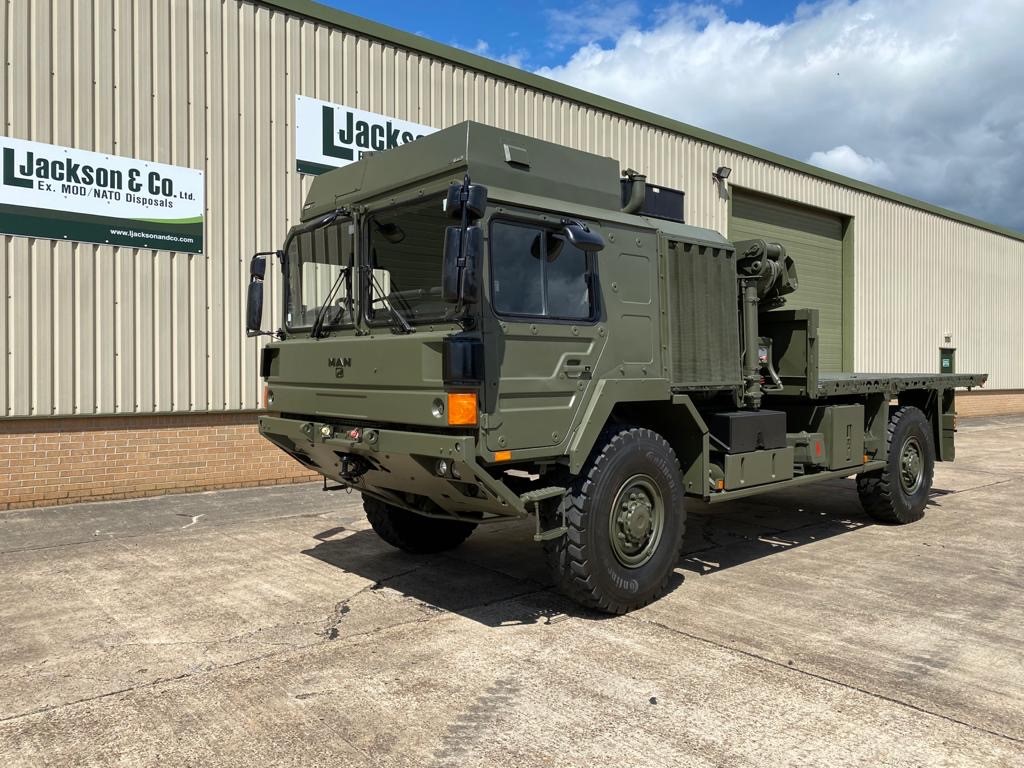

MAN 4x4 HX60 18.330 Crane Truck

Direct from the military these are the latest current in service crane cargo vehicles used by the military today

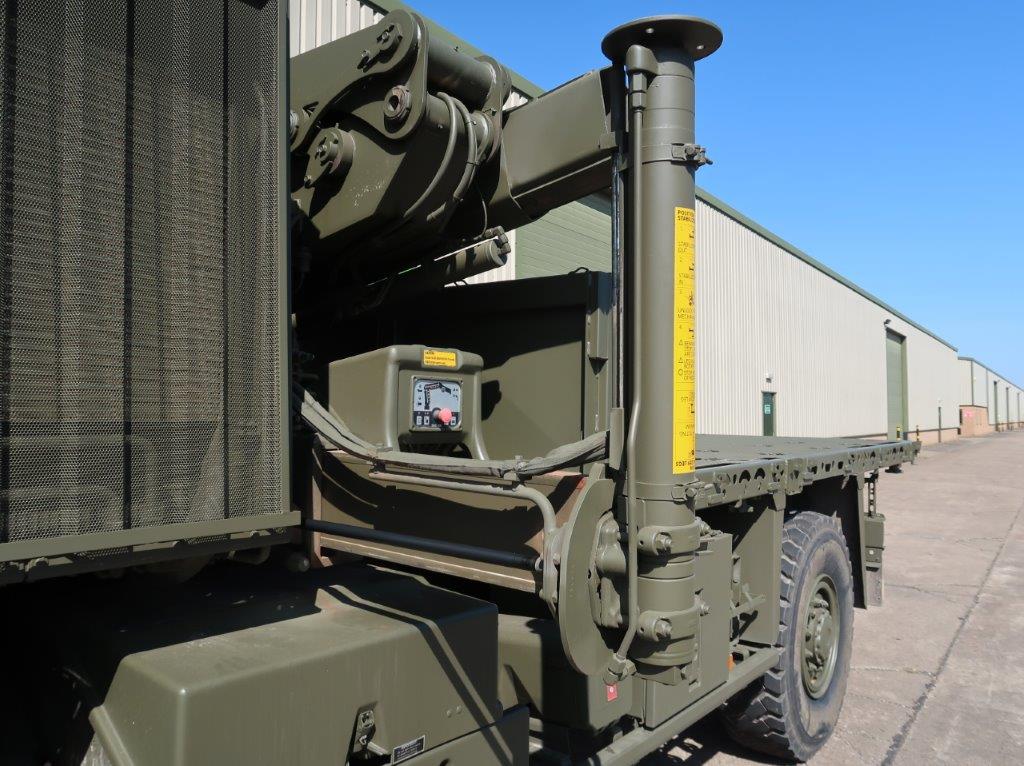

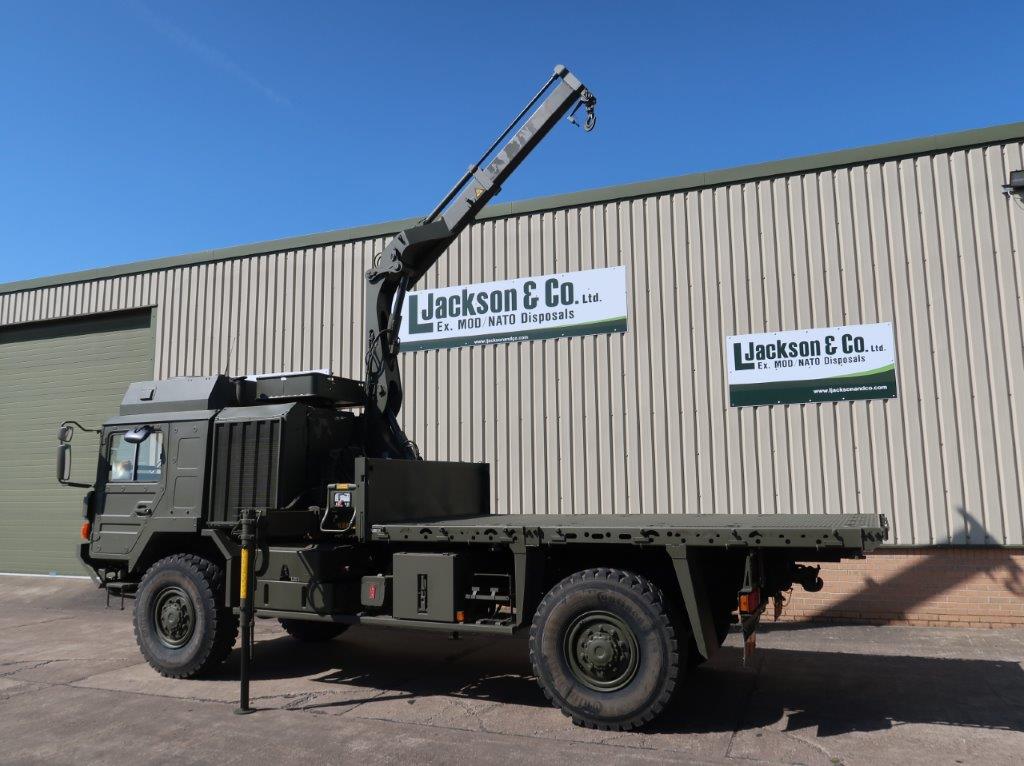

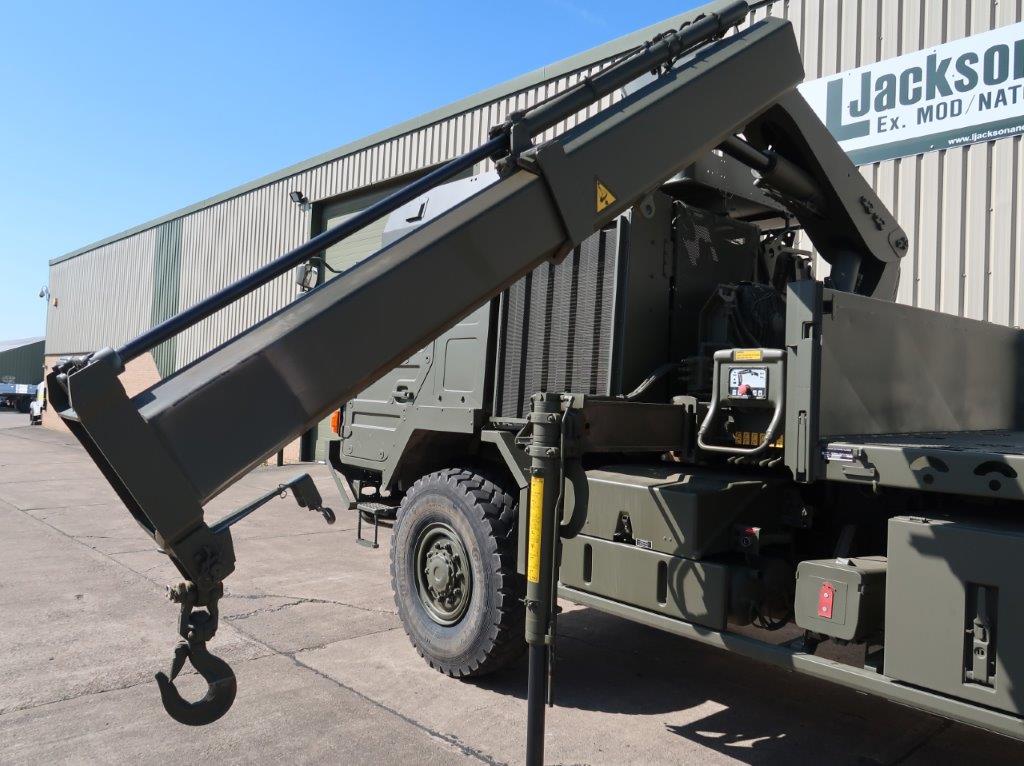

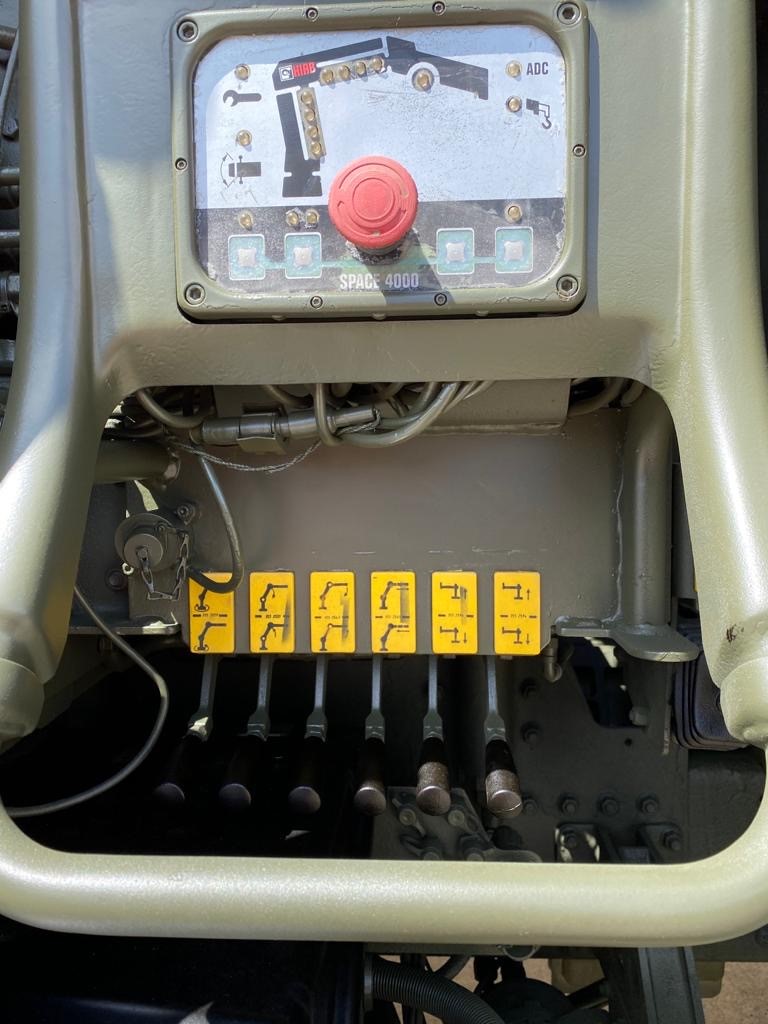

Fitted with a Hiab 088 Hydraulic Crane

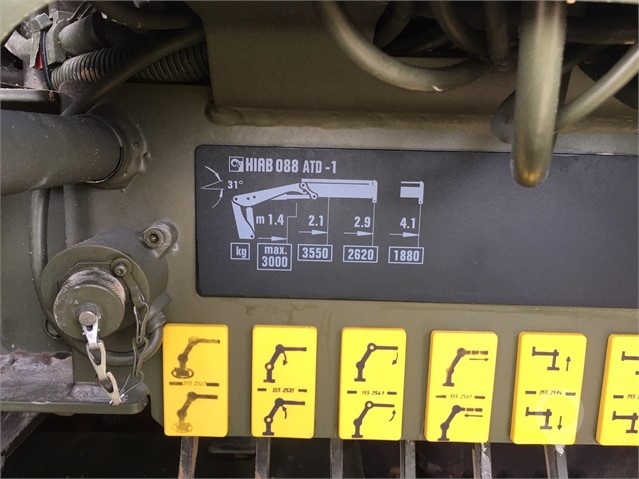

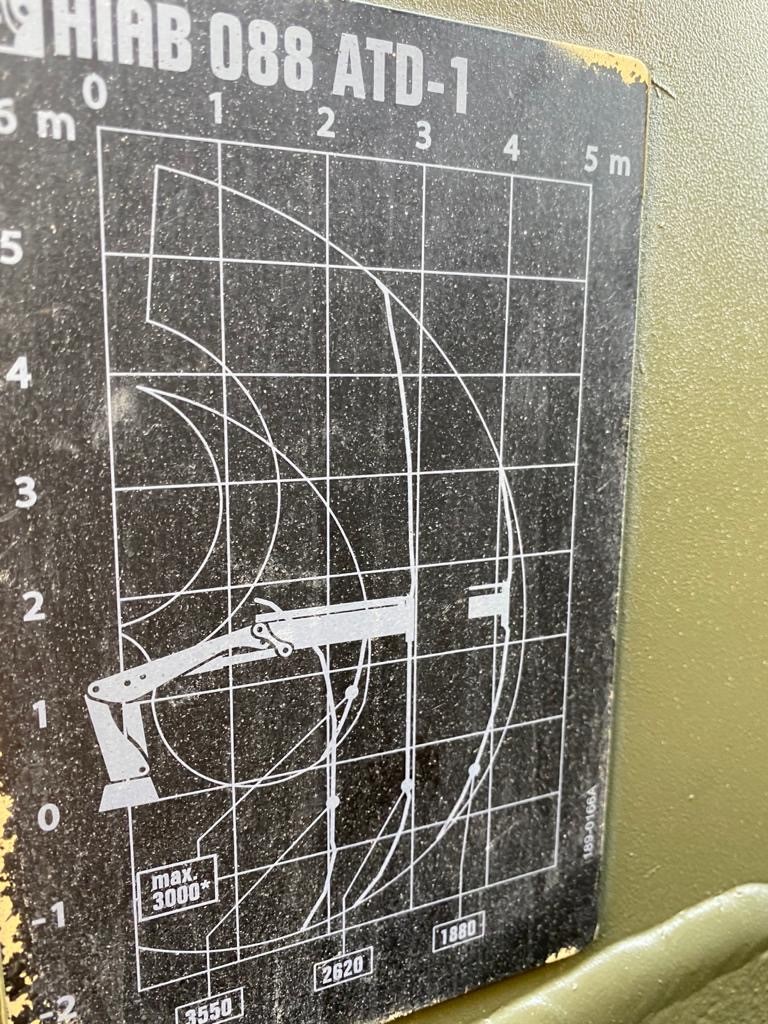

Crane Capacity

3,550Kg @ 2.1M

2,620Kg @ 2.9M

1,880Kg @ 4.1M



Vehicle Specification: -

Configuration: 4x4

Payload: 6 Tons

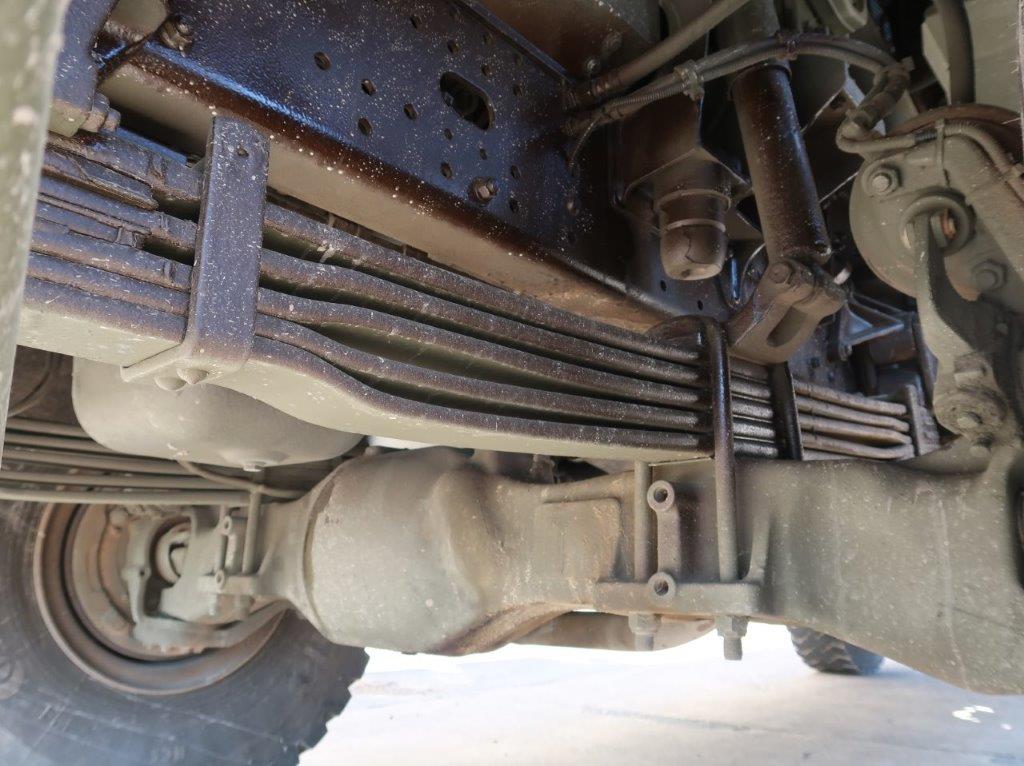

Steel leaf spring suspension

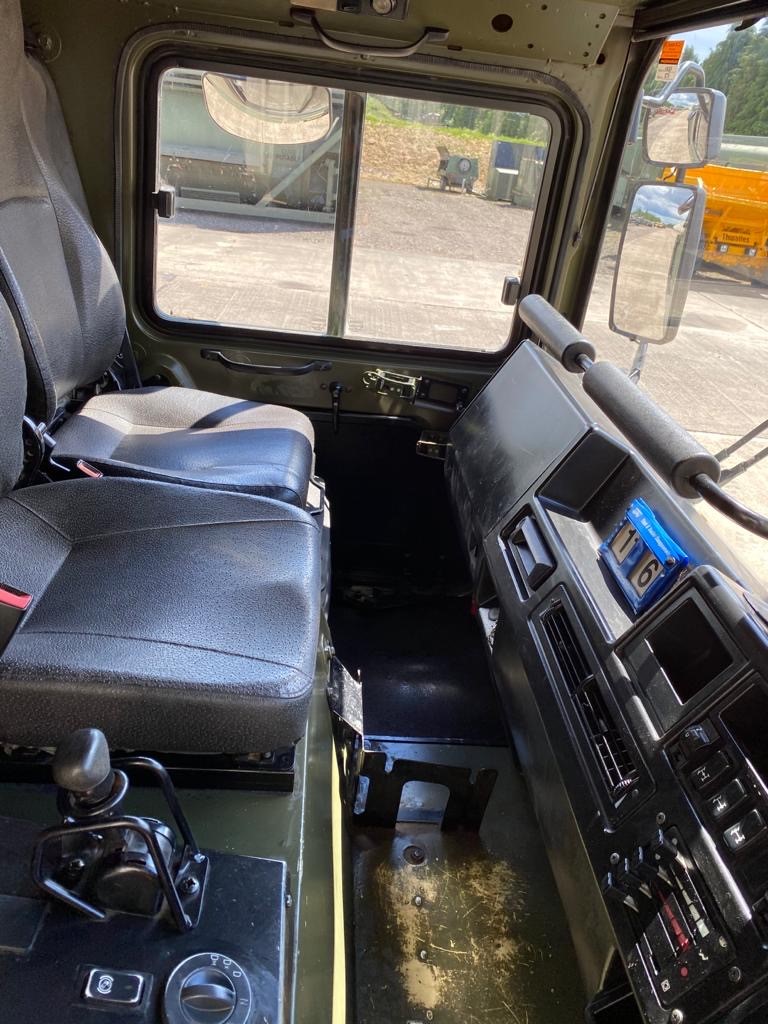

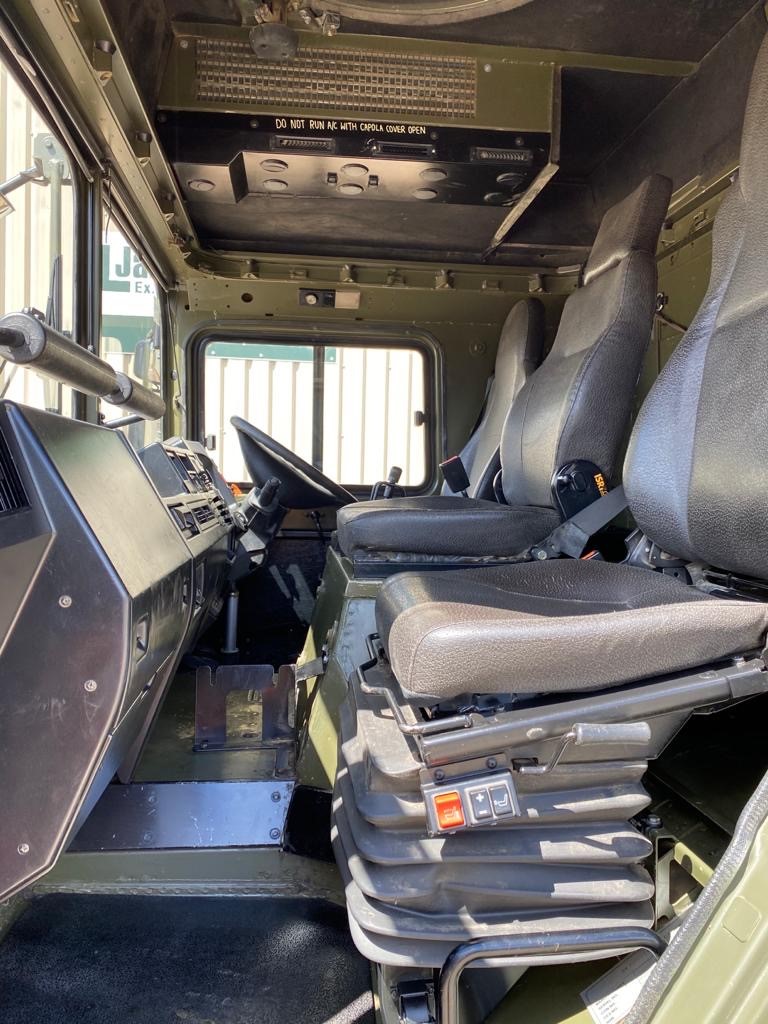

Seats: Driver and two crew air operated

Air Conditioned Cabin

Cab roof hatch

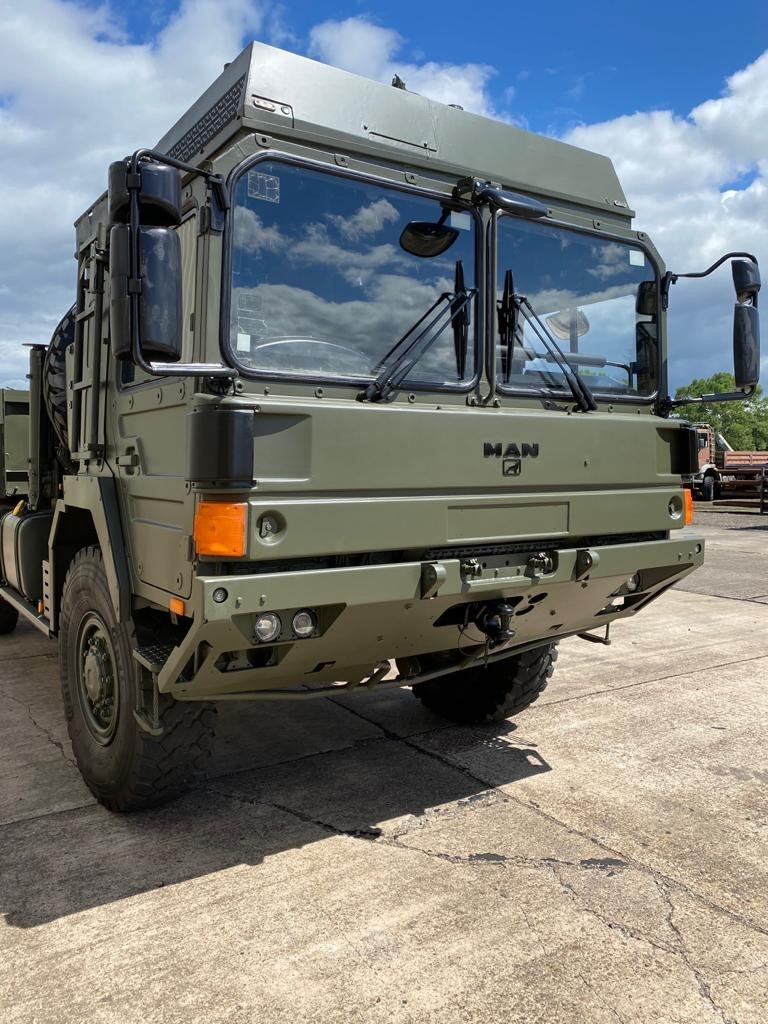

Tilt cab

Heated mirrors

Cruise control

EBS & ABS braking system

(EVB) Exhaust valve brake

Hill start brake

Temperature and time display

Front and rear diff locks and interaxle lock

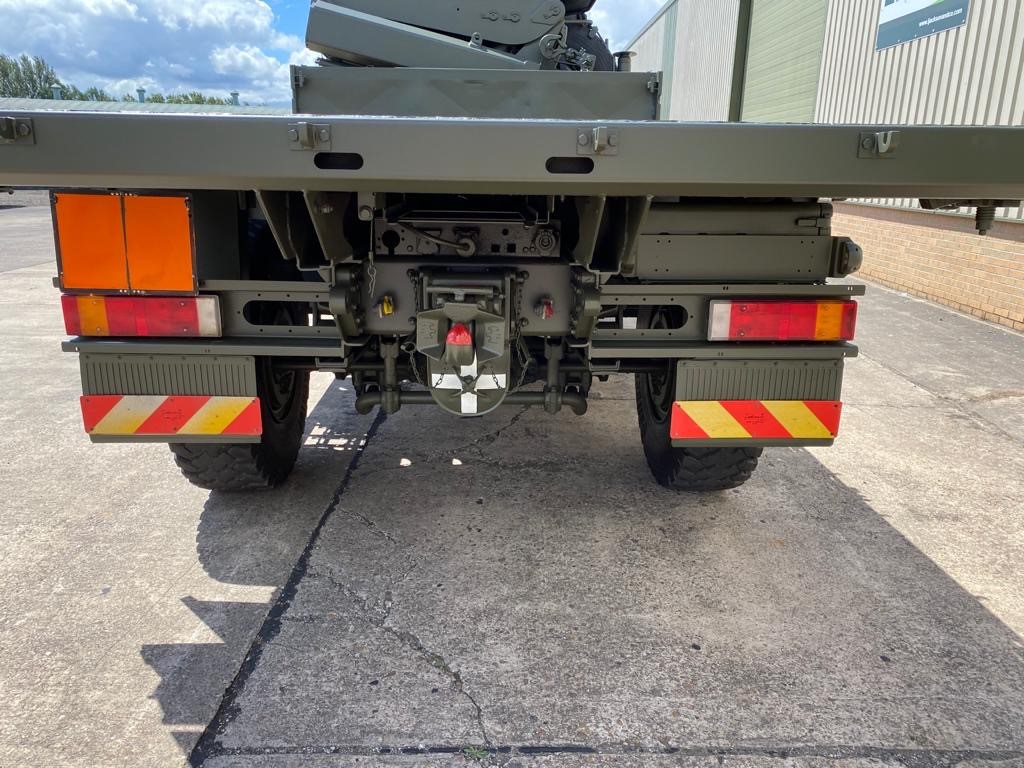

Rear Nato tow hitch, air fittings and lighting socket

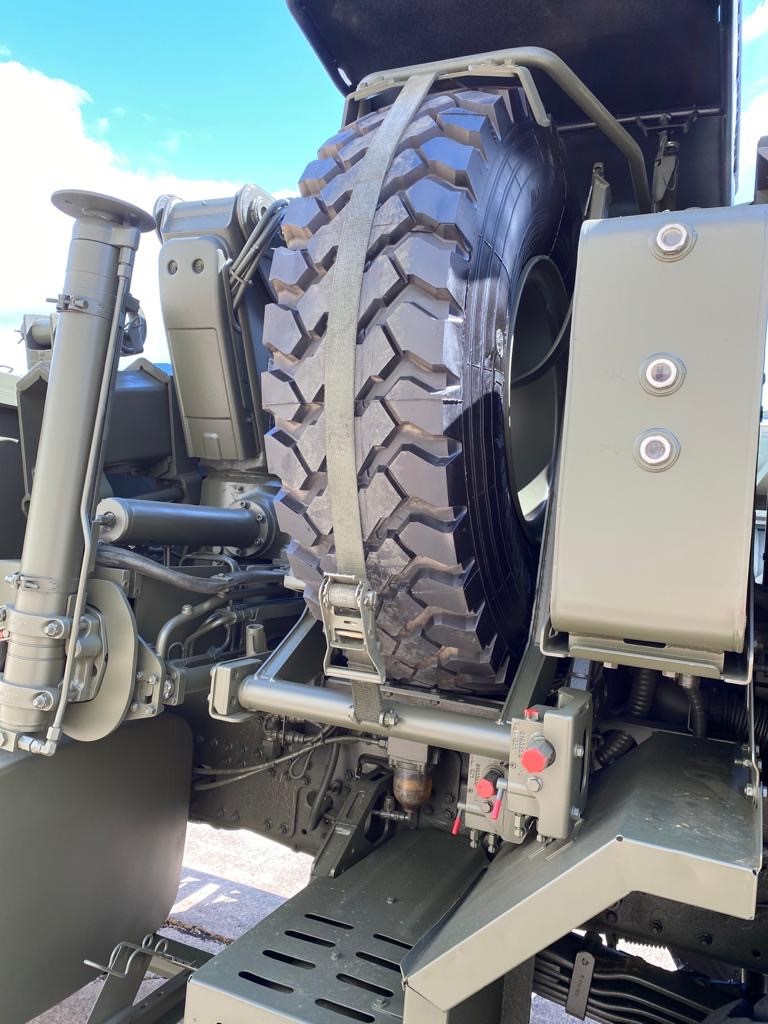

New Spare wheel

On board tyre inflation system

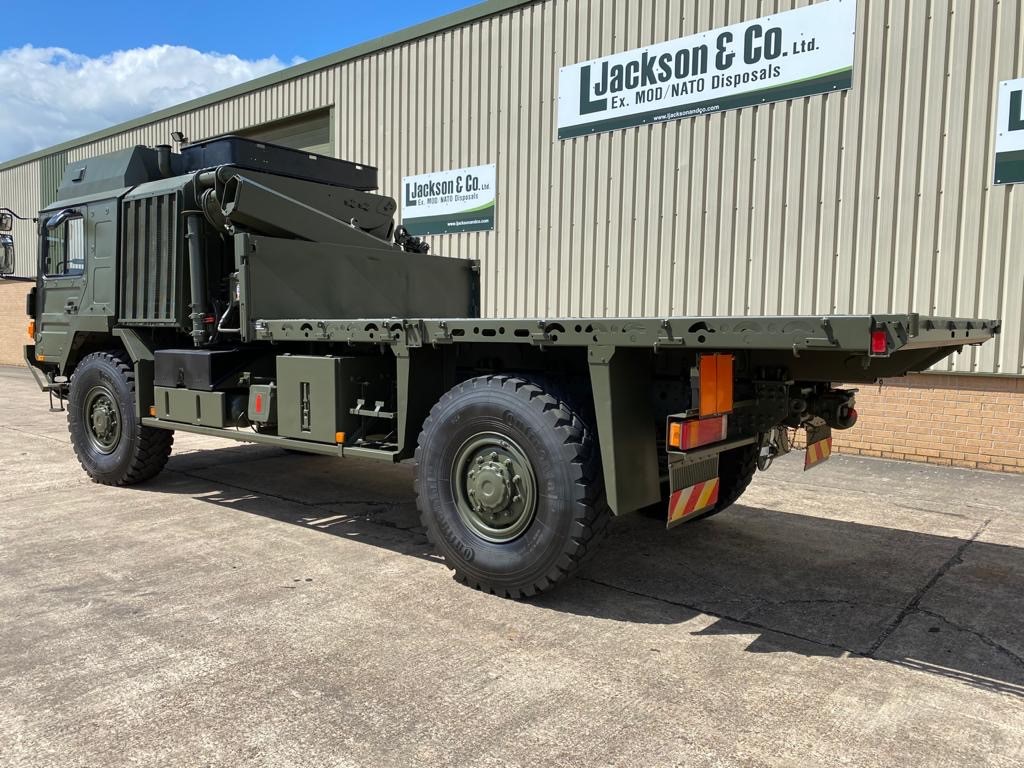

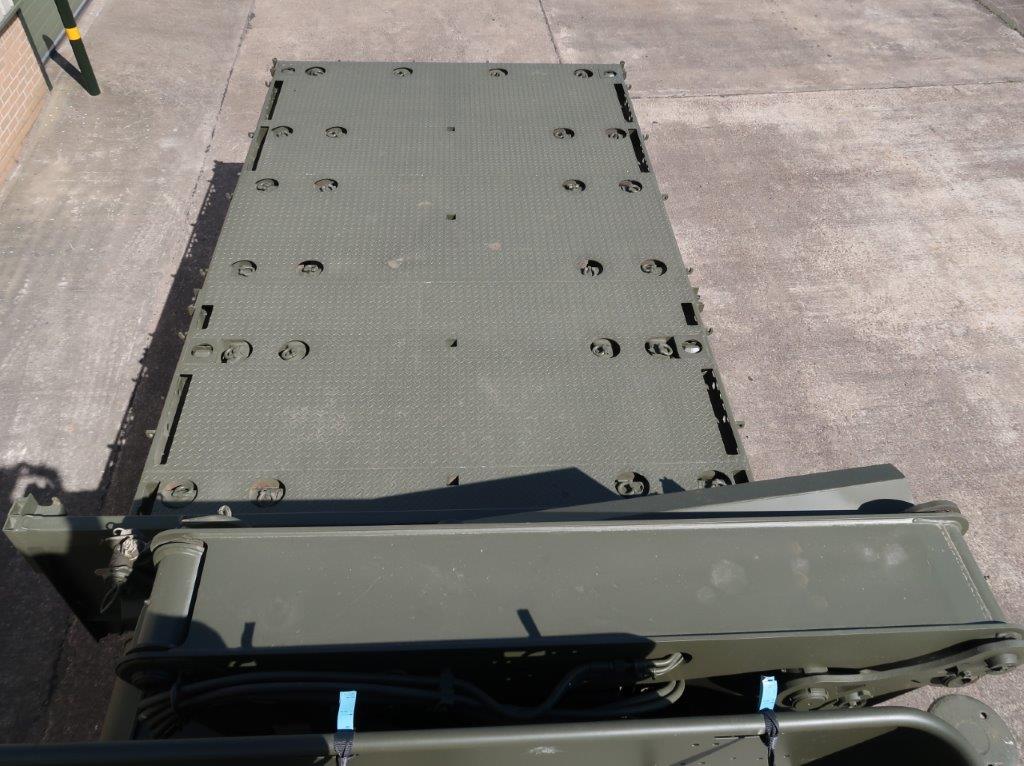

Heavy duty steel body fitted with lashing tie down points as well as a ISO container twist locks. Length 9' width 7'5"

2x Side stowage tool boxes

2x Fire extinguisher boxes

GVW: 18,000Kg

Axle 1: 9,100Kg

Axle 2: 10,250Kg

Body length: 4.25M

Fully wax oiled chassis

These vehicles have been built to the highest standard and are available today from our stock.

We also have other models of the MAN HX60 in stock to include drop side cargo models with canopy, troop carriers, and winch trucks

QTY Available: 1

£ POA

Category Crane Trucks
Manufacturer MAN
Engine MAN D0836 LFG50 Euro 4 6 cylinder 326HP
Gearbox ZF AS 1210 MAN TipMatic
Brakes Electronically controlled, dual circuit, air operated
Steering ZF 8098 Servocom

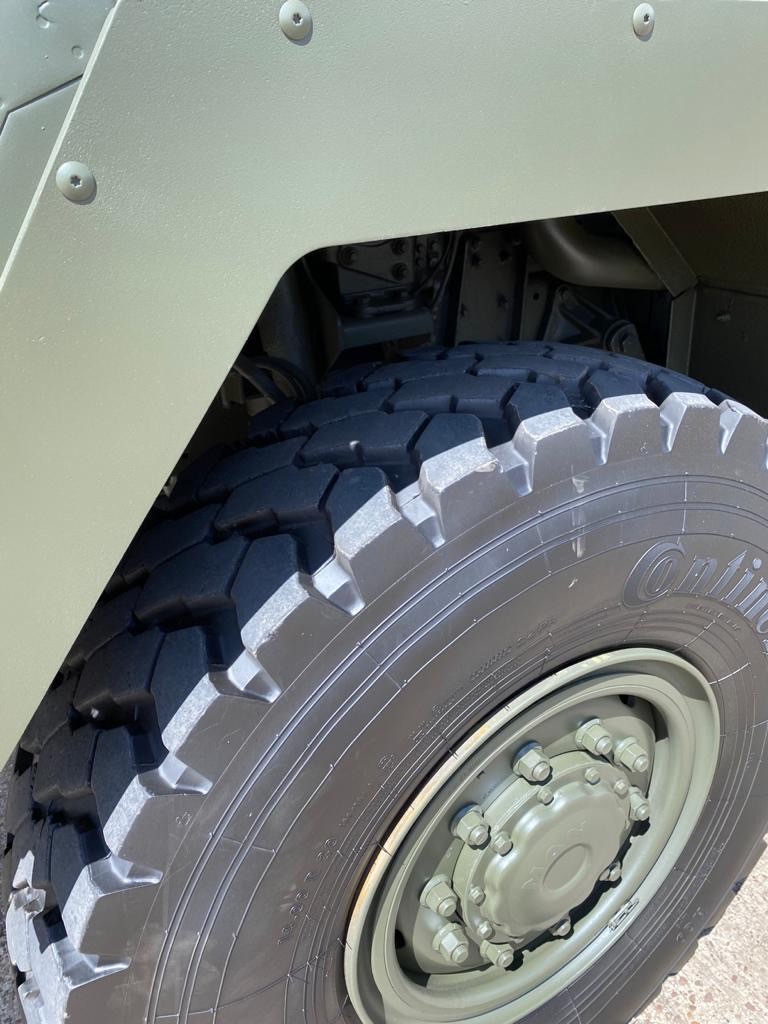

Tyres Continental 14.00R20 22 Ply
Max Load 6,000 Kg
Electrics 24 volts
Length 8.1M
Height 3.05M
Width 2.55M
GVW
Hrs_Kms 10,557 Kilometres
Date into service
Year of manufacture
Qty Available 1
Export requirements more SIEL Licence Required
