Drops 20ft ISO Flat Racks

Ref: 50316

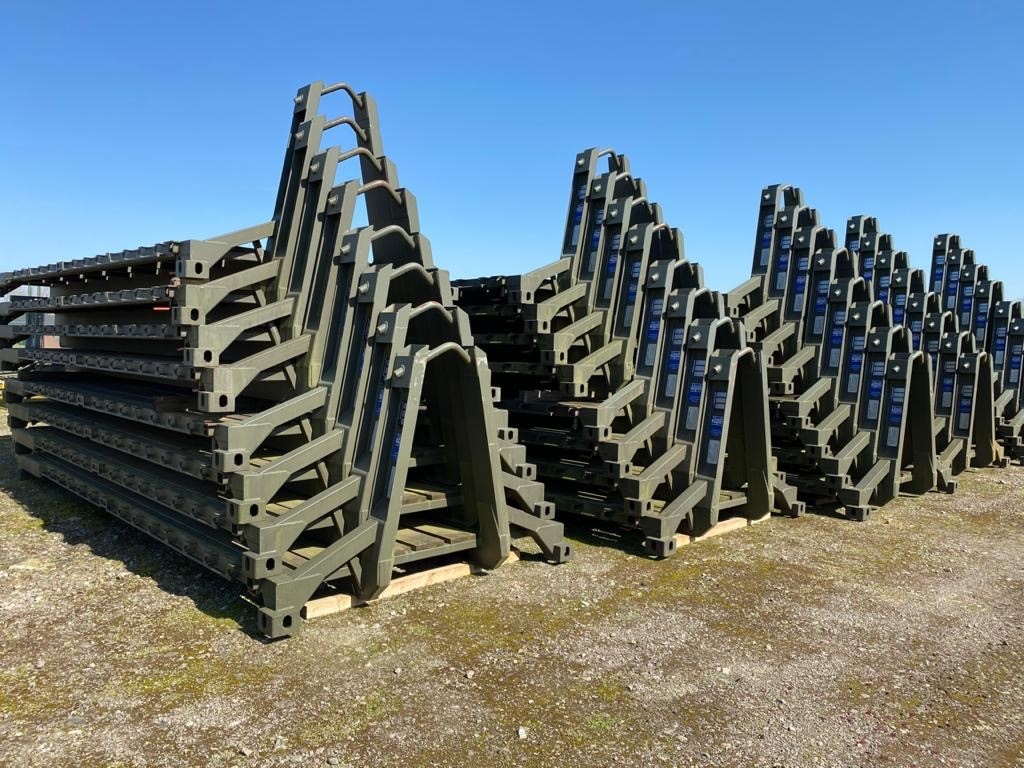

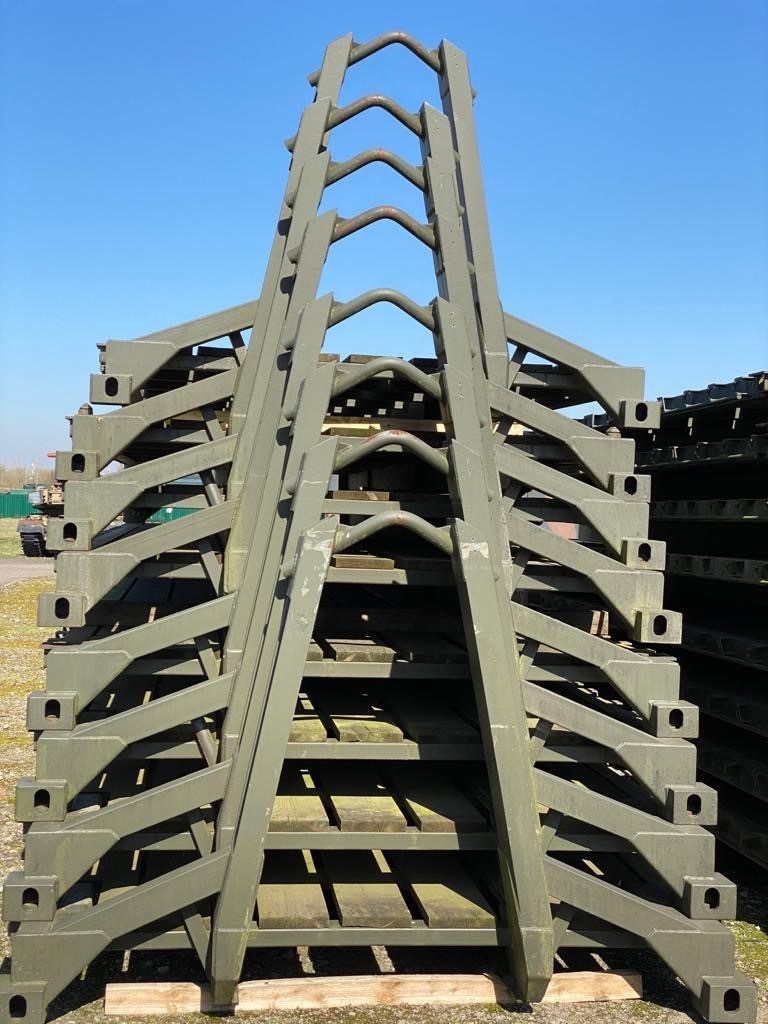

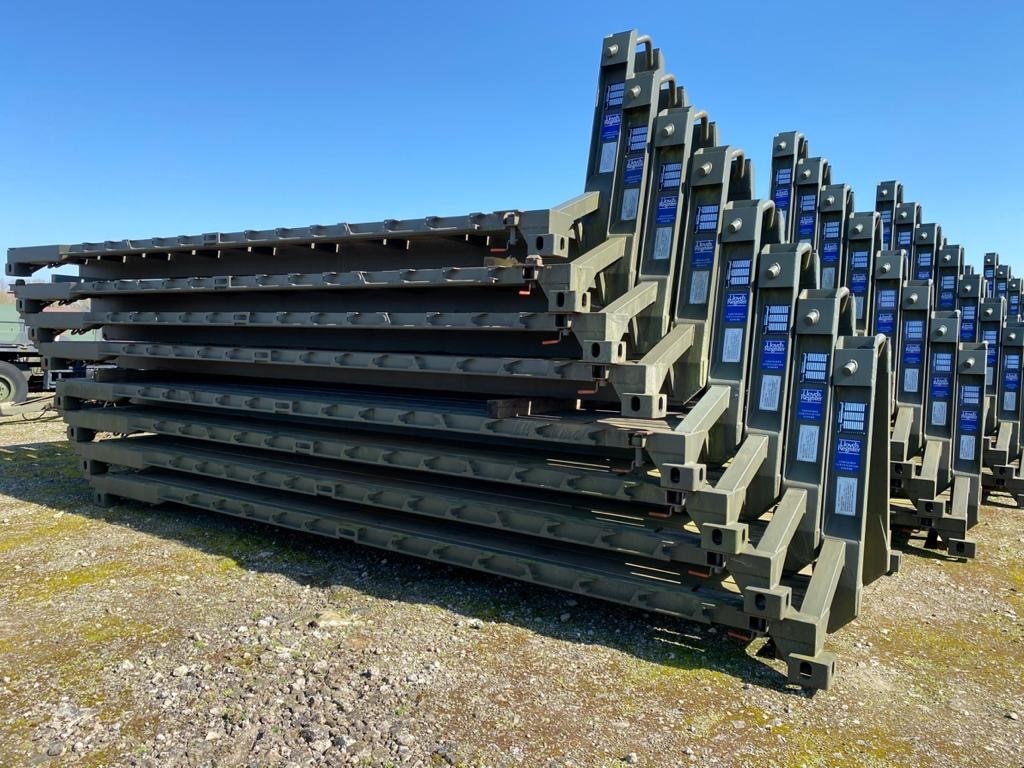

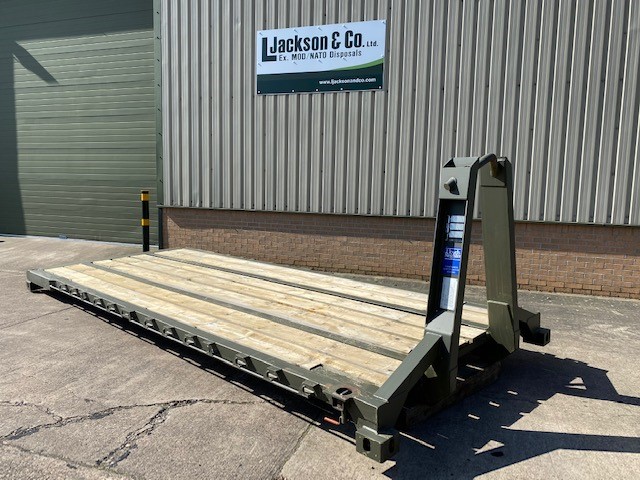

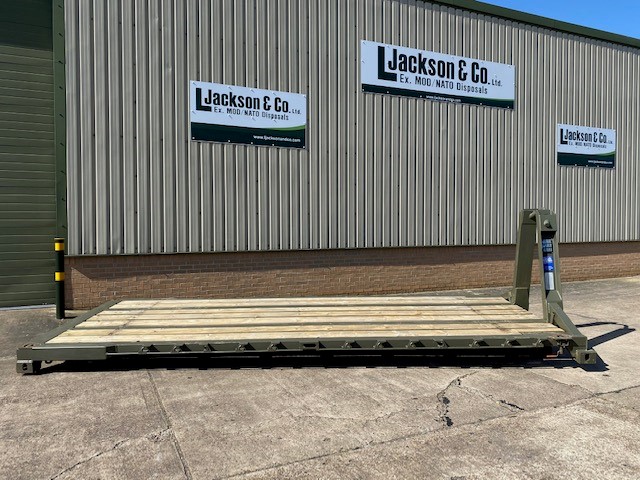

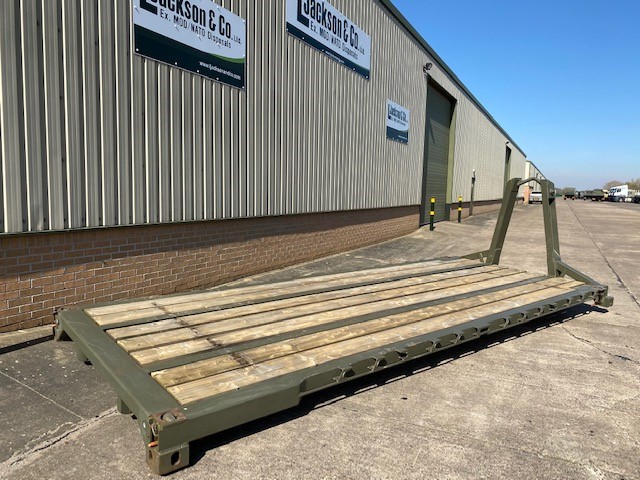

Just arrived direct from the MoD, in unused condition. 20ft ISO Flat Racks.

They can carry standard cargo, or 20ft ISO containers utilising the deployable integrated twist locks.

They feature:

Roping/load restraint points along full length of siderails

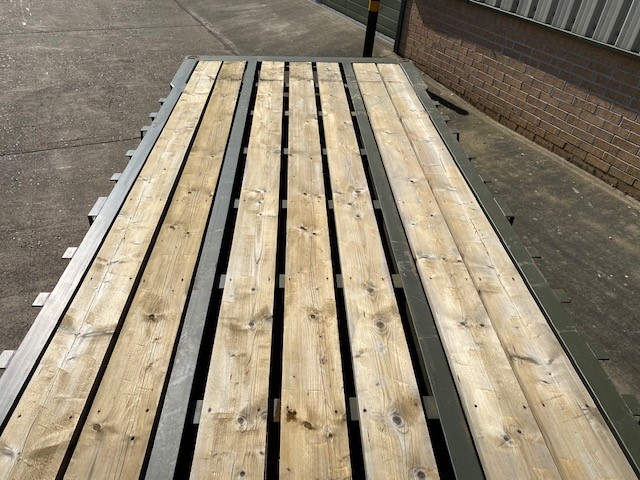

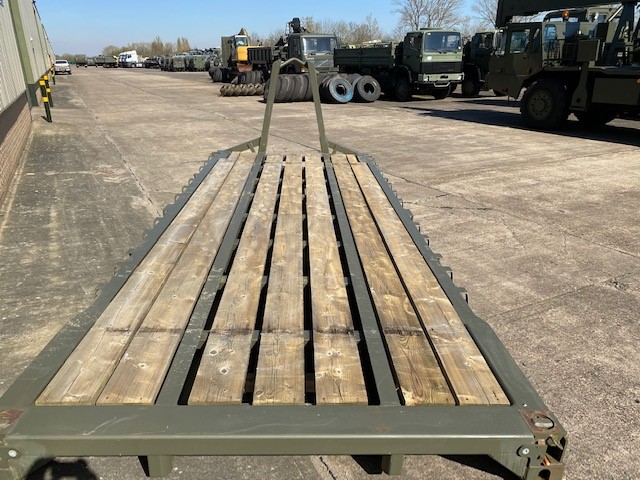

Heavy duty wooden boarding

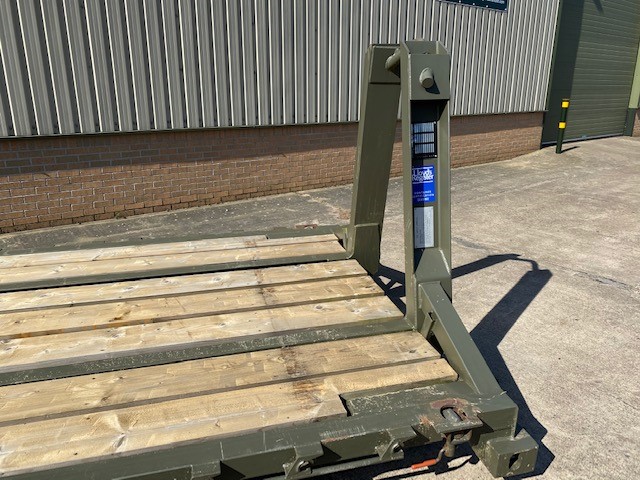

Easy pickup A Frame - Provided the hook of the load handling system is positioned within the capture area of the “A” frame when loading it will never fail to safely engage.

Front upward facing twist locks, with retractable rear ISO twist locks

Downward facing ISO corner castings

UPN internal subframe

Mechanical stop for locking to bed of truck

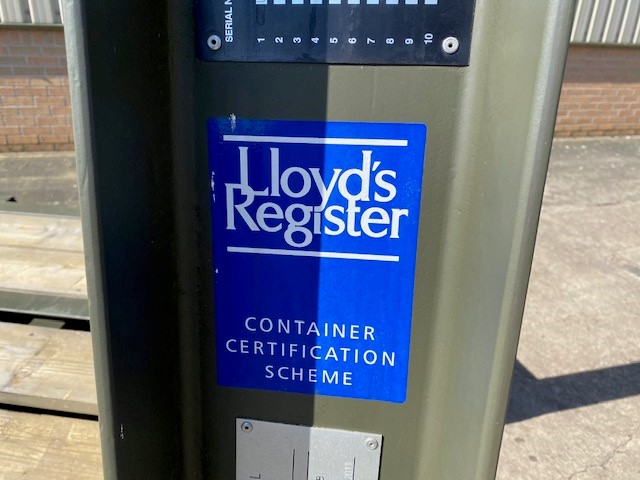

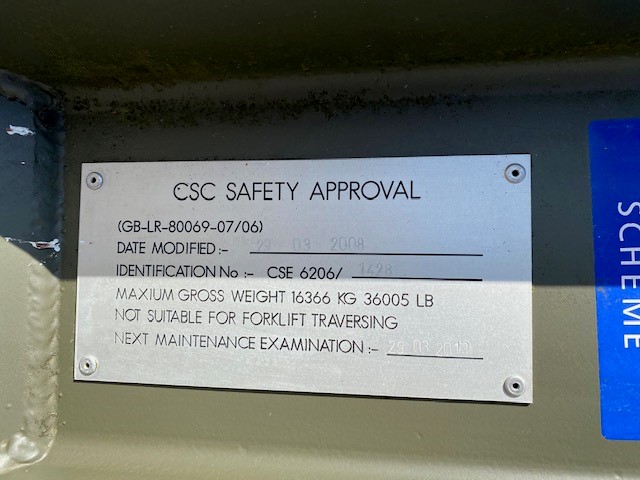

Lloyds/CSC plated

16,366kg Maximum Gross weight capacity

Dimensions (Approx.)

Length:                6.05m (Overall – ISO closed)

Bed Length:        5.87m

Overall length:  6.25m (ISO leg extended)

Width:                 2.44m (Overall)

Width of bed:    2.40m

Height:                1.63m (Floor to top of capture hook)

Height:                 1.35m (Bed to top of capture hook)

Weight:               1,500kg (Approx)

Rail Width:          0.9m (Internal) 1.06m (outside subframe)

QTY Available: 100

£ POA

Category Drops Bodies
Manufacturer
Engine
Gearbox
Brakes
Steering
Tyres
Max Load
Electrics
Length 6.05M
Height
Width 2.44M
GVW
Hrs_Kms
Date into service
Year of manufacture
Qty Available 100
Export requirements more SIEL Licence Required
